15.2.2 Padlock Locking device for shutter

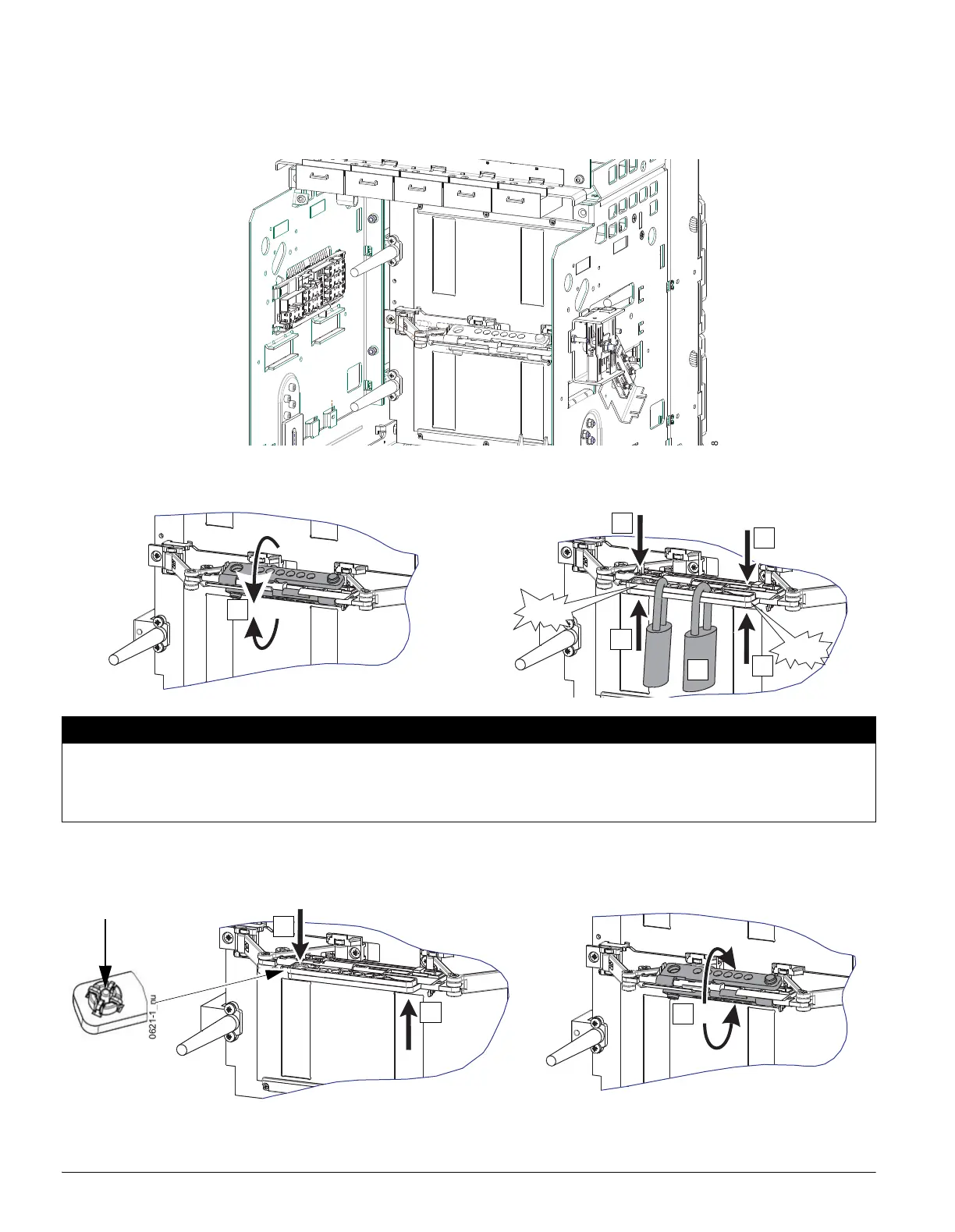

The shutter can be locked with padlocks. The padlocking provision can be fitted with up to 6 locks with 3/8“ bracket diameter at once.
Locking the shutter
 Field installation of shutter (page 18-2)
Opening the padlock locking device
To unlatch the padlock locking device, press the latching pins (left and right).
NOTICE
Damage to shutter.
Applying too many padlocks may damage the shutter mechanism.
The maximum total weight of the padlocks must not exceed 2.2 lbs (1 kg).
0620_nu
1
click
click
0621_nu
2
2
2
3
2
0621-2_nu
1
1
0620-2_nu
2
