DDRESS

ABLE

ETTINGS

9-2

Web – Click Address Table, Static Addresses. Specify the interface, the

MAC address and VLAN, then click Add Static Address.

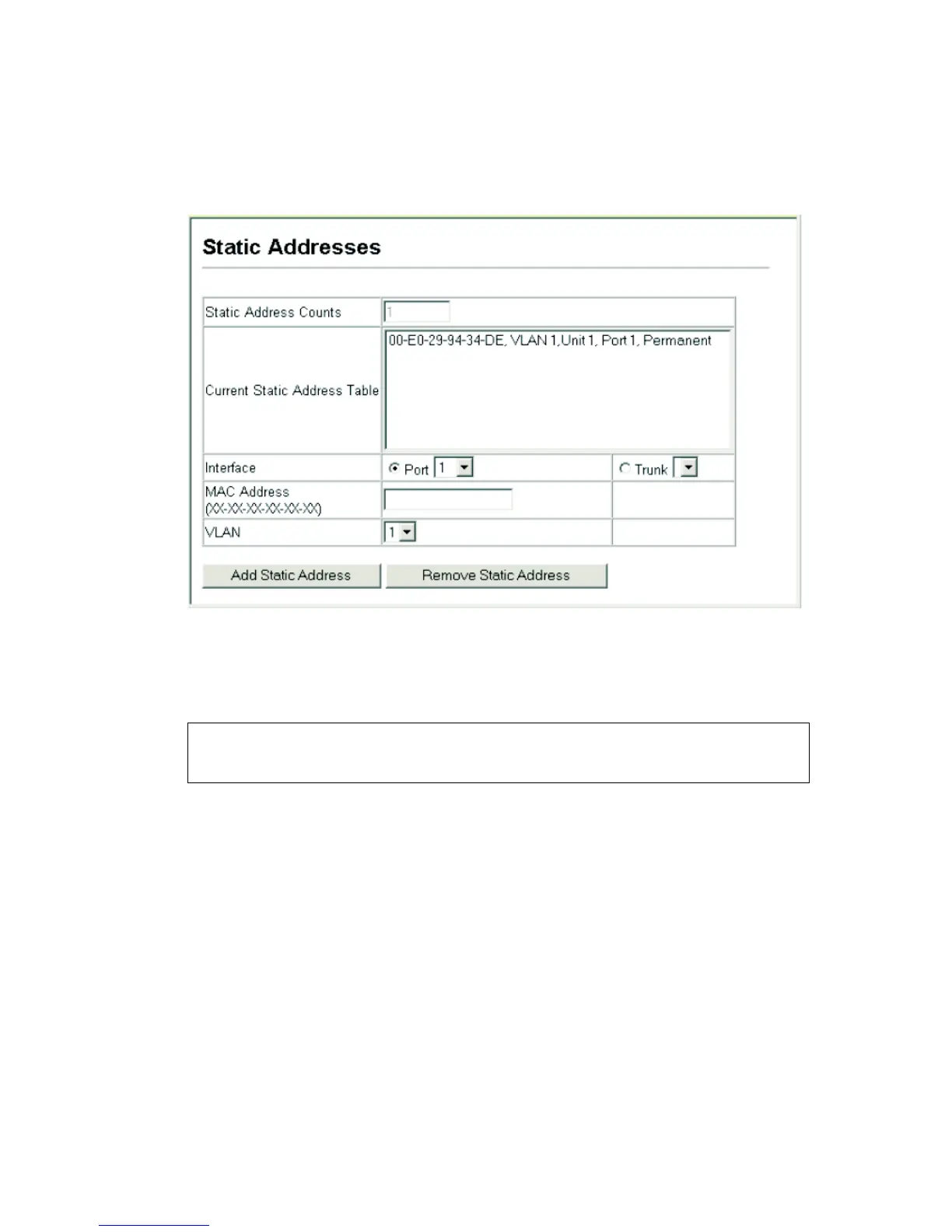

Figure 9-1 Static Addresses

CLI – This example adds an address to the static address table, but sets it

to be deleted when the switch is reset.

Console(config)#mac-address-table static 00-e0-29-94-34-de

interface ethernet 1/1 vlan 1 delete-on-reset 28-2

Console(config)#
