S2/S2BW
Digital Color Doppler Ultrasound System

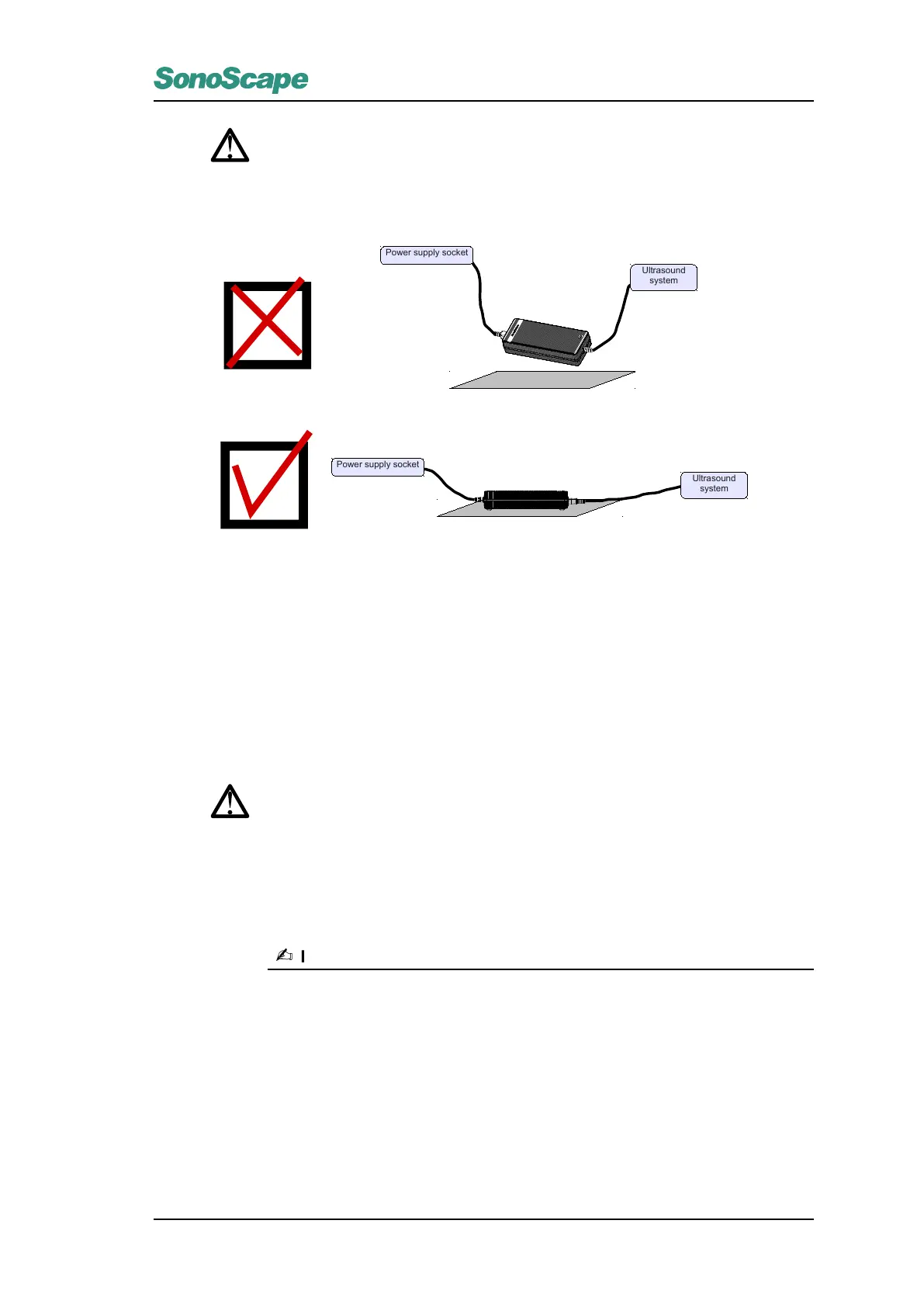

Warning!
Do not allow the adaptor to hang in the air. Place it on the ground or other well ventilated platform
instead.
Power supply socket
Ultrasound
system
Ultrasound
system
Power supply socket
4.2.2 Using Battery
The battery serves as a power source when no AC power supply is available. A fully charged battery can
provide power for the system for up to 1.5 hours. To start operating the system using only the battery, you
need to long-press the power button (press and hold down the power button for at least 2 seconds).
Battery charging time (from depletion to full):
When the system is off:
approximately 2.5 hours.
When the system is on:
approximately 12 hours.
Warning!
• This battery is designed to be an integral part of the ultrasound system. Attempting
do-it-yourself removal of the battery not only voids the warranty but also violates the
regulations, and is discouraged by IEC 60601-1.
• Do not short the metal pins on the connectors using metal objects.
Information for disposing the battery:
To dispose and recycle the ultrasound system and the battery properly, contact SonoScape
representative for instructions.
Turn on the system without connecting the AC adapter to use the battery as the source.
Disconnect the output plug of the AC adapter from the system while it is on, and the system uses battery as
the source automatically.
You may charge the battery while the system is off by connecting the AC adapter to the system.
You may also charge the battery without turning off the system.
Instructions for charging battery with system on:
1. Connect the equipotential point at the rear panel to safety ground (earth).
P/N: 4710.00149A01
4-3
