Specifications
Chapter 6 Miscellaneous
Specifications
HVO-500MD/HVO-550MD
General
Power requirement
+12 V to +24 V DC (supply from
AC-80MD AC adaptor)
Input current HVO-500MD: 3.2 A to 1.6 A
HVO-550MD: 3.5 A to 1.8 A
Operating temperature
5 °C to 40 °C (41 °F to 104 °F)
Operating humidity
20% to 80% (Maximum wet-bulb
temperature: 30 °C (86 °F)) (no
condensation)
Operating pressure
700 hPa to 1,060 hPa
Storage and transport temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Storage and transport humidity
20% to 90% (Maximum wet-bulb
temperature: 30 °C (86 °F)) (no
condensation)
Storage and transport pressure
700 hPa to 1,060 hPa
Mass HVO-500MD: Approx. 2.9 kg
(6 lb. 6.3 oz.)
HVO-550MD: Approx. 3.2 kg
(7 lb. 0.88 oz.)
Dimensions 212.0 × 287.7 × 105.5 mm (8
3
/
8
× 11
3
/
8
× 4
1
/
4
in.) (w × d × h, including
protrusions)
Recording devices
Internal hard disk drive
500 GB
DVD drive (1) (HVO-550MD only)
Supported media: DVD-R (single layer)
Input connectors
HDMI (Type A) (1)
DVI-D (DVI 19-pin) (1)
TMDS (single link)
S VIDEO (Mini DIN 4-pin type) (1)
Y: 1.0 Vp-p (75 Ω) Sync negative
C (BURST): 0.286 Vp-p (75 Ω) (NTSC)
C (BURST): 0.3 Vp-p (75 Ω) (PAL)
VIDEO (BNC type) (1)
Composite
1.0 Vp-p (75 Ω)
Sync negative
AUDIO (Stereo mini jack) (1)
1.4 Vrms (full bit), input impedance
10 kΩ or higher, unbalanced
DC IN (DIN 3-pin)
AC adapter
Output connectors
HDMI (Type A) (1)
DVI-D (DVI 19-pin) (1)
TMDS (single link)
S VIDEO (Mini DIN 4-pin type) (1)
Y: 1.0 Vp-p (75 Ω) Sync negative
C (BURST): 0.286 Vp-p (75 Ω) (NTSC)
C (BURST): 0.3 Vp-p (75 Ω) (PAL)
VIDEO (BNC type) (1)
Composite
1.0 Vp-p (75 Ω)
Sync negative
AUDIO (Stereo mini jack) (1)
1.4 Vrms (full bit), load impedance
10 kΩ, unbalanced
Other Interfaces
USB (Type A) (3)
USB 2.0
USB (Type B) (1)
USB 2.0
Network (RJ-45) (1)
1000 Base-T/100 Base-TX
REMOTE RS-232C (D-sub 9-pin) (1)
REMOTE contact switch (stereo mini jack) (2)
REMOTE MONITOR (RJ-45) (1)
DC IN (3-pin) (1)
Equipotential connector
Accessories supplied
Before Using This Unit (1)
CD-ROM (Instructions for Use) (1)
Warranty booklet (1)

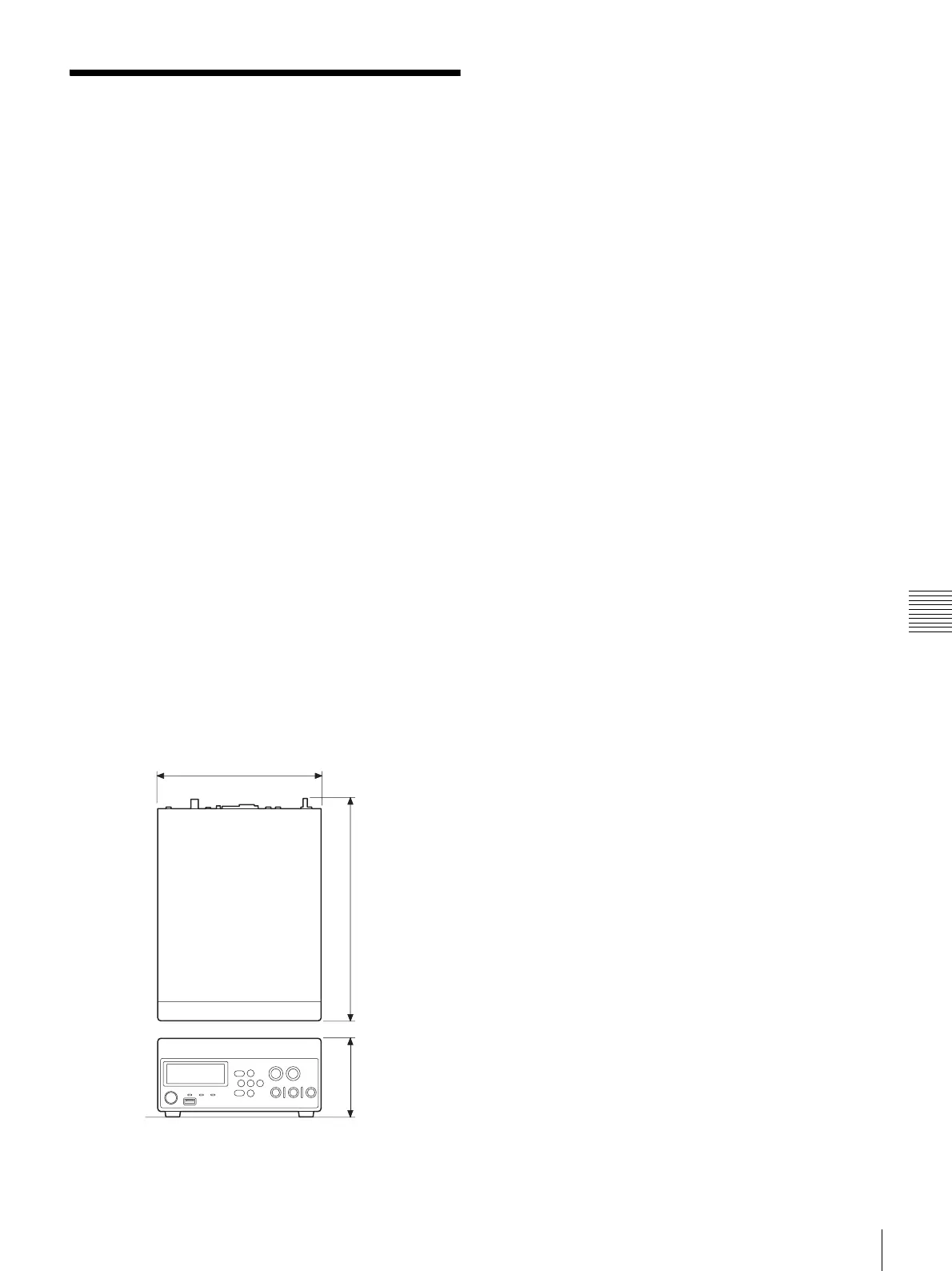

212.0 mm (8
3
⁄
8
in.)
287.7 mm (11
3
⁄
8
in.)
105.5 mm
(4
1
⁄
4
in.)

Sony HVO-500MD Specifications

General

Display	LCD
Product color	White
LED indicators	Yes
Playback resolutions supported	1280 x 720
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
HDD capacity	500 GB
BNC input ports	1
USB 2.0 ports quantity	4
Optical drive included	No

Weight and Dimensions

Weight	2900 g
Dimensions (WxDxH)	212 x 290 x 105.5 mm
