Description Location

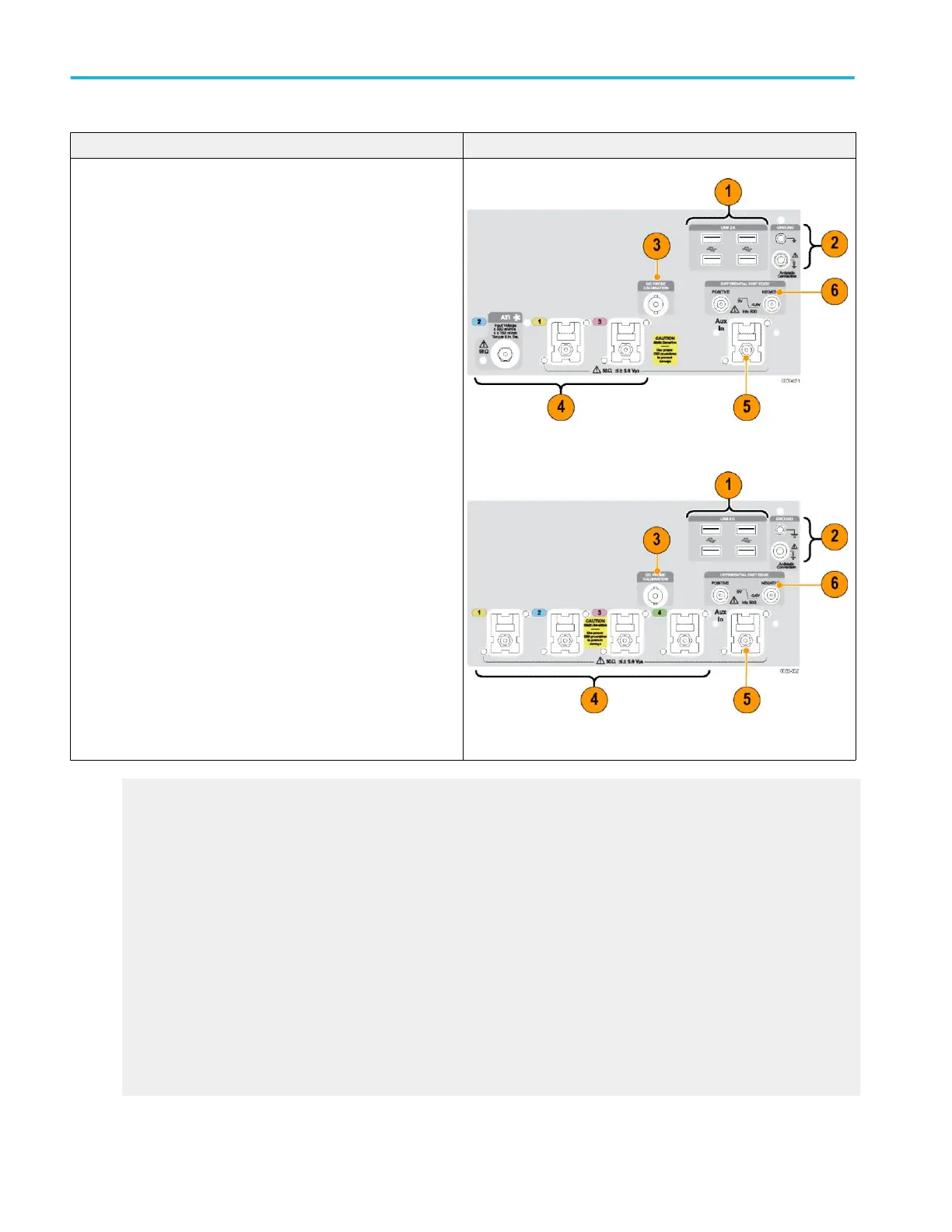

1. USB port
2. Ground terminal
3. PROBE CALIBRATION output
4. Channel inputs
5. Auxiliary trigger input
6. Differential Fast Edge output
On / Standby switch.
Figure 10: For DPO70002SX models:
Figure 11: For DPO70004SX models:
Probe Compensation output
Use the Probe Compensation output to compensate or deskew passive probes or active voltage probes. On some models, this is
the Fast Edge output.
Probe Calibration output
Use the Probe Calibration output to calibrate or deskew passive or active voltage probes.
Channel inputs
You can connect up to four probes to the inputs of the instrument. Each vertical input channel has its own vertical control
settings.
D15–D0 inputs
You can connect one logic probe to the logic port on the front of the instrument. Each digital channel has its own control settings.
Auxiliary trigger input
The trigger level range for the Auxiliary Input is adjustable.
Controls and connectors
72 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
