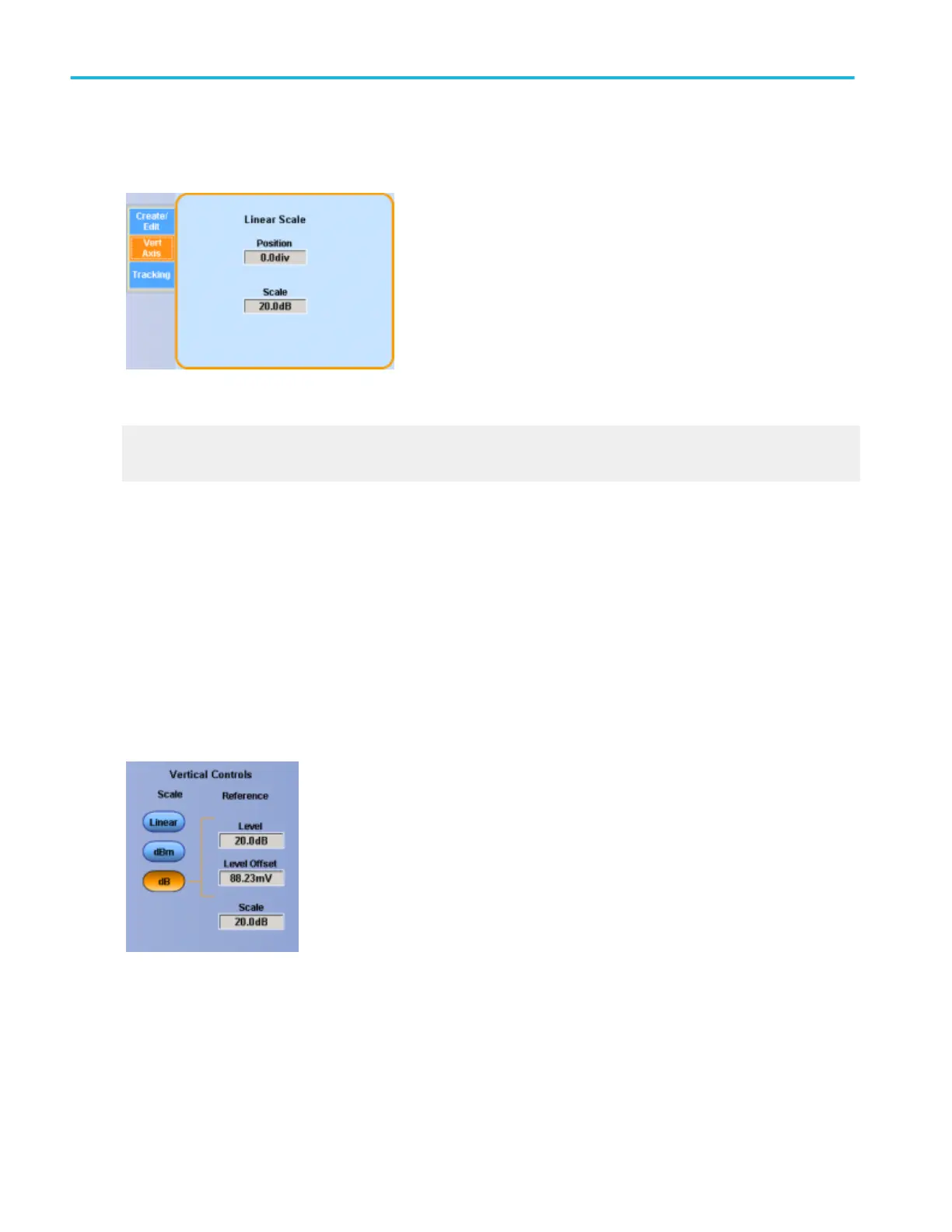

Set the Linear Scale. Click in an entry box and use a multipurpose knob to specify the position and scale for a linear display.
What do you want to do next?
Learn about locking math waveforms together.
Learn about the Math Setup controls.
Set the spectral vertical controls
From the Math menu, select Basic Spectral or click Basic in the Math Setup control window.
To use. Use these controls to specify the vertical scale for magnitude and phase waveforms.
■
Click either the Magnitude or Phase button.
■
Click one of the Vertical Control buttons to specify the vertical units.
■
Click in an entry box and use the multipurpose knobs to adjust the level, scale, position, or offset on screen.
■
For Magnitude waveforms, use the Reference Level Offset control to position the waveform with respect to the
0 dB reference level without changing the reference level at the top of the screen.
Oscilloscope reference
832 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
