Schlage AD-400 Components
The Schlage AD-400 Series wireless system contains two different types of modules:
▪ One wireless panel interface module (PIM400)
▪ One wireless lock (AD-400)
The PIM400 (PIM400-485-VBB) is hard wired to the bright blue communication channels via RS-485 protocol.
The PIM400 installation location is determined by the location of the AD-400 lock with which it will communicate
via radio frequency (RF).
The AD-400 lock is installed at the access point where access will be controlled and/or monitored.

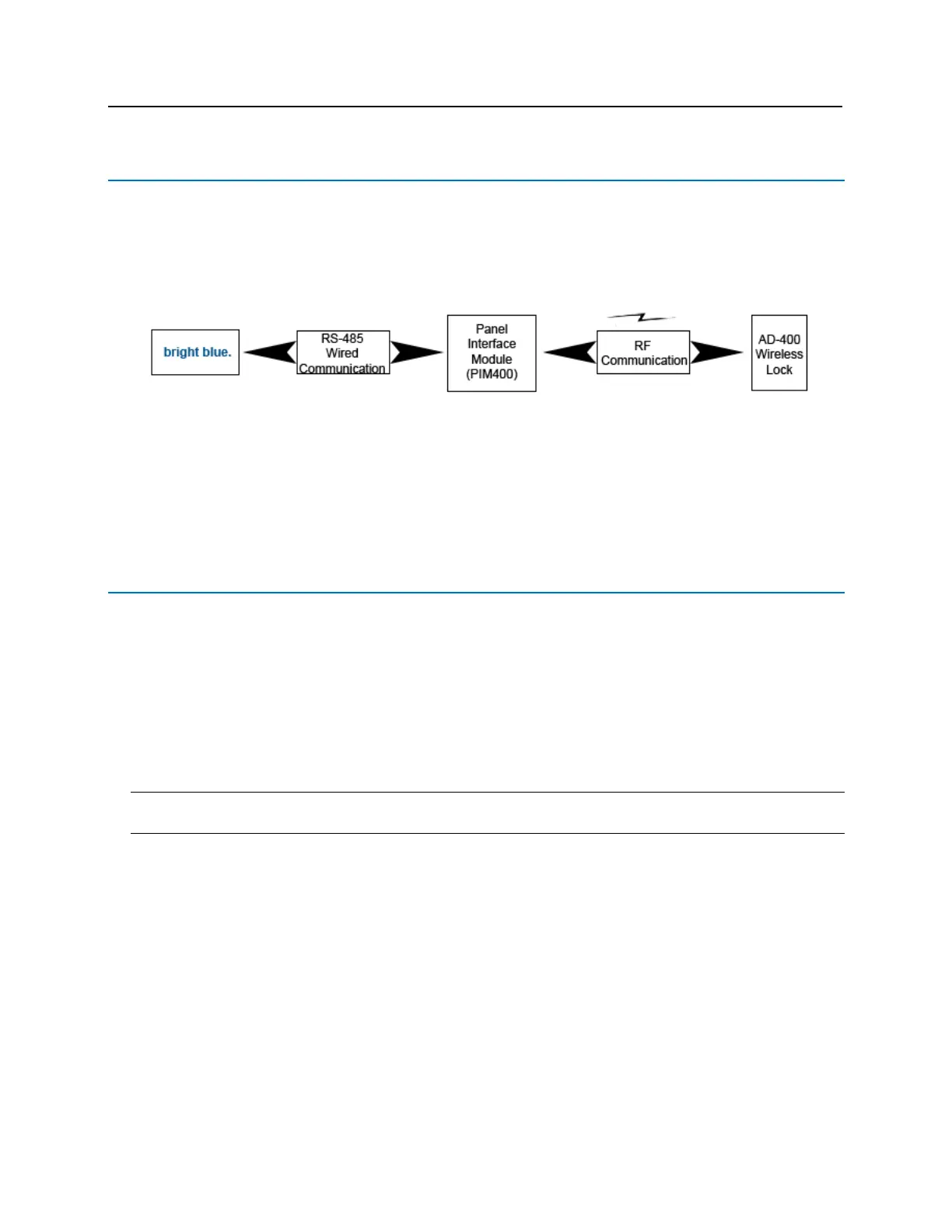

Schlage AD-400 Series Wireless modules
The two components of the AD-400 Series locks, the PIM400 and the AD-400 lock, are detailed in the following
sections.
Panel Interface Module (PIM400-485-VBB)
The PIM400-485-VBB can be integrated with the bright blue system, it works in conjunction with the AD-400
Locks. The PIM400-485-VBB module is hard wired directly to bright blue communication channels and
communicates via RS-485 protocol. The PIM400-485-VBB can support up to 16 AD-400 locks.
NOTE: When accessing the PIM400-485-VBB with the SUS the device may be labeled as "PIM400-485-SBB"
which does not affect programming of the device and should be ignored.
The PIM400 is capable of configuring, via the Schlage Utility Software (SUS), the following
items:
▪ Heartbeat interval
▪ Relock time
▪ Card format type
▪ Extended unlock
▪ Polarity of status signals
▪ Latch type
▪ Query intervals and quantity for unlock requests
▪ Cache mode
▪ Lock state in case of RF communication loss
▪ Relock action (timer only, door open or timer or door closed or timer card code conversions)
