184
bright blue Installation Manual
•

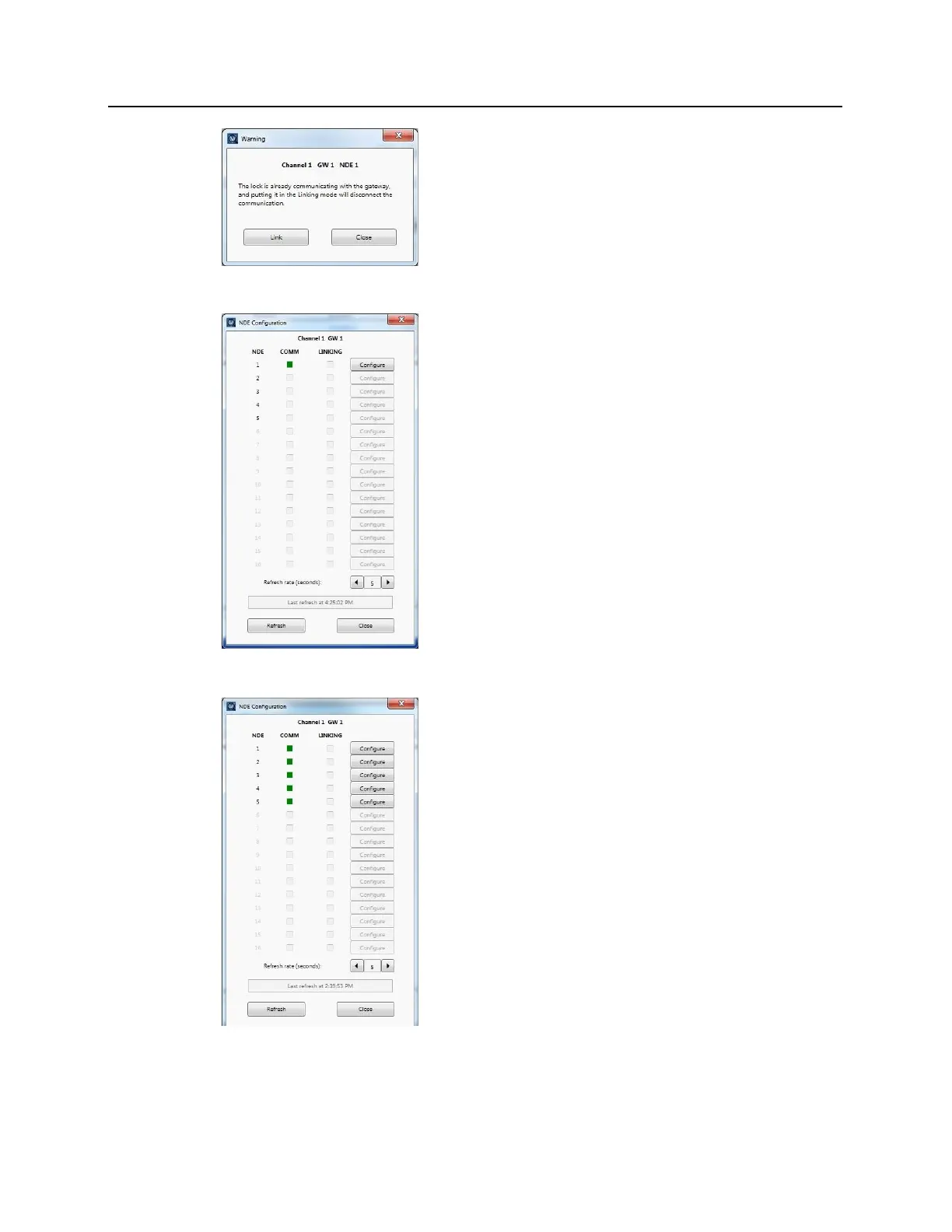

The Lock will display communicating in the Available Locks dialog.
•
Repeat the above process to l
in
k additional NDE Locks to the selected Gateway
•
Close the dialog once all desired NDE Locks are linked to the Gateway
184
186
