High Capacity Stacker (HCS)
2
The High Capacity Stacker (HCS) is an optional
finishing device that provides stacking and offsetting
capabilities for output to a Stacker Tray. The HCS
connects to the right side of the digital press by way
of the Interface Module. The HCS replaces the
Offset Catch Tray (OCT).
Interface Module
High Capacity Stacker (HCS)

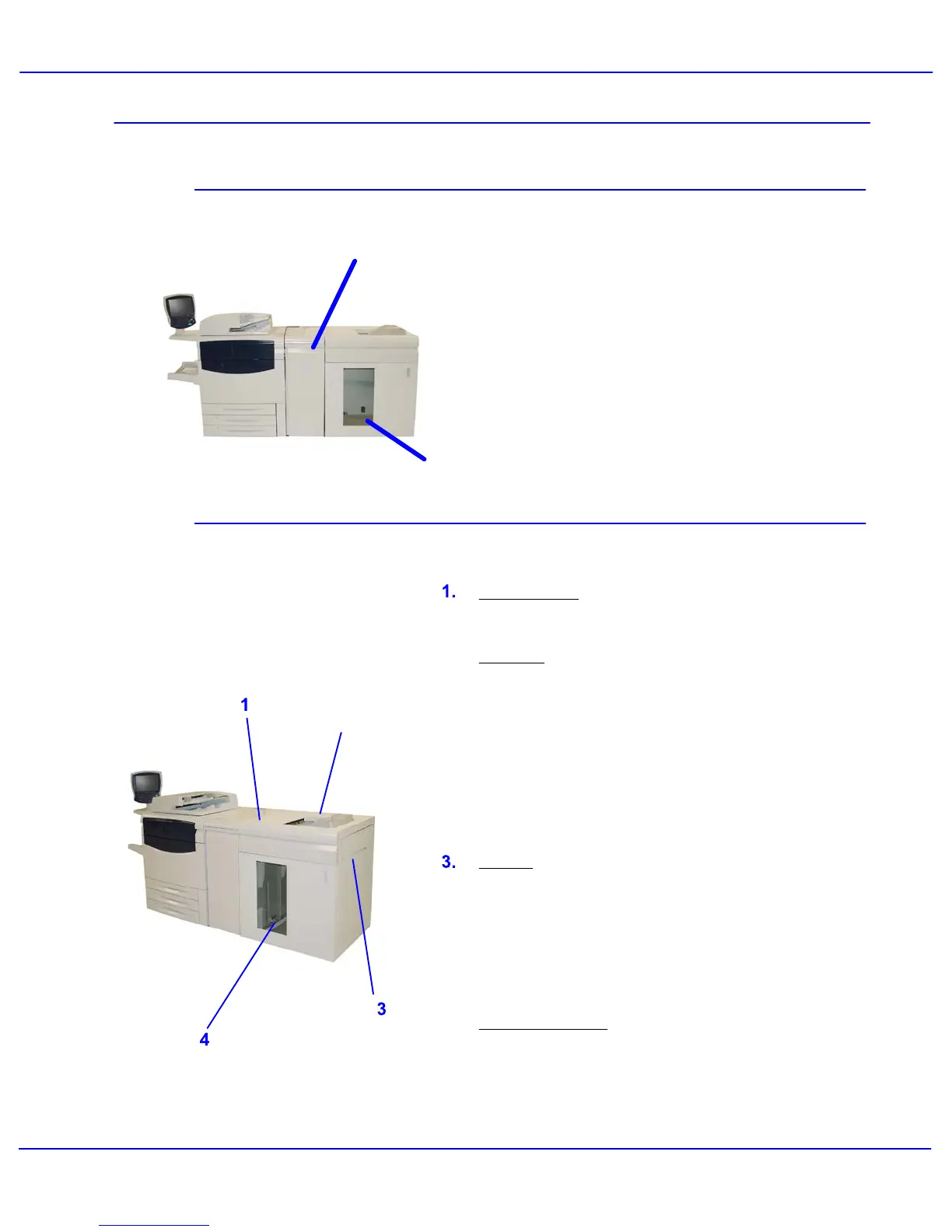

The major components of the HCS are as follows:
Identifying the components
2.
Top Tray - Up to 500 sheets are transported to the
Top Tray:
When sheets are purged after a paper jam.•
When the Sample Set button is selected.•
When selected as an Output Location.•
Labels must be sent to the Top Tray.•
Bypass
- Only used when a second
stacking/finishing device is installed. This path
transports collated sets through the HCS to a
connected finishing device or to another HCS.
If your system configuration has two stackers, the
bypass on the second stacker is not used.
Stacker Tray/Cart
- Collated sets (up to a total of
5000 sheets) are transported to the Stacker Tray
located on a moveable Stacker Cart.
4.
Control Panel - Provides manual control of the
various functions of the HCS.
Overview
