Xerox WorkCentre 5024 User Manual

Problem Solving
Xerox
®
WorkCentre
®
5022/5024 Multifunction Printer
User Guide
13-55

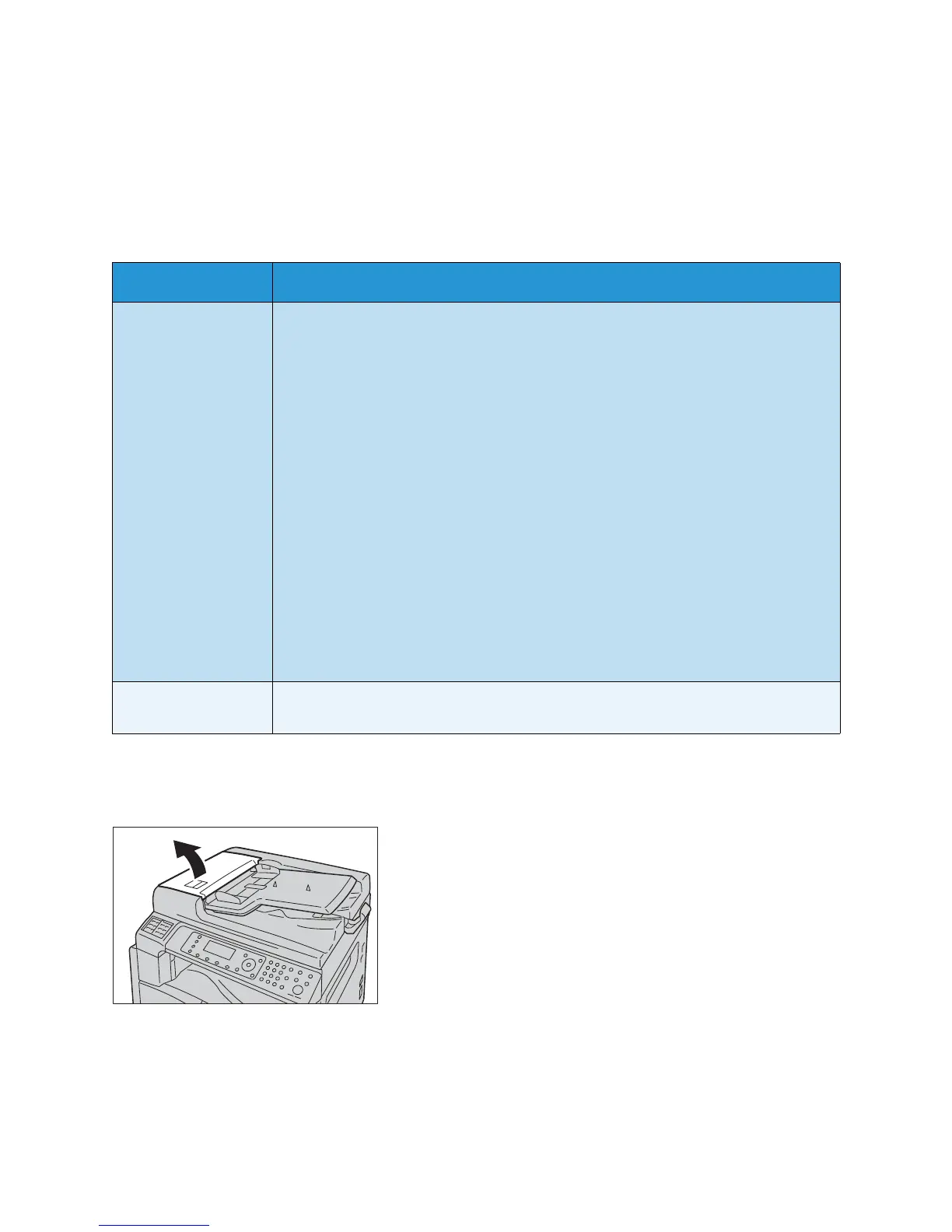

Document Jams
When a document jam occurred in the document feeder, the machine stops and an alarm beeps. A
message is also displayed on the screen.
Note The document feeder does not come as standard on some machine configurations.
Follow the steps below to remove the jammed document.
1. Pull up the front handle of the document feeder cover, and open the document feeder cover
completely.
Note The cover will remain fixed in position when fully opened. Open the cover slowly.
Error Code Message
005-122
005-123
005-125
005-131
005-132
005-134
005-135
005-136
005-139
005-145
005-147
005-196
005-198
005-199
005-907
005-908
005-913
Document Feeder Jam
Open Document Feeder Cover and remove paper.
005-197 Unavailable Original Size
Open Document Feeder Cover and remove paper.
