6 Servo gain adjustment
6.1 Overview of servo gain adjustment
6.1.1 Overview and process
Servo drivers need to drive motors as quickly and accurately as possible to track instructions from the
host computer or internal settings. In order to meet this requirement, the servo gain must be adjusted
reasonably.
The output value of servo gain is in adaptive mode, but different machines have different requirements

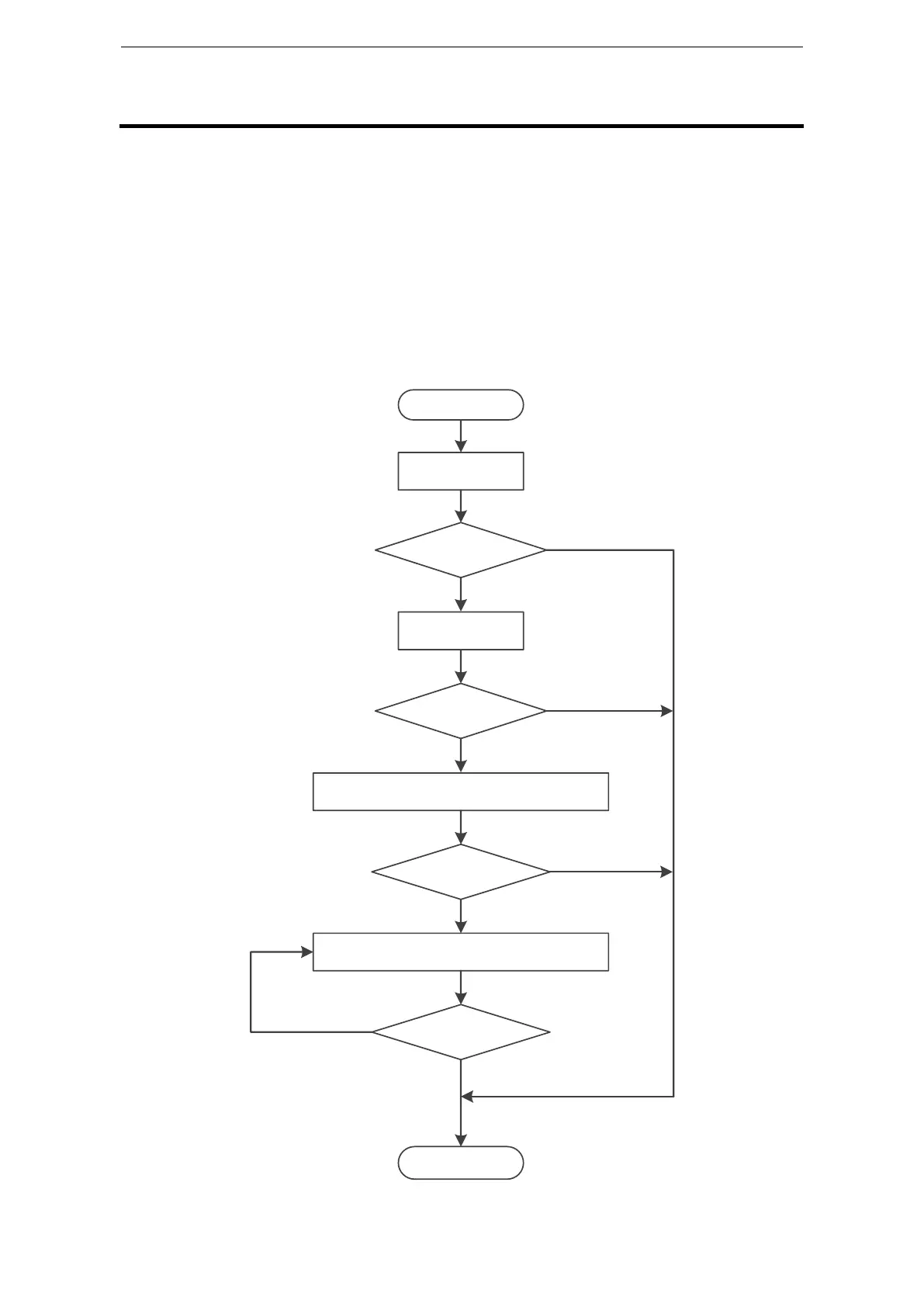

for servo responsiveness. The following figure is the basic process of gain adjustment. Please adjust
according to the current state and operation conditions of the machine.
Start adjusting
Use adaptive
function
Are you satisfied with
responsiveness?
YES
Fast adjusting
Are you satisfied with
responsiveness?
NO
YES
NO
Auto-tuning (external or internal instruction)
Are you satisfied with
the adjusting result?
YES
NO
Manual adjustment for gain fine-tuning
(mechanical characteristics analysis in case of
vibration)
Are you satisfied with
the adjusting result?
YES
NO
END
To Next Page
