F7 Monitor List

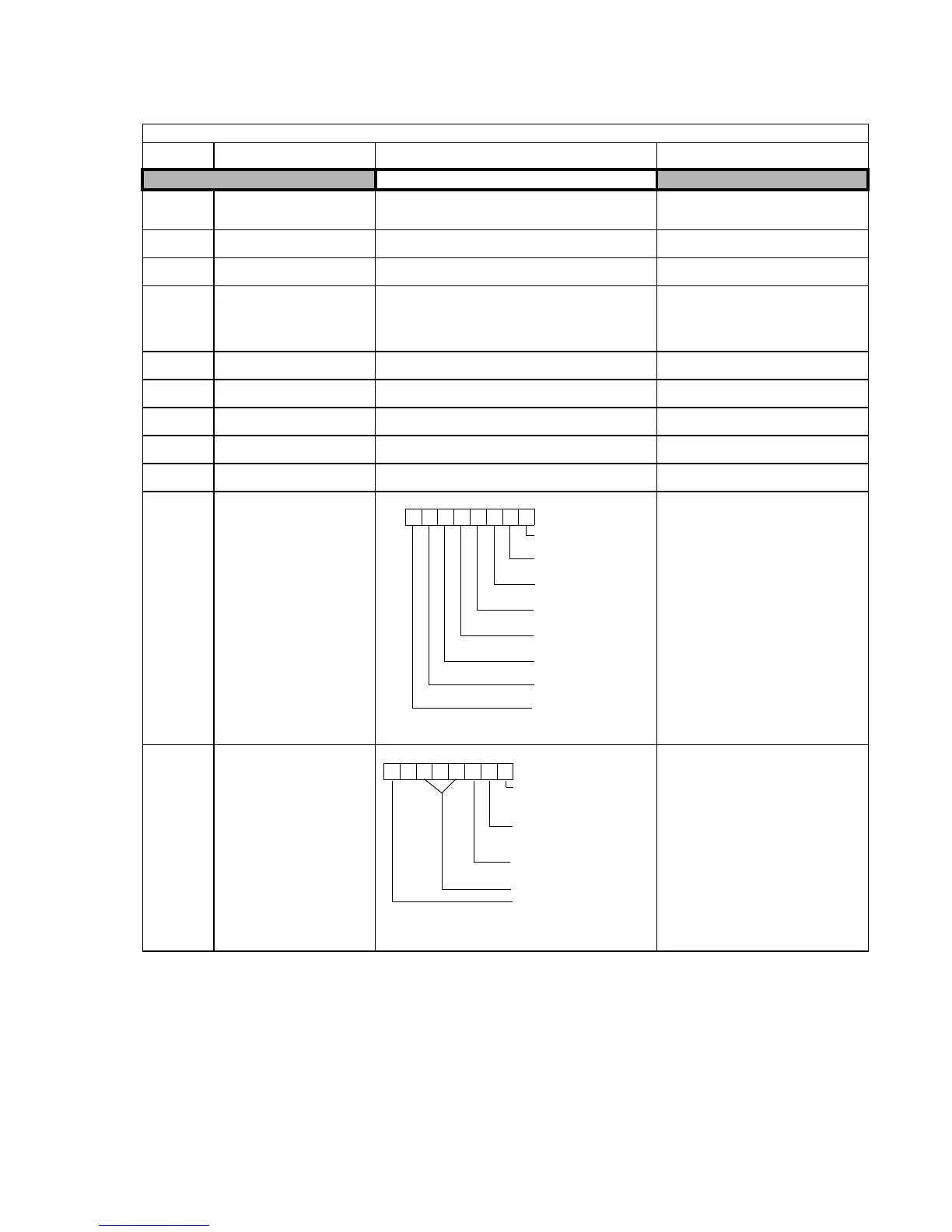

Table A.2 F7 Monitor List
Parameter
No.
Parameter Name
Digital Operator Display
Description Display Units
Monitor
U1-01
Frequency Reference
Frequency Ref
Frequency reference (speed command) monitor when in
REMOTE mode, frequency reference (speed command)
setting location when in local mode or b1-01 = 0.
Set by o1-03.
U1-02
Output Frequency
Output Freq
Output frequency Set by o1-03.
U1-03
Output Current
Output Current
Output current 0.01A
U1-04
Control Method
Control Method
Control method set in A1-02.
0 = V/F without PG
1 = V/F with PG
2 = Open Loop Vector
3 = Flux Vector
-
U1-05
Motor Speed
Motor Speed
Motor speed feedback Set by o1-03.
U1-06
Output Voltage
Output Voltage
Output voltage 0.1Vac
U1-07
DC Bus Voltage
DC Bus Voltage
DC Bus Voltage 1Vdc
U1-08
Output Power
Output kWatts
Output power 0.1kW
U1-09
Torque Reference
Torque Reference
Torque reference 0.1%
U1-10
Input Terminal Status
Input Term Sts
Input terminal status
-
U1-11
Output Terminal Status
Output Term Sts
Output terminal status.
-
0
1: FWD. run
(Terminal S1) is ON.
1: REV. run
(Terminal S2) is ON.
1: Multi-function input 1
(Terminal S3) is ON.
1: Multi-function input 2
(Terminal S4) is ON.
1: Multi-function input 3
(Terminal S5) is ON.
1: Multi-function input 4
(Terminal S6) is ON.
1: Multi-function input 5
(Terminal S7) is ON.
1: Multi-function input 6
(Terminal S8) is ON.
0 0 0 0 0 0 0
1: Multi-function Output 1
(Terminal M1-M2) is ON.
1: Multi-function Output 2
(Terminal M3-M4) is ON.
1: Multi-function Output 3
(Terminal M5-M6) is ON.
0: Not used
1: Fault output
(Terminal MA-MB-MC) is
ON.
