Electrical Installation 2 - 31
Installation
Before mounting an Option Board, remove power from the Drive and wait for the CHARGE LED to go out. Remove the
Digital Operator, front cover, and option clip. Option Clip can be easily removed by squeezing the protruding portions of the
clip and then pulling it out. Then, mount the Option Board(s).
The A Option Board uses a mounting spacer to secure the board to the control board. Insert the mounting spacer as shown in
Fig 2.16.
After installing an Option Board into slot C or D, insert the Option Clip to prevent the side with the connector from rising.
Refer to documentation provided with the Option Board for detailed mounting instructions for option slots A, C, and D.

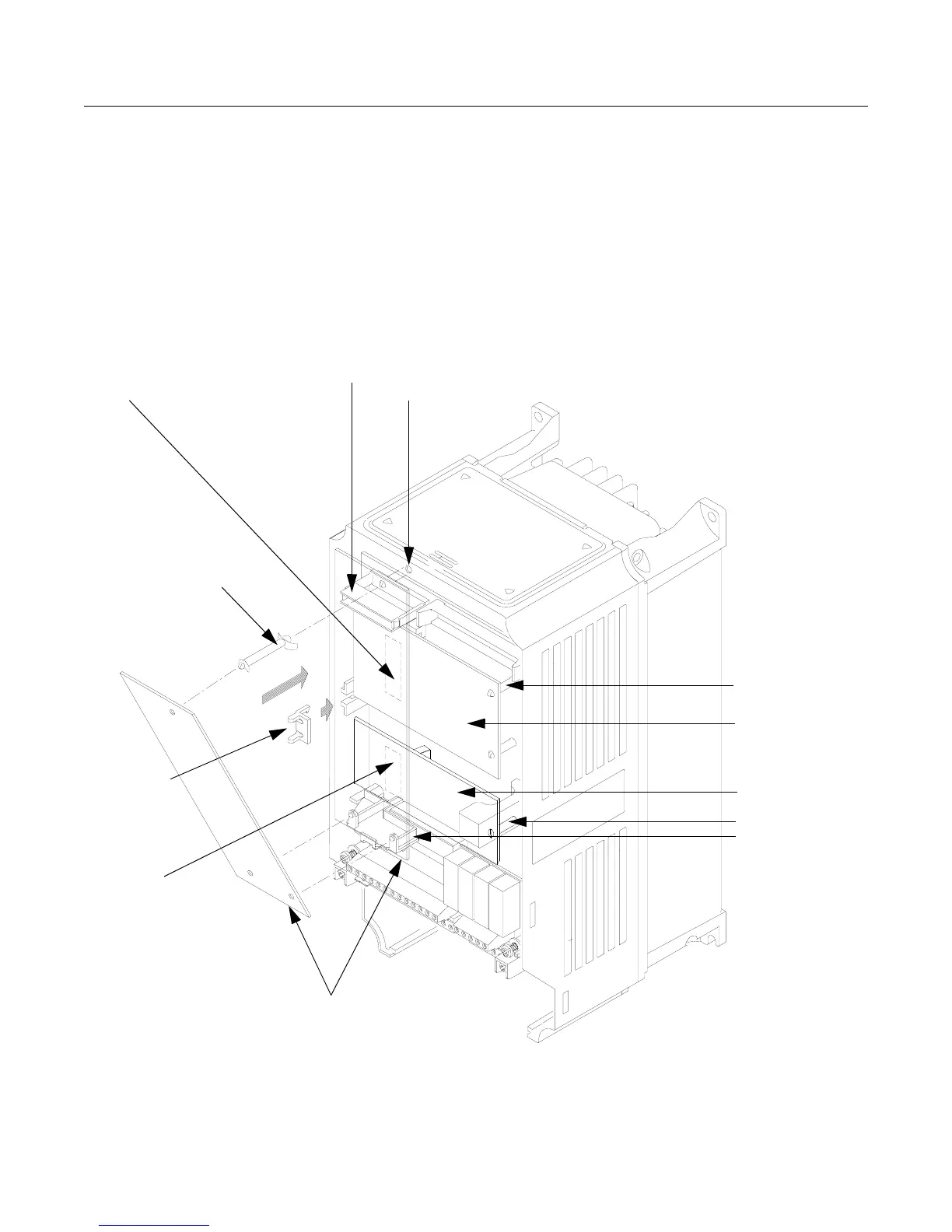

Fig 2.16 Mounting Option Boards
4CN (A Option Board connector)
C Option Board
3CN
Mounting spacer
D Option Board
Mounting spacer
A Option Board
Mounting spacer
A Option Board
A Option Board mounting spacer hole
2CN (C Option Board connector)
A Option Board
mounting spacer
(Provided with
A Option Board)
(D Option
Board
connector)
(Note: C or D Option Board
must be mounted before mounting
A Option Board)
Option Clip
(To prevent
raising of
C or D
Option Board)
