HITCHES
E459 E460
∗LOWER TIE-RODS WITH DRAW-OUT
ENDS

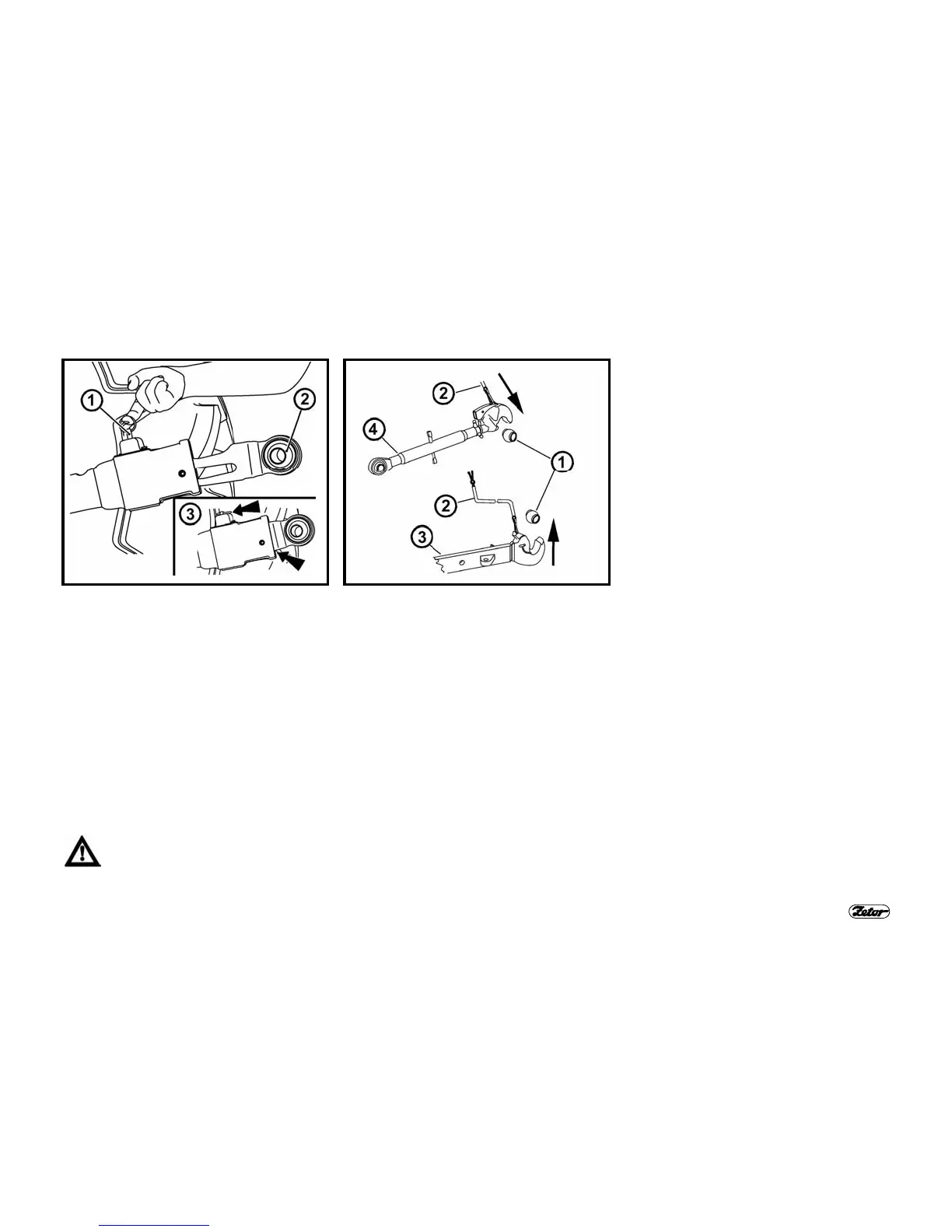

Lower tie-rods are fitted with semi-
automatic draw-out ends CBM. They
make the implement attachment to tractor
easier. After releasing of safety pins (1)
move the ends (2) out. The ends being
moved out are attached to fastening pins
of the carried implement.
After attachment of the carried implement
release the hydraulic arms so that you
lower them down and by tractor reversing
the ends (2) will slide into tie-rods and
lock in the working position by means of
safety pins (1) automatically.
Be sure to check the position of
draw-out ends and safety pins -
see Fig. (3).
∗LOWER TIE-RODS WITH CBM
HOOKS
Both lower (3) and upper (4) tie-rods of the
hitch are fitted with CBM hooks.First install
suspension balls CBM (1) and limiting
rods onto the implement to adjust the
distance between lower tie-rods (3) of the
hitch.
By reversing and subsequent lifting of the
three-point hitch, the lower tie-rods (3)
are connected to the implement and then
the driver will connect the upper tie-rod
(4) of the three-point hitch from inside the
cab.
To disconnect the implement, unlock the
hooks by means of control cables (2), lift
the upper tie-rod (4) and lower the three-
point hitch to disconnect the lower tie-
rods (3).
