27
ACQUAINTANCE WITH TRACTOR

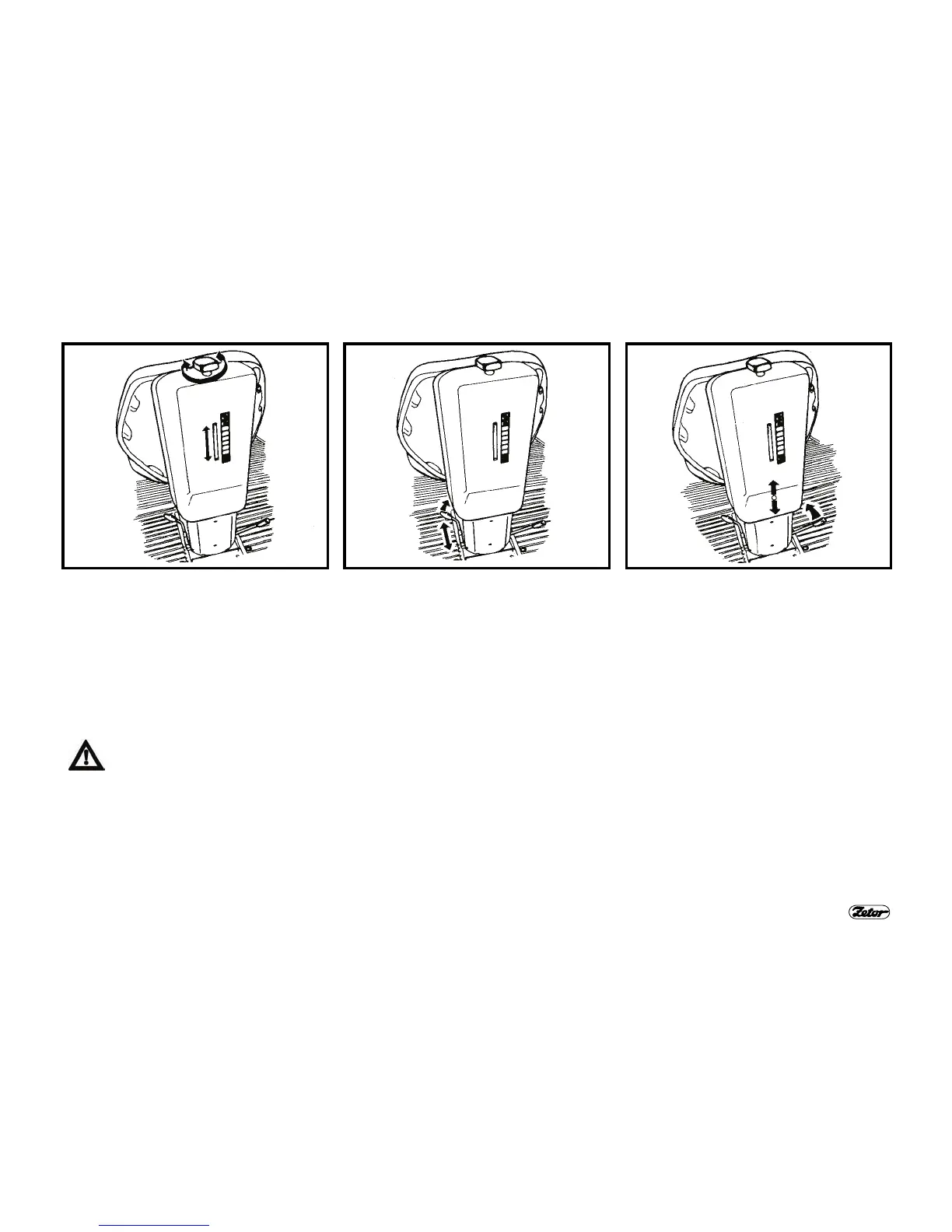

E113 E114 E115
DRIVER’S SEAT MARS SVRATKA
ADJUSTMENT RELATED TO
DRIVER’S WEIGHT
The seat suspension may be adjusted to
the driver’s weight ranging from 50 up to
120 kg. Turn the square knob to do it.
The weight indicator is located in the re-
cess of the rear seat cover. The spring
stroke is 120 mm.
Do not adjust the seat when driv-
ing!
Danger of accident!
LONGITUDINAL ADJUSTMENT
The seat can be adjusted longitudinally
within the range of ± 75 mm (11 posi-
tions) after unlocking by the left hand
side lever.
VERTICAL ADJUSTMENT
The vertical seat adjustment is done by
the right-hand side lever from the middle
position to two marginal positions within
the range of ± 30 mm.
