138
ELECTRICAL SYSTEM
E607

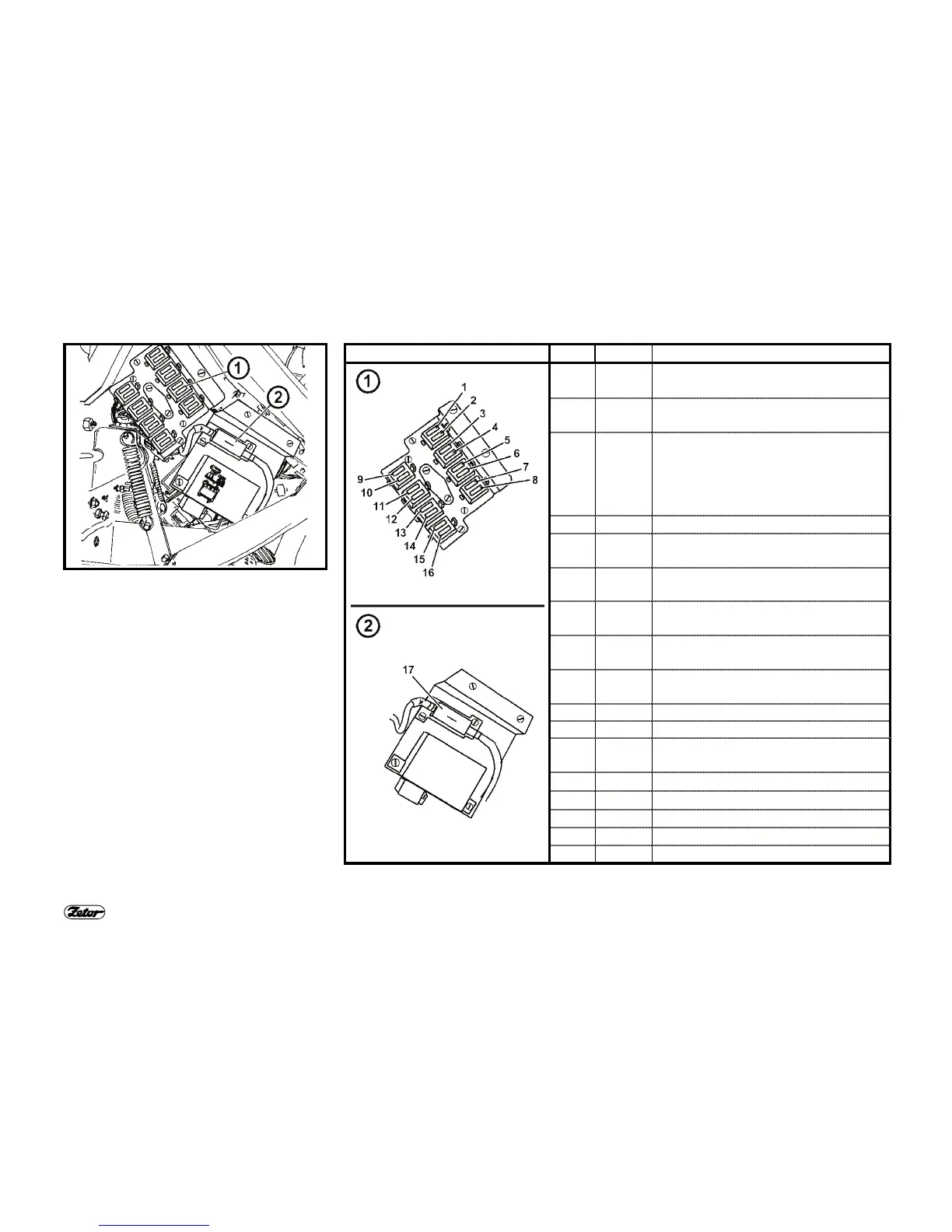

FUSE BOX
The fuse box is accessible after removal
of the left-hand cover of the steering
support.
Fuses (1)are of knife type and the pre-
scribed ampere value must be kept when
replacing a fuse. In case of repeated
fuse burning, look for an authorized
service workshop.
The fuse of glowing (13) is of strip-type
(80A)
∗ - option
1
) – used when independent kontrol of
working lights on the cab roof is
installed
Positron of fuse in fuse box Item. Fuse Protected system
1 15A emergency flasher interrupter
stop lights
2 15A horn
starter breaker relay 30 output
3 15A front driving axle, differential lock,
P.T.O. front shaft c/w indicator
lights, differential lock relay “3“,
dashboard power supply,
inspection socket
4 15A high beam c/w indicator light
5 15A position lights LH, licence plate
ilumination
6 15A position lights RH, working lights
c/w indicator light
7 15A low beam RH, fog light c/w
indicator light
8 15A low beam LH, indicator light of
lights in tractor mask / roof
9 15A front and rear wiper, windshield
washer, relay “4“
10 15A heating fan, relays “5“ and “6“
11 15A open
∗12
7,5A air-conditioning (compressor
clutch)
∗13
15A rear view mirrors heating
∗14
15A rear glass heating
∗15
15A open
16
1
) 15A lights in cab roof
1
)
E608
17 80A glowing
