28
ACQUAINTANCE WITH TRACTOR
E116

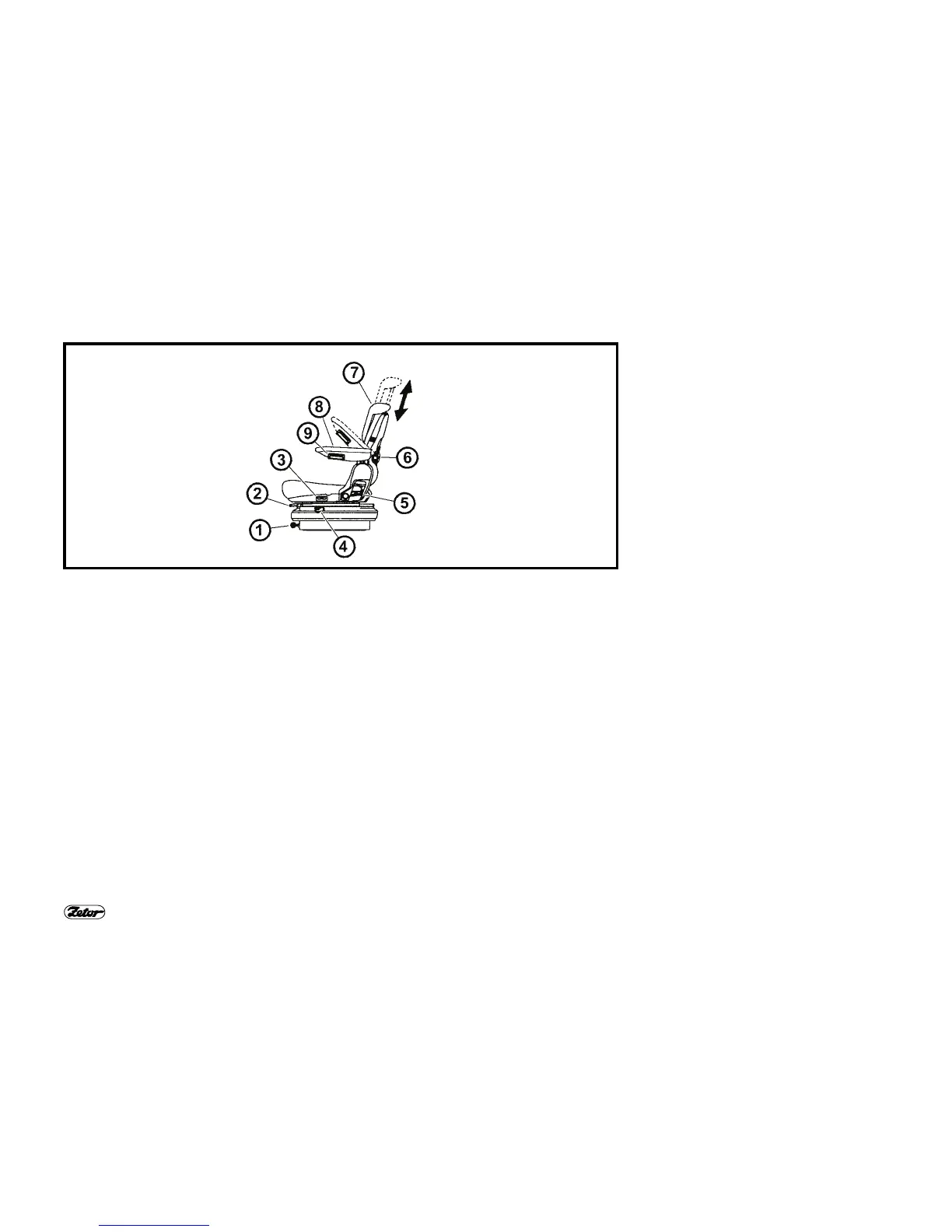

DRIVER´ S SEAT GRAMMER MAXIMO
1. Driver´s seat suspension control according to driver´s weight
2. Lever to adjust the seat longitudinally (situated on the right-hand side of the seat)
3. Seat turning control (the seat may be turned by 20° to both sides)
4. Seat vibrations absorption control (tilt it forwards to set the seat floating position)
5. Seat backrest inclination control
6. Seat backrest shape control
7. Height-adjustable backrest (push or pull it in the arrow direction to adjust it within
the range of 170 mm)
8. Tilting armrest
9. Armrest control (turn it to adjust the required armrest height)
DRIVER´ S SEAT GRAMMER S
Only positions 1, 2 and 5 are applicable.
