ELECTRICAL SYSTEM
E612

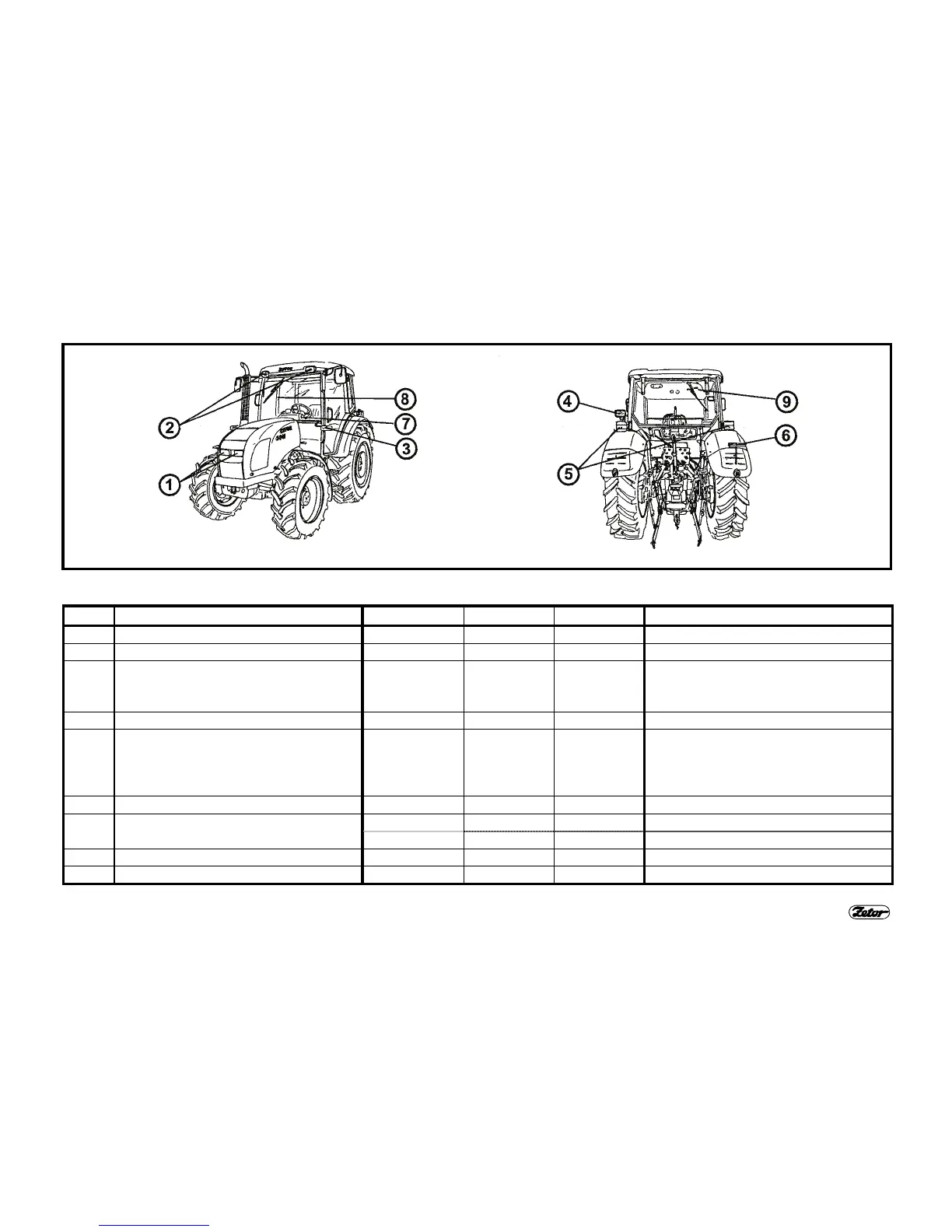

LIST OF BULBS
Item Bulb location Voltage Power Socket Note
1 Front headlights H4 12 V 55/60 W P 43t
2 Cab roof headlights H4 12 V 55/60 W P 43t (low beam filament connected)
3 Front cluster lights
Turn signal lights 12 V 21 W BA 15s
Position (side-marker) lights 12 V 10 W BA 15s
4 Working headlight 12 V 55 W H 3
5 Rest cluster lights
Tail lights 12 V 10 W BAY 15D
Stop lights 12 V 21 W BAY 15D
Turn signal lights 12 V 21 W BA 15s
6 Illumination of license number plate 2x12 V 5 W S 8,5
12 V 2 W B 8,5 d Illumination, charging warning lamp 7 Dashboard - integrated instrument
KMGY
12 V 1,2 W B 8,5 d Other indicator lamps
8 Cab lighting 12 V 5 W S 8,5
9 Illumination of heating panel 12 V 1.2 W
