HYDRAULIC SYSTEM

E413

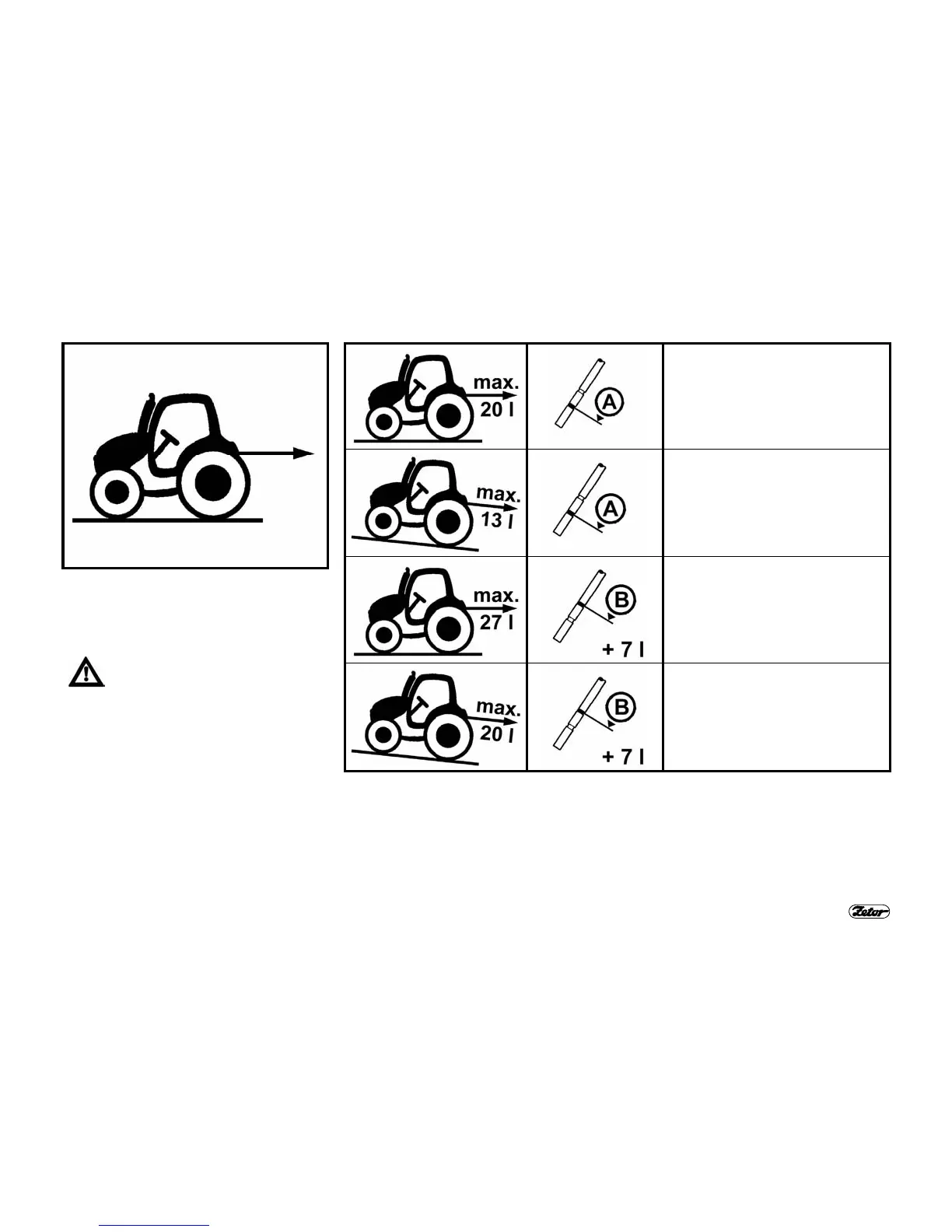

OIL VOLUME SUPPLIED FROM

HYDRAULIC OUTER OUTLETS

For maximum possible delivered oil

volume see the following chart.

With high oil supply, the hydraulic

pump might suck the air inside

and the pump could be damaged.

In case that after disconnecting of the

implement the oil level drops in the

gearbox (caused by its permanent

pumping from tractor into hydraulic

circuit of the implement), it’s necessary

to add the missing volume of oil.

Type of work: in plain terrain

Max. oil supply: 20 litres

Gearbox filling:

standard filling dipstick

mark (A)

Type of work: at slope

Max. oil supply: 13 litres

Gearbox filling:

standard filling dipstick

mark (A)

Type of work: in plain terrain

Max. oil supply: 27 litres

Gearbox filling: dipstick mark (B)

gearbox filling increased by 7 litres

maximum permissible oil volume in

gearbox
