ELECTRICAL SYSTEM
E611
CHECKING THE ADJUSTMENT OF CAB ROOF HEADLIGHTS

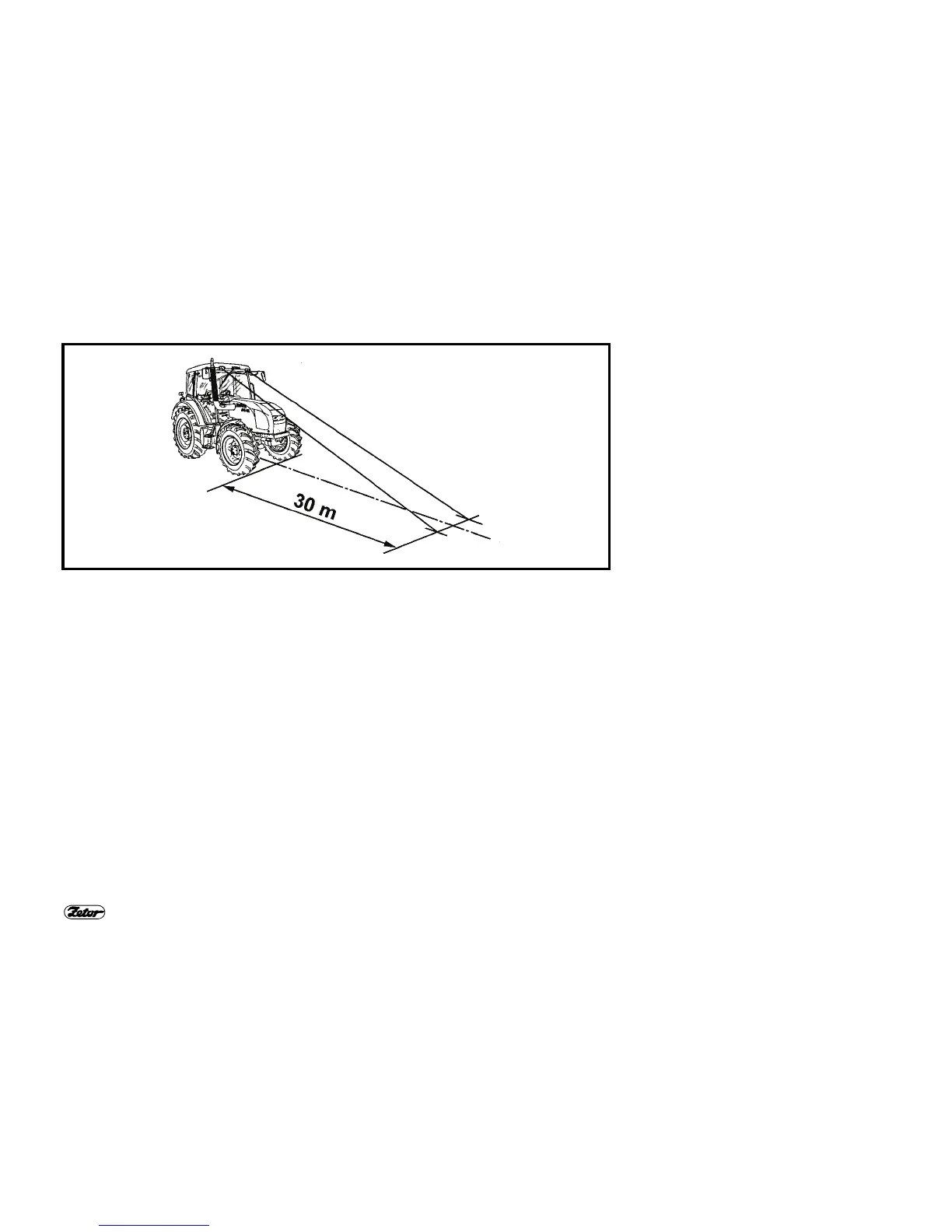

In vertical direction, any point of illuminated surface, existing in the road surface
plane on the left side from the longitudinal vertical plane going through the light
centre, must not be farther than 30 m from the front tractor contour.
In horizontal direction, headlight beams must be parallel with longitudinal tractor axis
of symmetry.
Check the headlight adjusting at tractor curb weight. Front roof headlights can be
used on the road only in case that the attached front implement or machine covers
the main headlights in the tractor mask.
