MECHANICAL INSTALLATION
PRODUCT
ACS6000
DOCUMENT KIND
User manual
DOCUMENT ID.
3BHS212794 E01
REV.
N
LANG.
en
PAGE
102/266
5.8. Installing and removing air-to-air heat exchangers
This section describes how to install and remove the optional air-to-air heat
exchangers.
5.8.1. Installing air-to-air heat exchangers
For information on the number of air-to-air heat exchangers to be installed and
their fitting position, see Appendix C - Mechanical drawings.

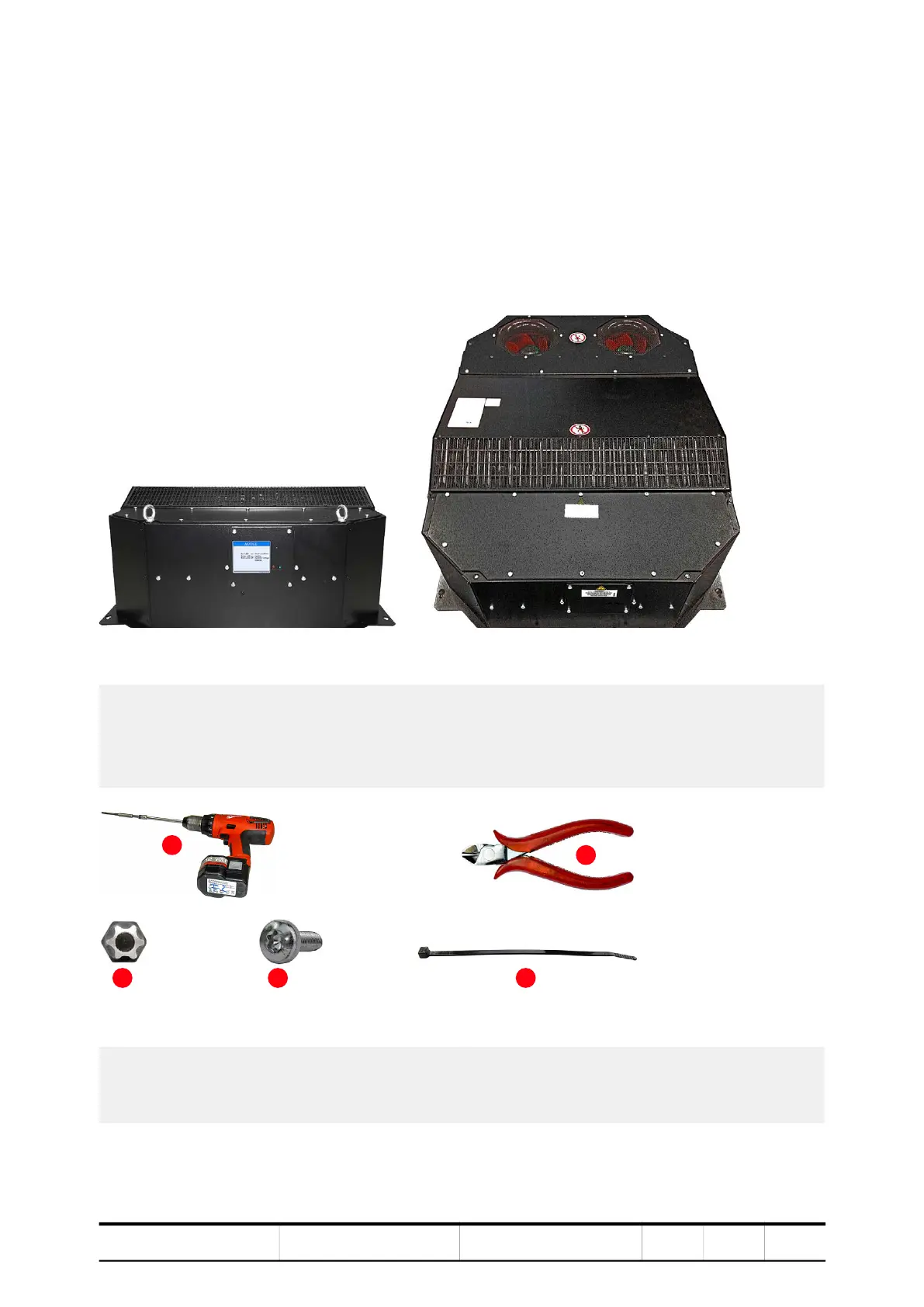

Figure 5-9 Air-to-air heat exchanger (type LT-5-5165-UL)
Figure 5-10 Tools for installing an air-to-air heat exchanger
Weight: ~65 kg
Length: 1025 mm
Width: 750 mm
Height: 316 mm
1) Cordless drill
2) Wire cutter
3) Torx drill bit
4) M6 x 12 Torx screw
5) Cable tie
1
2
3 4 5
