MECHANICAL INSTALLATION
PRODUCT
ACS6000
DOCUMENT KIND
User manual
DOCUMENT ID.
3BHS212794 E01
REV.
N
LANG.
en
PAGE
110/266
5.8.3. Installing the transformers of air-to-air heat exchangers
This section applies to drives with separately delivered air-to-air heat exchangers.
For information on the number of transformers to be installed and their fitting
position, see Appendix C - Mechanical drawings.
1. Install the transformer and hood as illustrated.

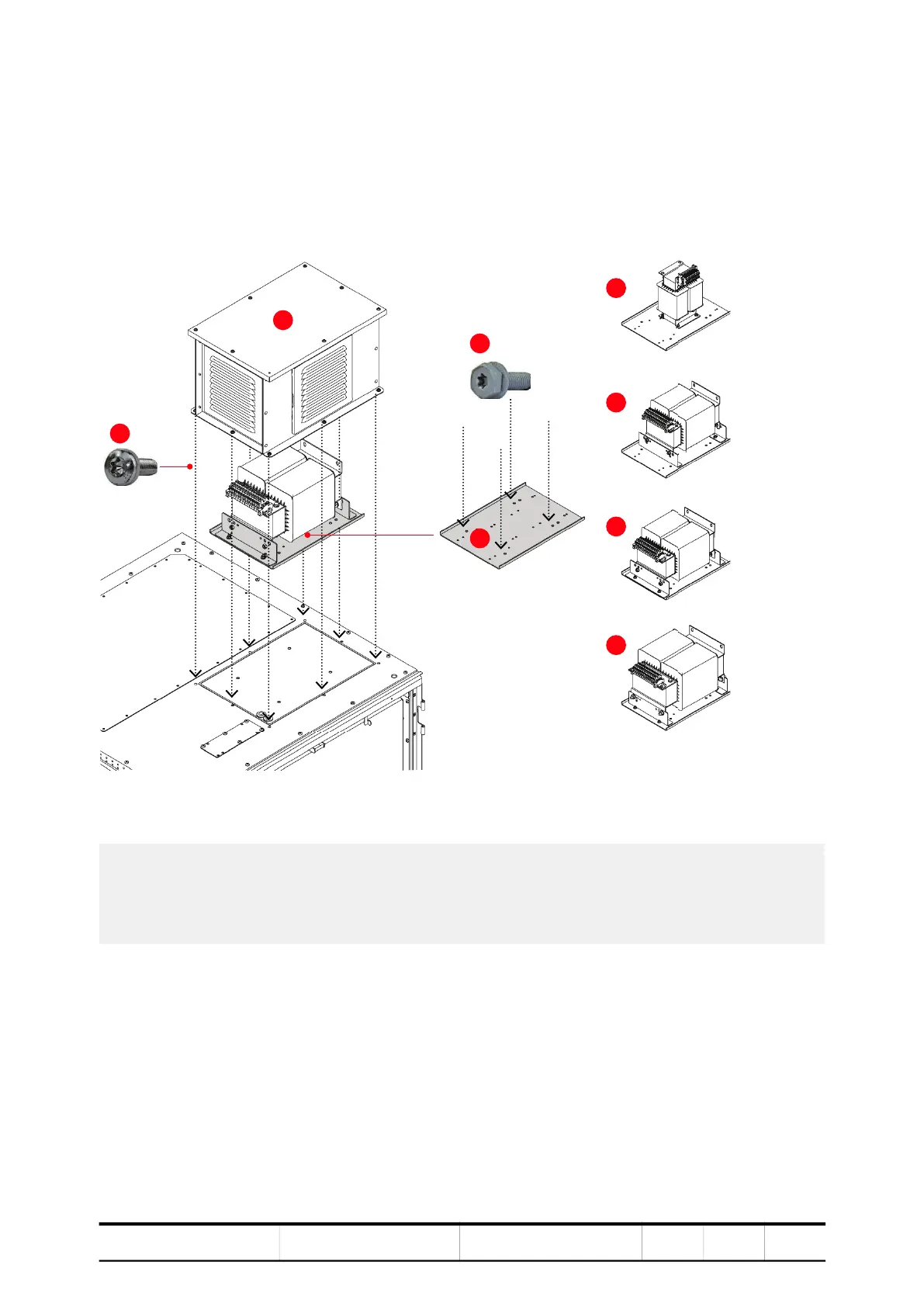

Figure 5-16 Installation example of transformers in an air-to-air heat exchanger
1) 8 x M6x12 (HAQN401205P0257)
2) Transformer hood
3) 4 x M8x20 (9ABA450093R0310)
4) Transformer connection plate
5) 1.5 kVA transformer: ~17 kg
6) 2.8 kVA transformer: ~49 kg
7) 3.5 kVA transformer: ~49 kg
8) 6 kVA transformer: ~66 kg
1
2
3
4
5
6
7
8
