CDP CONTROL PANEL
PRODUCT
ACS6000
DOCUMENT KIND
User manual
DOCUMENT ID.
3BHS212794 E01
REV.
N
LANG.
en
PAGE
200/266
9.2.4. Functions mode
The functions mode is used for adjusting the display contrast.

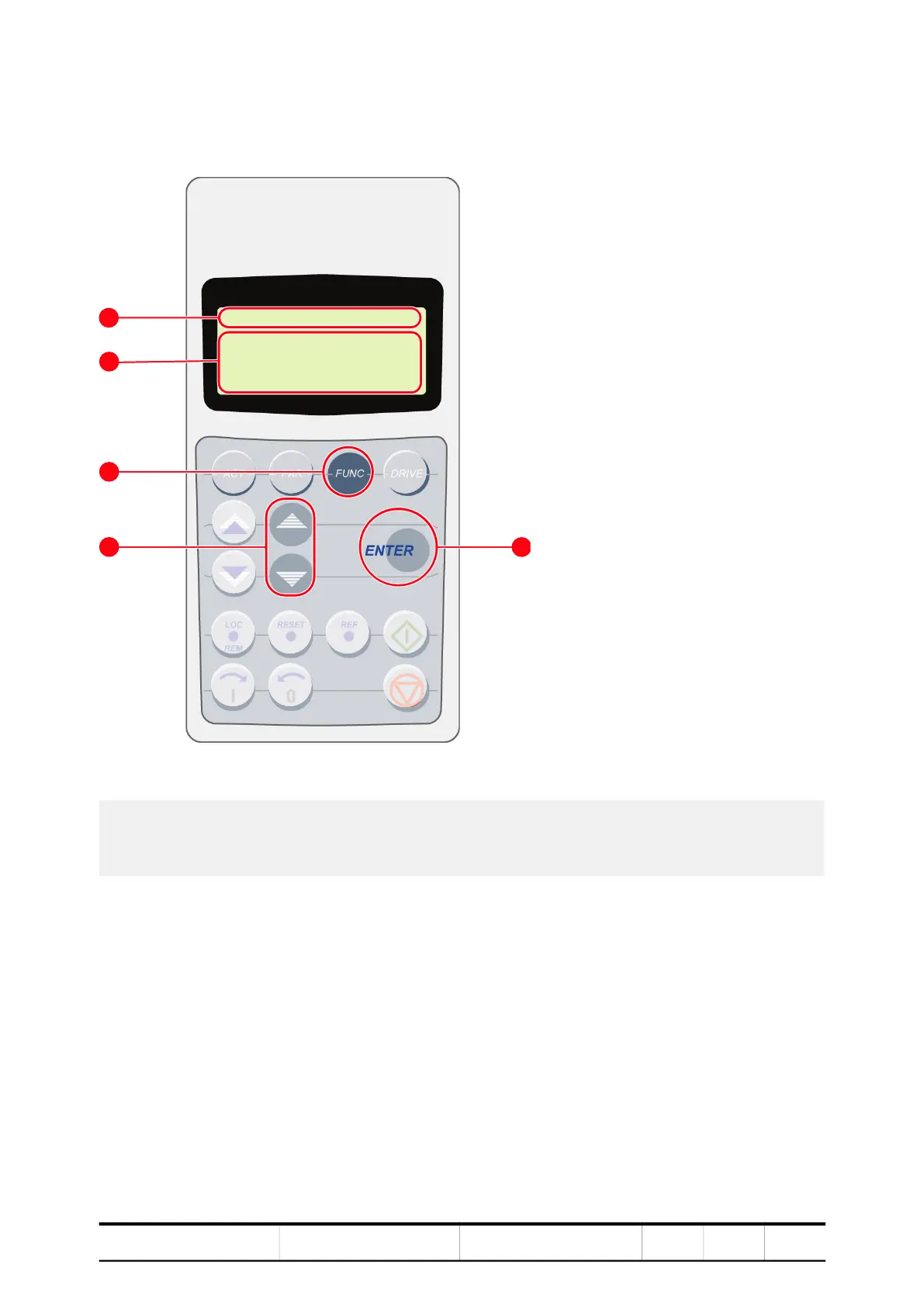

Figure 9-4 Control panel functions for Functions mode
1) Status line
2) Selectable functions
3) Selection key for functions mode
4) Slow navigation key for selecting a line (and
adjusting the contrast)
5) Enter key for confirming the selection
1
2
3
4
UPLOAD <= <=
DOWNLOAD => =>
CONTRAST 4
1 L -> 0.0 rpm
5
