PREVENTIVE AND CORRECTIVE MAINTENANCE
PRODUCT
ACS6000
DOCUMENT KIND
User manual
DOCUMENT ID.
3BHS212794 E01
REV.
N
LANG.
en
PAGE
219/266

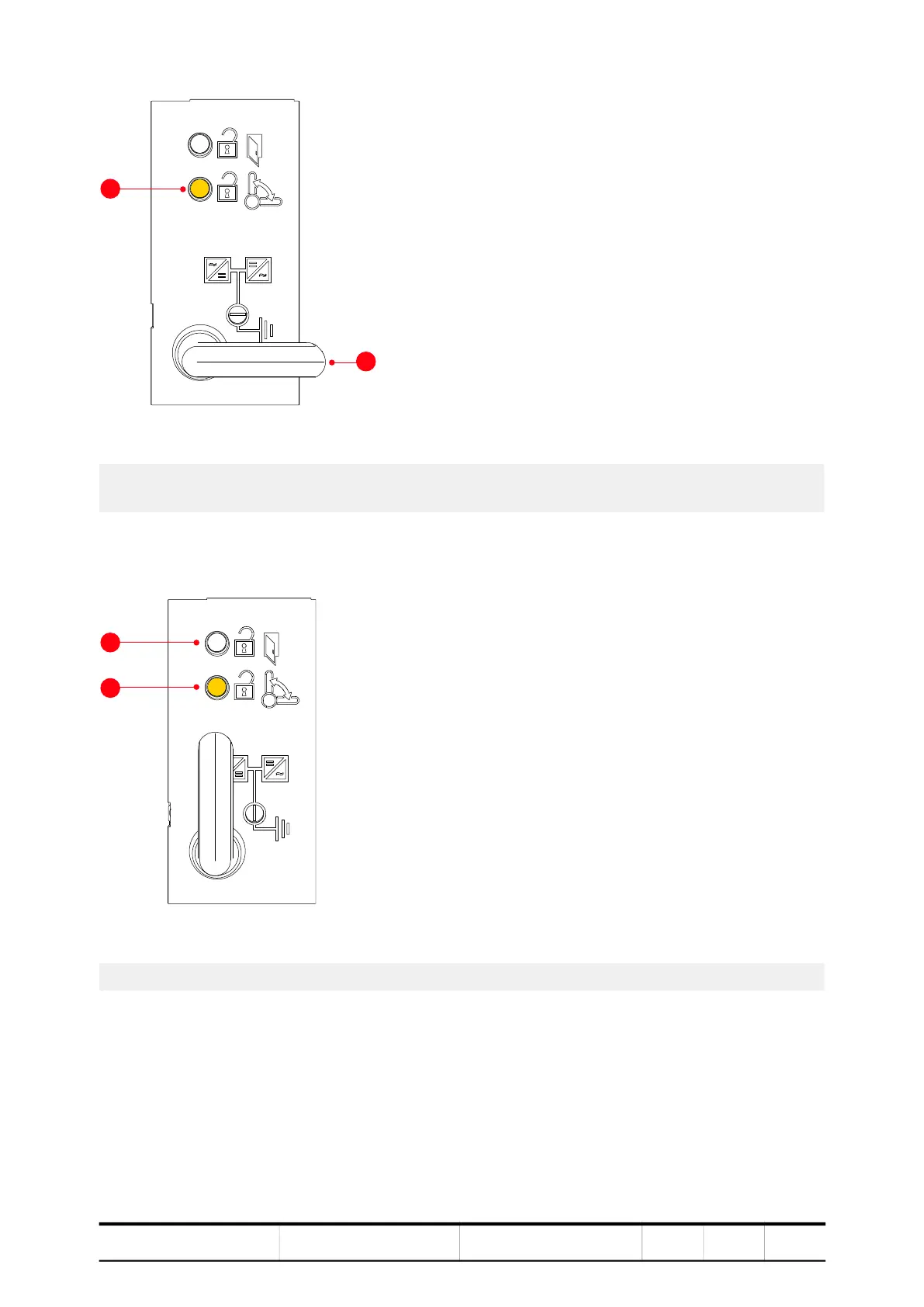

Figure 10-7 Grounding switch ungrounded
6. If the yellow lamp GROUNDING SWITCH UNLOCKED is on, keep the yellow lamp
cap pressed while you turn the grounding switch to the grounded position.
Figure 10-8 Grounding switch grounded
1) Yellow light on: Grounding switch is
unlocked and can be operated
2) Grounding switch: Ungrounded position
1) White lamp 2) Yellow lamp
1
2
1
2
