The control system is configured, customized and tuned with a set of application
parameters. The application parameters are organized in functional groups and
have factory-set default values. The default parameter values are set during
commissioning to the specific application of the drive. The settings activate the
specific control, monitoring and protection functions for the driven process, and
define the signals and data transferred between drive and external equipment.
For more information on the parameters, see the “Appendix G - Signal and
parameter table”.
3.2.5.3. AMC circuit board
The AMC circuit board is the major component of the control system and performs
general drive, motor control, and closed loop functions. The main internal control
hardware and the peripheral input and output interfaces to the customer
communicate with the AMC circuit board via optical fibers.
The circuit board is fitted with a Motorola DSP processor and features two PPCS
and eight DDCS communication channels. The communication channels are used
for high-speed data transfer to the INT circuit boards inside the ARU and INU
(Fig. 3-12).

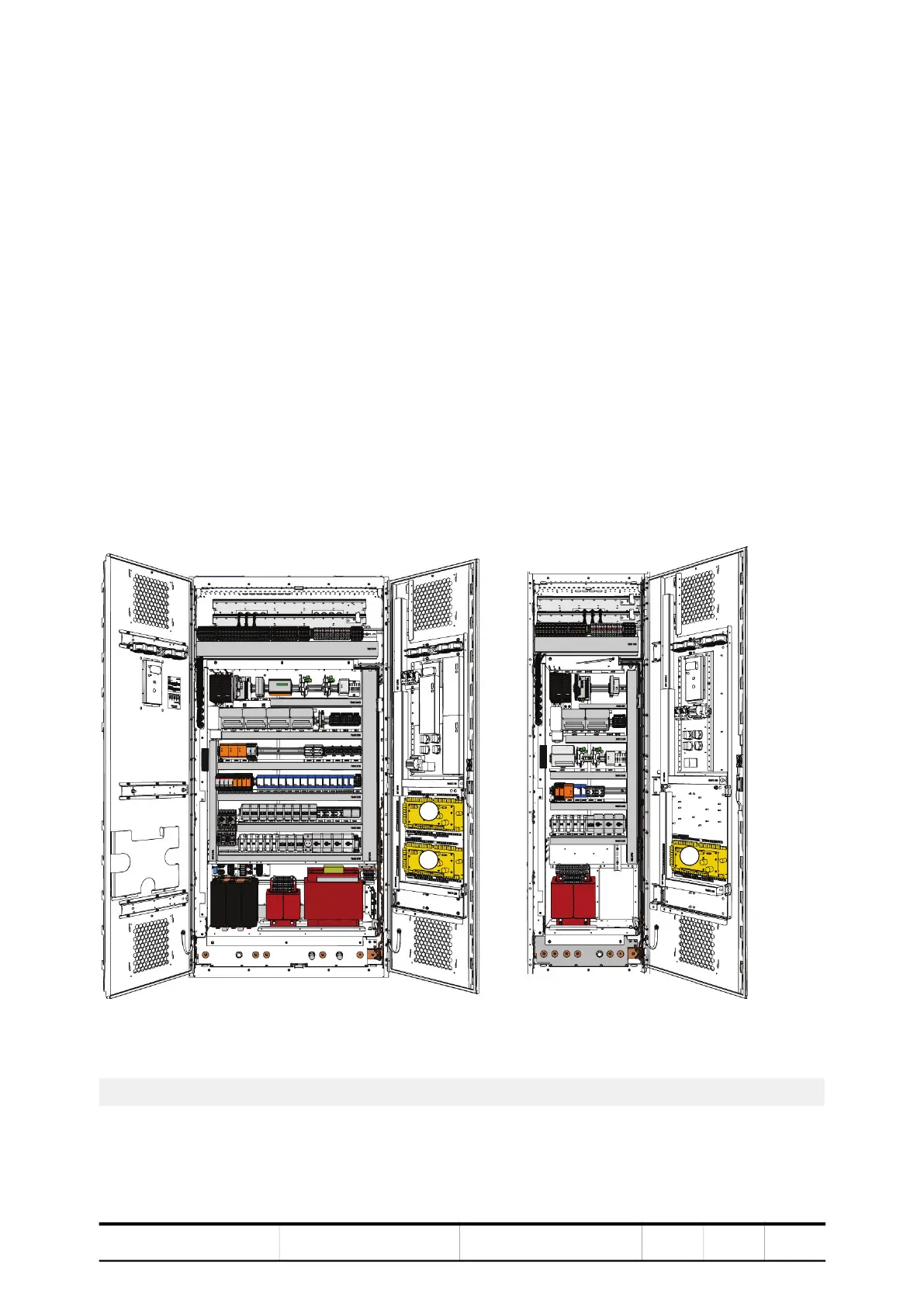

Figure 3-13 Examples of AMC circuit boards in 1000 mm COU (A) and 600 mm COU
(B)
1) AMC circuit board
1
1
