SLC to SCANport Module:

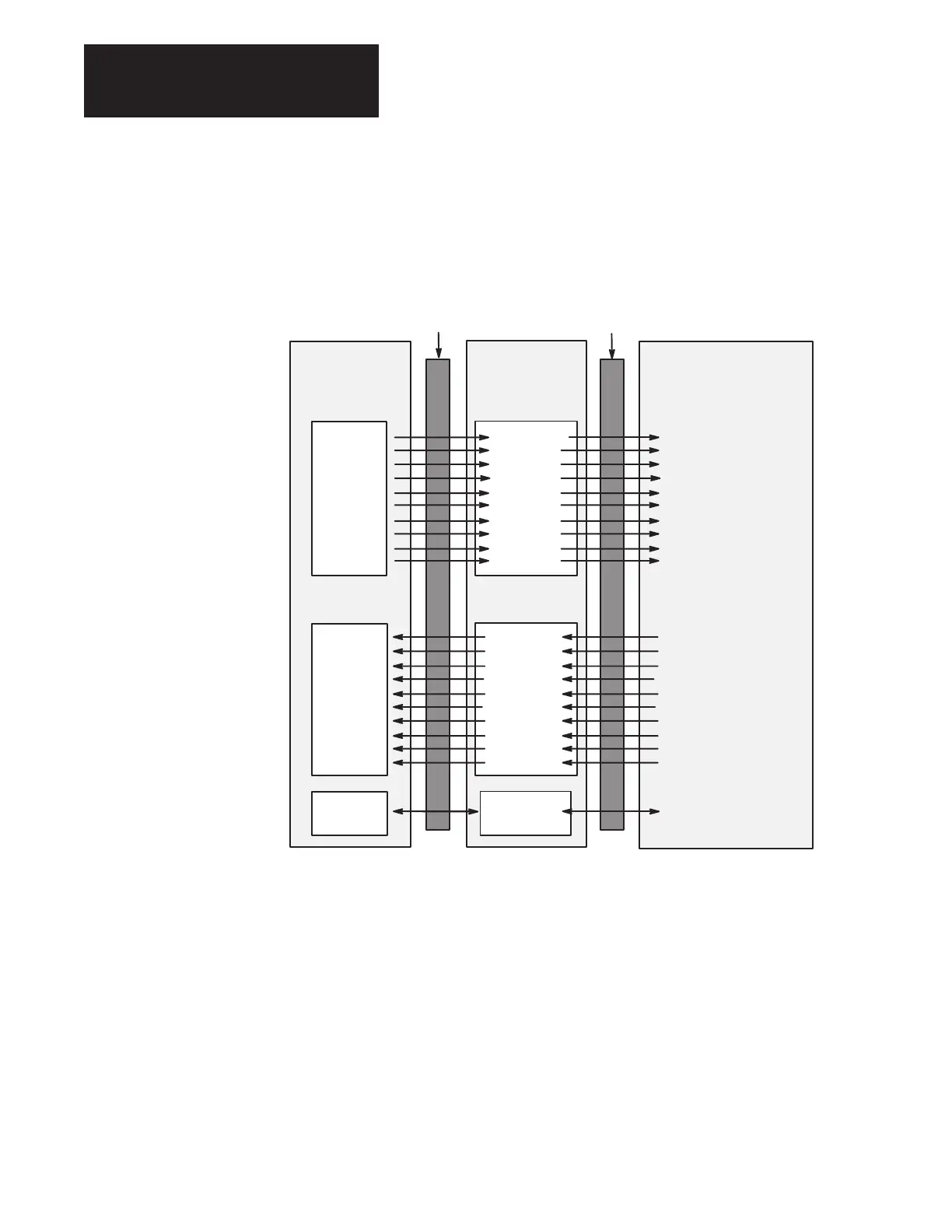

The following figure shows how the I/O image table for the SLC
programmable controller relates to the 1336 FORCE drive. In this
example, the drive is connected to channel 1 of the SLC module in
enhanced mode. If this were an example of basic mode, only the O:1.2,
O:1.3, I:1.2, and I:1.3 entries would be used.
1336 FORCE Drive
Controller
SLC
I/O Image
Output Image
O:1.2
O:1.3
O:1.8
➀
O:1.9
➀
O:1.10
➀
O:1.11
➀
O:1.12
➀
O:1.13
➀
O:1.14
➀
O:1.15
➀
I:1.2
I:1.3
I:1.8
➀
I:1.9
➀
I:1.10
➀
I:1.11
➀
I:1.12
➀
I:1.13
➀
I:1.14
➀
I:1.15
➀
Input Image
Logic Evaluation Block
SP An 2 Sel (p. 367)
Data In A1 (p. 310)
Data In A2 (p. 311)
Data In B1 (p. 312)
Data In B2 (p. 313)
Data In C1 (p. 314)
Data In C2 (p. 315)
Data In D1 (p. 316)
Data In D2 (p. 317)
Logic Status LOW (p. 56)
SP An Output (p. 379)
Data Out A1 (p. 320)
Data Out A2 (p. 321)
Data Out B1 (p. 322)
Data Out B2 (p. 323)
Data Out C1 (p. 324)
Data Out C2 (p. 325)
Data Out D1 (p. 326)
Data Out D2 (p. 327)
SLC to
SCANport
Module
Logic Command
Reference
Datalink A1
➁
Datalink A2
➁
Datalink B1
➁
Datalink B2
➁
Datalink C1
➁
Datalink C2
➁
Datalink D1
➁
Datalink D2
➁
Logic Status
Feedback
Datalink A1
➁
Datalink A2
➁
Datalink B1
➁
Datalink B2
➁
Datalink C1
➁
Datalink C2
➁
Datalink D1
➁
Datalink D2
➁
Backplane
SCANport
➀
Available only in
enhanced mode.
➁
Optionally enabled via
G file in SLC processor.
M Files
Message Handler
Message
Buffers
