Appendix B
CE Conformity
B–4

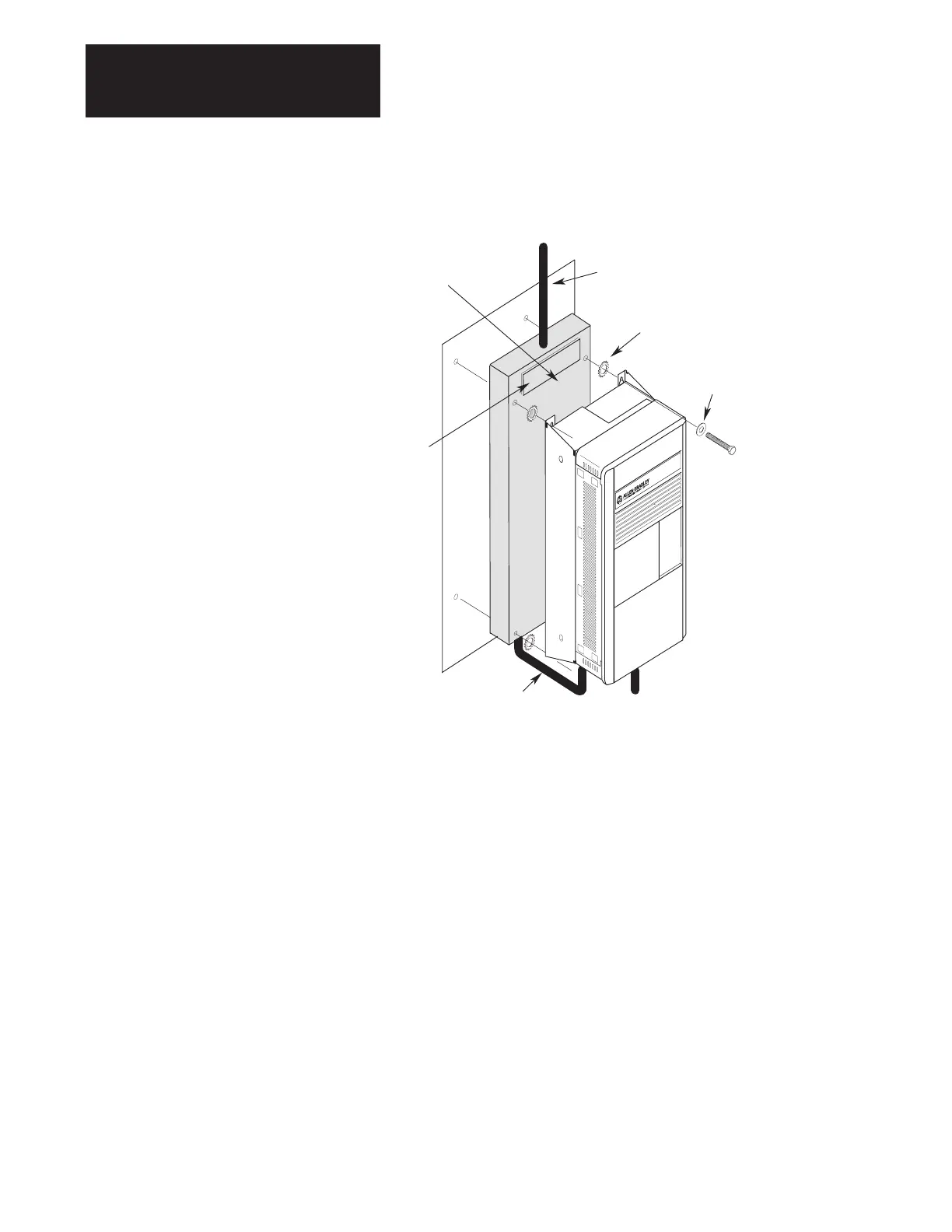

Mechanical Configuration
1 Input power (source to filter) and output power (filter to drive & drive to motor)
wiring must be in conduit or have shielding/armor with equivalent attenuation.
See requirements on page B1
NOTE: 1336 FORCE 40–60 HP, 230V and 60HP, 460V mounted in D Frames are NOT
CE approved and cannot be used with the RFB–80–C filter.
.37 – 45 kW (1 – 60 HP)
Frames B & C
Conduit
1
To Motor
1
Three–Phase Input
1
Access
Panel
Flat Washer
Star Washers
Bolt
Important: A positive electrical bond must
be maintained between drive and filter at
all 4 corners. Star washers can be
eliminated if a positive electrical
bond is assured.
1336 FORCE
To Next Page
