Chapter 6
Troubleshooting
6–6

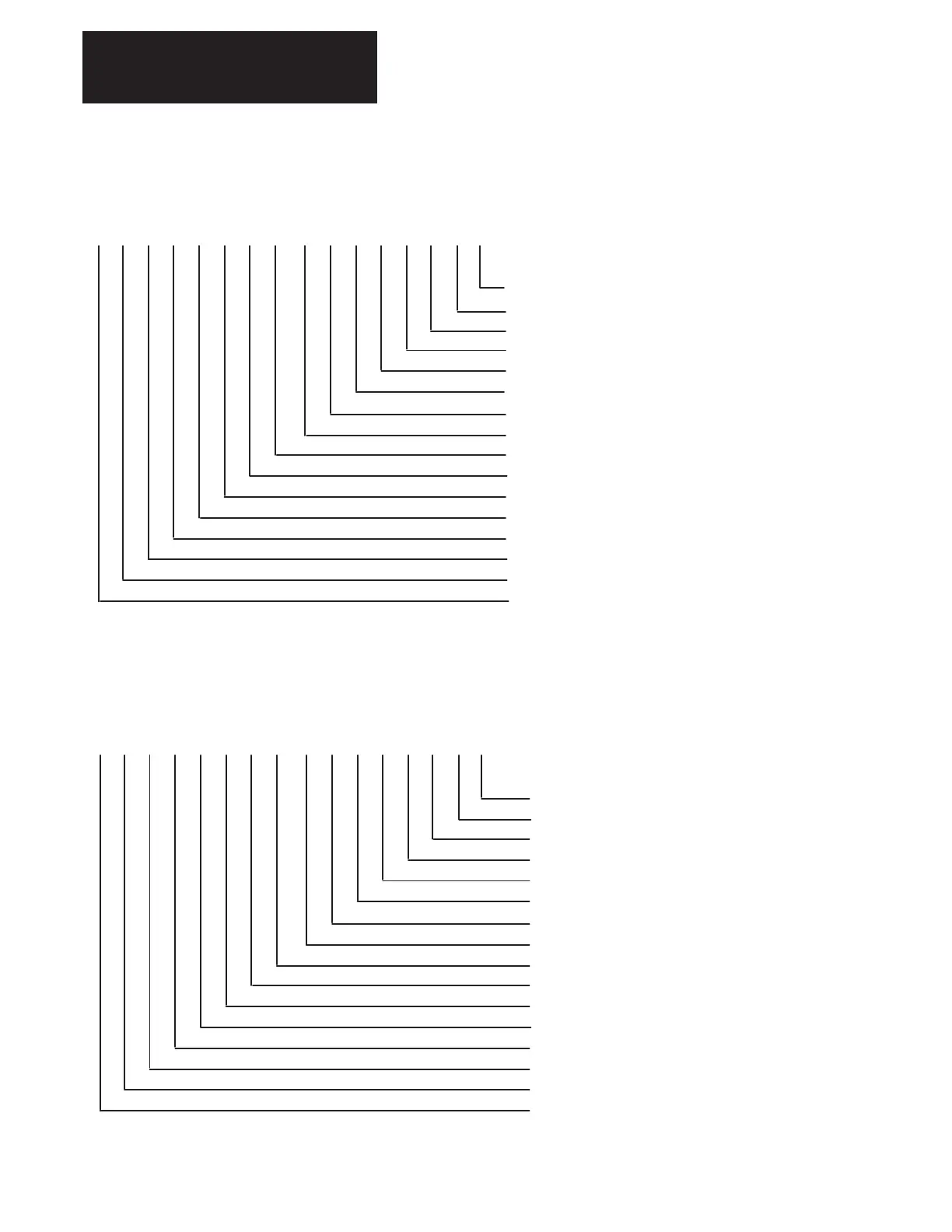

Figure 6.2
Parameter 81 (Non–configurable Fault Status)
DC Bus Overvoltage Trip
Transistor Desaturation Trip
Groundfault Trip
Instantaneous Overcurrent Trip
Adapter Comm Loss detected by CP
Master/Slave Cable Loss
Master/Slave Enable Timeout
Not Used
Adapter Comm Loss detected by VP
Absolute Overspeed
Analog Power Supply Tolerance
Autocommission or Transistor Diagnostic Fail
Inverter Temperature Trip
Software Malfunction detected by VP (Task Overrun)
Software Malfunction detected by VP (Illegal Interrupt)
NOT USED
O O O O O O O O. O O O O O O O O
Bit#
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Figure 6.3
Parameter 80 (Powerup/Diagnostic Fault Status)
CP PROM Failure
CP Internal RAM Failure
CP External RAM Failure
CP Stack RAM Failure
CP/VP Dualport RAM Failure
NOT USED
NOT USED
NOT USED
VP Prom Failure
VP Internal RAM Failure
VP External RAM Failure
VP Stack RAM Failure
VP/CP Dualport RAM Failure
VP/AP Dualport RAM Failure
Base Drive EE Failure
NOT USED
O O O O O O O O. O O O O O O O O
Bit#
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
This word parameter indicates fault conditions in the Drive that CANNOT be configured as warnings. When a bit is set
to “1”, the corresponding condition in the Drive is true, otherwise the condition is false. Bit 0–3 are detected by hardware
and 4–15 are detected by software.
This word parameter indicates a fault condition which has been detected during power up or reset of the drive. Where
the bit is set to “1”, the corresponding condition in the Drive is true, otherwise the condition is false.
