Chapter 3
Programming Terminals
3–2

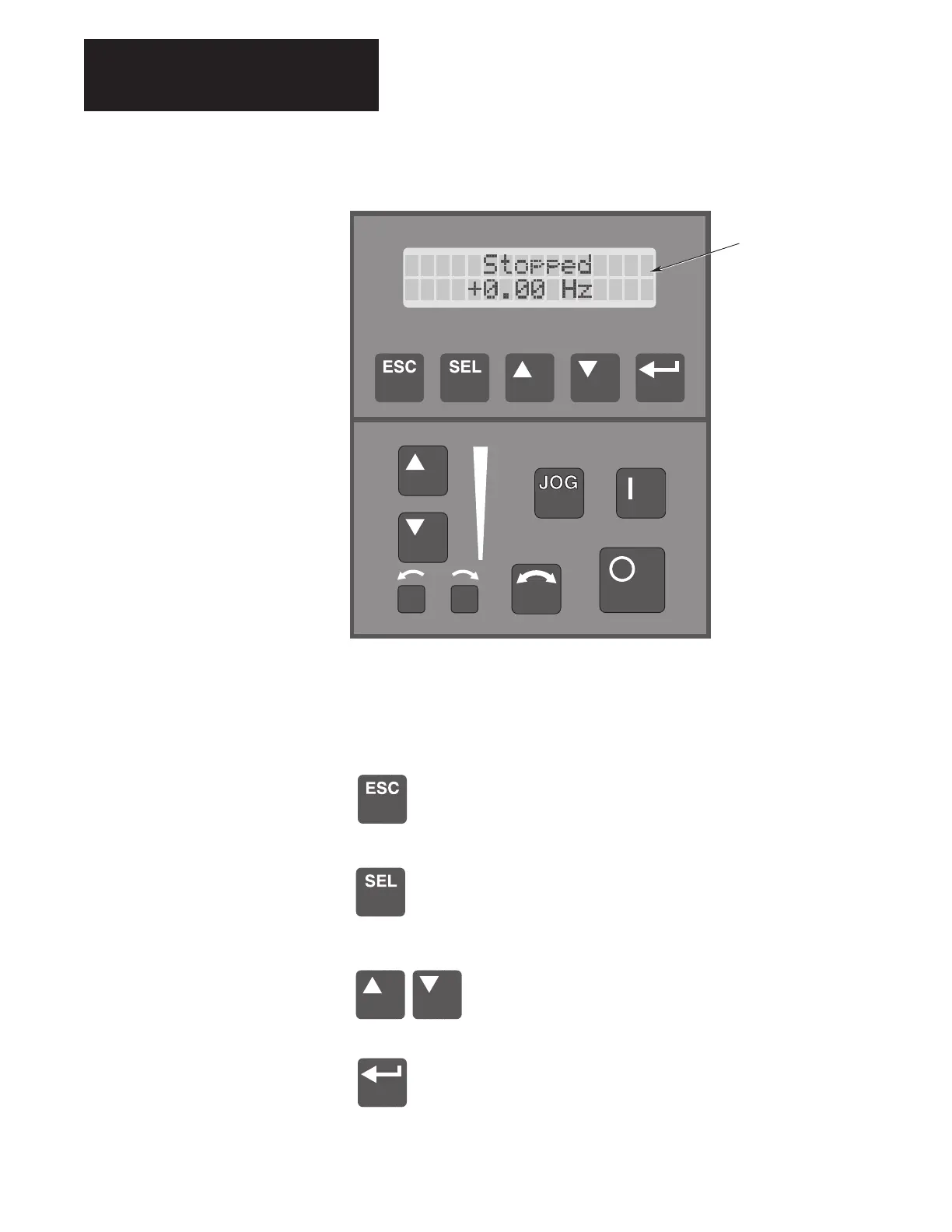

Figure 3.2
HIM Front Panel
LCD Display
AB0273A
Key Descriptions
Descriptions of the keys used with the 1336 FORCE Drive are presented in
the following paragraphs. Remaining keys that are not described (shaded in
figure above) are not used and reserved for future use.
Escape
When pressed, the ESCape key will cause the programming
system to go back one level in the menu tree.
Select
Pressing the SELect key alternately causes the top or bottom
line of the display to become active. The flashing first character
indicates which line is active.
Increment/Decrement
These keys are used to increment and decrement a
value or scroll through different groups or parameters.
Enter
When pressed, a group or parameter will be selected or a
parameter value will be entered into memory. After a parameter
has been entered into memory, the top line of the display will
automatically become active, allowing another parameter (or
group) to be chosen.
AB0269A
AB0270A
AB0282A
AB0295A AB0267A
