Serial Communications Module:

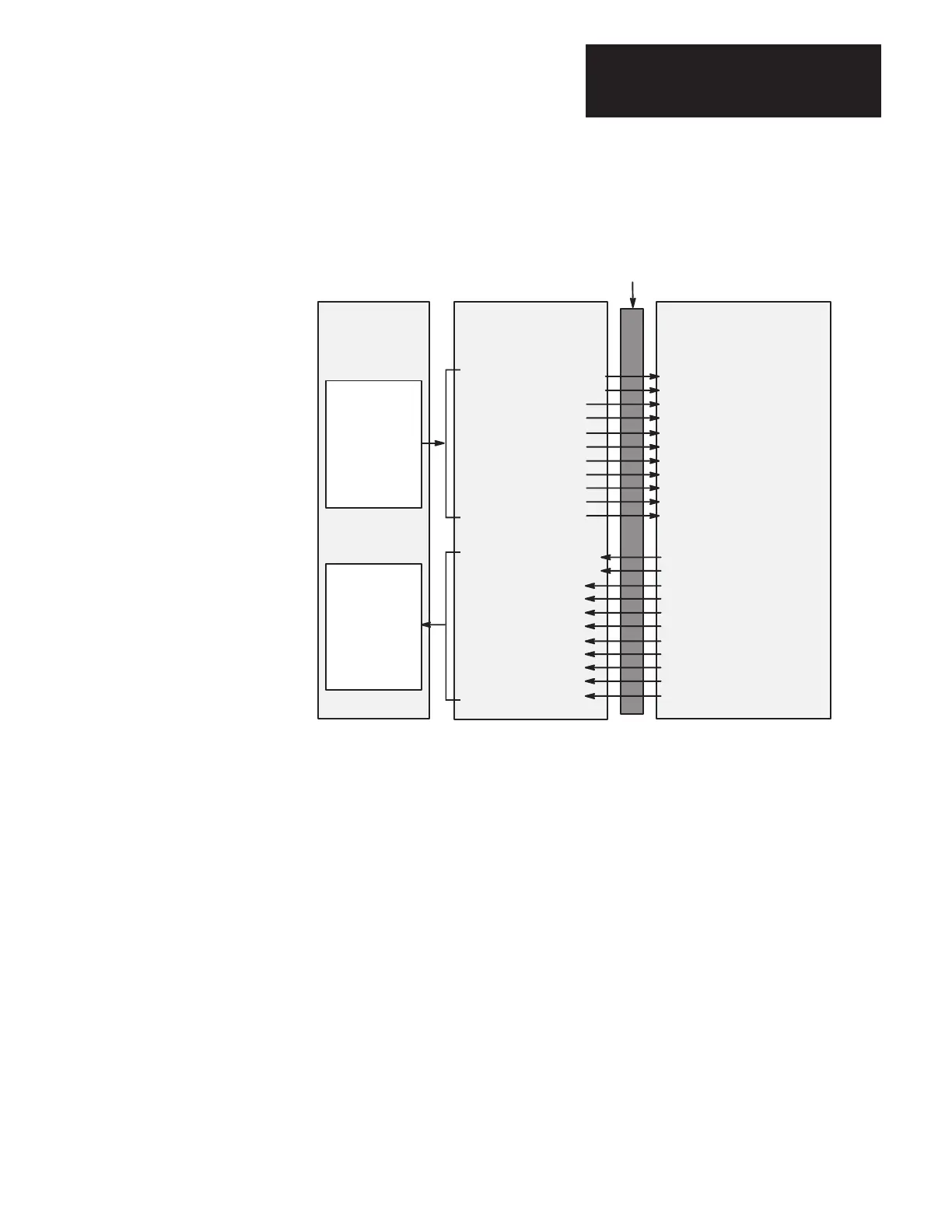

The following figure shows how the I/O image table for the programmable
controller relates to the 1336 FORCE drive when a Serial Communications
Module is used.
1203–Gx2
DF1/DH485 to SCANport
N40:0–63 BTW Emulation
N41:0
➀
Logic Command
N41:1
➀
Reference
N41:2
➀
Datalink A1
N41:3
➀
Datalink A2
N41:4
➀
Datalink B1
N41:5
➀
Datalink B2
N41:6
➀
Datalink C1
N41:7
➀
Datalink C2
N41:8
➀
Datalink D1
N41:9
➀
Datalink D2
1336 FORCE Drive
PLC, SLC,
or PC
DF1/DH485
Serial Messages
(Write)
DF1/DH485
Serial Messages
(Read)
Message Handler
Logic Evaluation Block
SP An 2 Sel (p. 367)
Data In A1 (p. 310)
Data In A2 (p. 311)
Data In B1 (p. 312)
Data In B2 (p. 313)
Data In C1 (p. 314)
Data In C2 (p. 315)
Data In D1 (p. 316)
Data In D2 (p. 317)
Message Handler
Logic Status Low (p. 56)
SP An Output (p. 379)
Data Out A1 (p. 320)
Data Out A2 (p. 321)
Data Out B1 (p. 322)
Data Out B2 (p. 323)
Data Out C1 (p. 324)
Data Out C2 (p. 325)
Data Out D1 (p. 326)
Data Out D2 (p. 327)
N40:0–63 BTR Emulation
N41:0
➀
Logic Status
N41:1
➀
Feedback
N41:2
➀
Datalink A1
N41:3
➀
Datalink A2
N41:4
➀
Datalink B1
N41:5
➀
Datalink B2
N41:6
➀
Datalink C1
N41:7
➀
Datalink C2
N41:8
➀
Datalink D1
N41:9
➀
Datalink D2
SCANport
➀
Optionally enabled using
DIP switches on the adapter.
