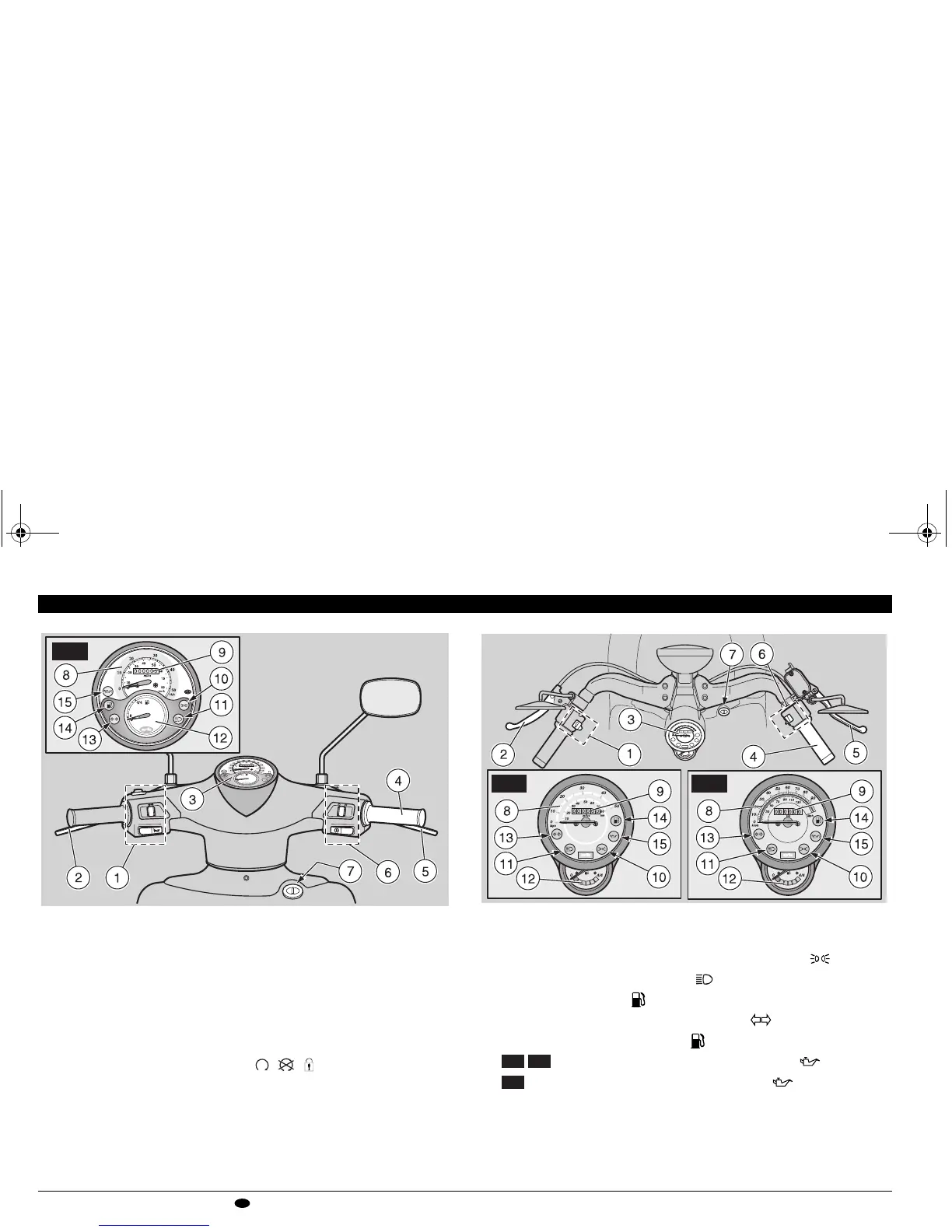

ARRANGEMENT OF THE CONTROLS / INSTRUMENTS AND INDICATORS
KEY
1) Electrical controls on the left side of the handlebar
2) Rear brake lever
3) Instruments and indicators
4) Throttle grip
5) Front brake lever
6) Electrical controls on the right side of the handlebar
7)Ignition switch / steering lock (--)
8) Speedometer
9) Total kilometers odometer
10) Green low beam and parking light warning light ( )
11) Blue high beam warning light ( )
12) Fuel level indicator ( )
13) Green direction indicator warning light ( )
14) Amber low fuel warning light ( )
15) Red 2 stroke oil reserve warning light ( )
16) Red engine oil pressure warning light ( )
M50
MC50
MC150
M50 MC50
MC150
