APRILIA MOJITO 150 - MANUEL 2 User Manual

97
use and maintenance Mojito 50 - 150
USA
" Extract the bulb mount in question:
" Extract and replace the bulb with
another of the same type.
DASHBOARD LIGHTING BULBS
NOTE To replace the two upper
dashboard lights, simply remove the lower
handlebar cover.
" Remove the lower handlebar cover, see
page 76 (REMOVING THE LOWER
HANDLEBAR COVER ).
NOTE Extract one bulb mount at a time
to avoid refitting them in the wrong order.
" Extract the bulb mount from the part of
the dashboard which is not being
illuminated:
" Extract and replace the bulb with
another of the same type.
CHANGING
THE DASHBOARD BULBS
Carefully read page 93 (BULBS).
NOTE Before replacing a bulb check the
fuses, see page 91 (CHANGING THE
FUSES).

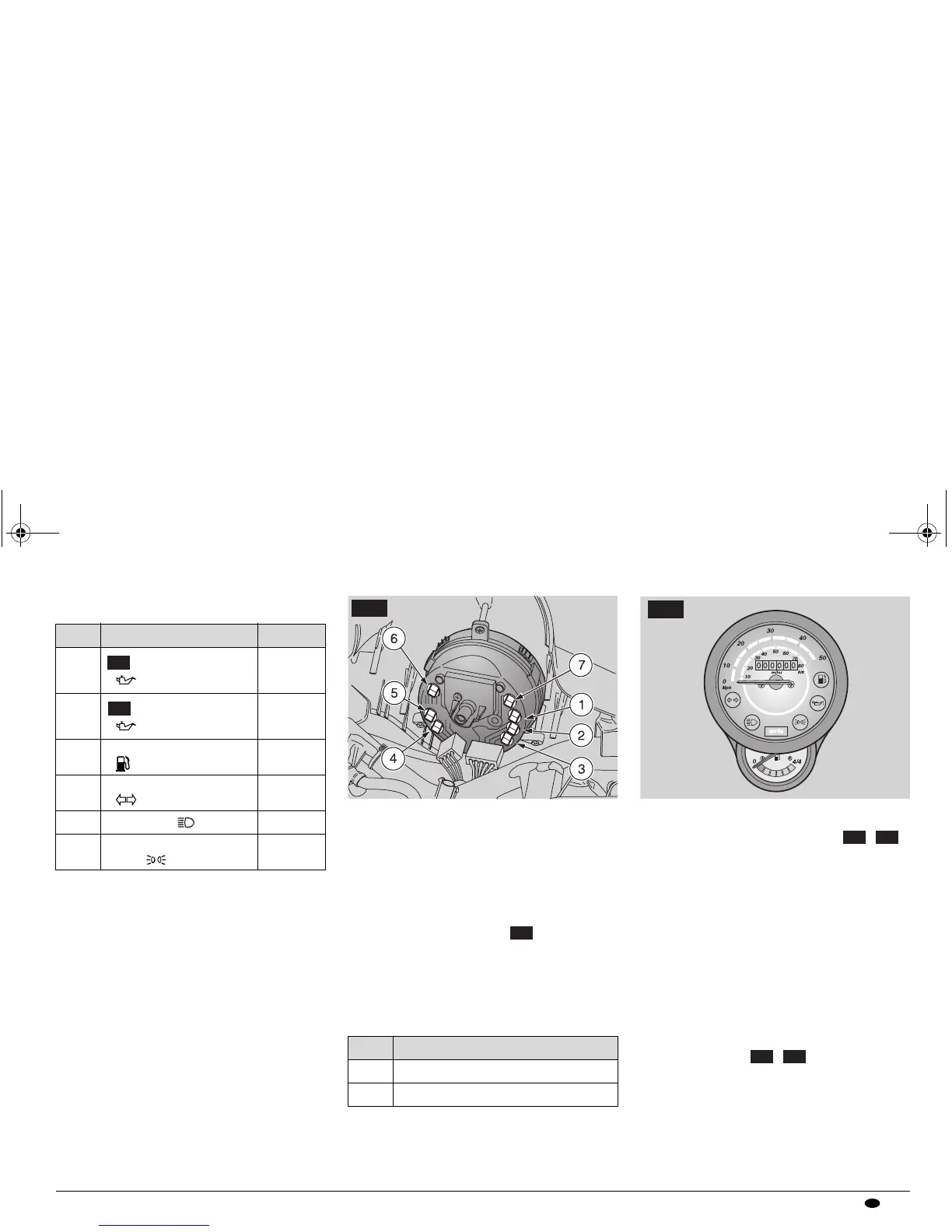

The dashboard contains:
√ indicator light bulbs;
√ dashboard lights.
To replace:
" Partially remove the dashboard, see
page 78 (PARTIALLY REMOVING THE
DASHBOARD ).
WARNING LIGHT BULBS
NOTE Extract one bulb mount at a time
to avoid refitting them in the wrong order.
Pos. Warning light Colour
1
2 stroke oil reserve
()
red
1
Engine oil pressure
()
red
2
Low fuel
()
amber
3
Direction indicators
()
green
4 High beam ( ) blue
5
Parking lights and low
beam ( )
green
M50
MC150
Pos. Lit part
6 Upper right part
7 Upper left part
M50
M50
MC50
MC50 MC150
MC50 MC150
APRum_MOJ50_150#02_####.book Page 97 Tuesday, August 3, 2004 9:25 AM
