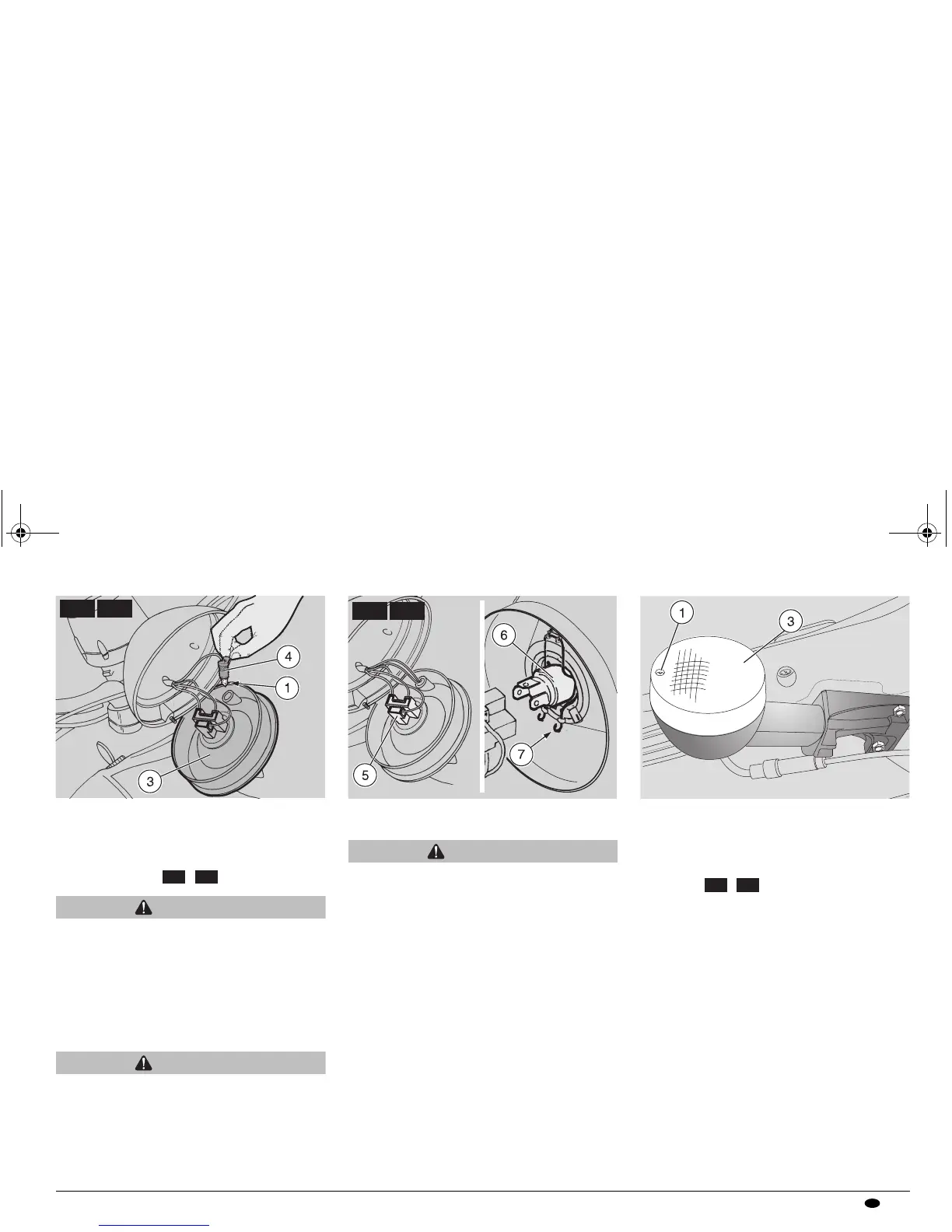

To access the bulbs:
" Remove the headlight metal ring, see
page 76 (REMOVING THE HEADLIGHT
METAL RING ).
CAUTION
Work with care.
Do not force the electrical cables.
Partially remove the reflector (3).
To replace:
PARKING LIGHT BULB
CAUTION
To extract the bulb socket, do not pull
the electric wires.
" Grip the bulb socket (4), and pull it out of
its seat.
" Extract the parking light bulb (1) and
replace it with one of the same type.
LOW/HIGH BEAM BULB (HALOGEN)
CAUTION
To extract the bulb electric connector,
do not pull its wires.
" Grasp the bulb connector (5), pull it and
disconnect it from the bulb (6).
" Release the clip (7) securing the bulb
(6).
" Extract the bulb from its seat.
To refit:
NOTE Fit the bulb into its socket,
making sure the locators coincide.
" Fit a bulb of the same type.
" Refit the clip (7).
" Connect the bulb connector (5).
CHANGING THE FRONT AND REAR
DIRECTION INDICATOR BULBS
Carefully read page 93 (BULBS).
NOTE Before replacing bulb,
check the fuses, see page 91 (CHANGING
THE FUSES).
To replace:
" Unscrew and remove the screw (1).
NOTE When removing the protection
screen, make sure not to damage or break
the snap tangs (2).
" Remove the protection screen (3).
NOTE When refitting, make sure the two
tangs (2) fit fully into their recesses.
MC50 MC150
MC50 MC150
MC50 MC150
M50 MC50
