use and maintenance Mojito 50 - 150
USA
80

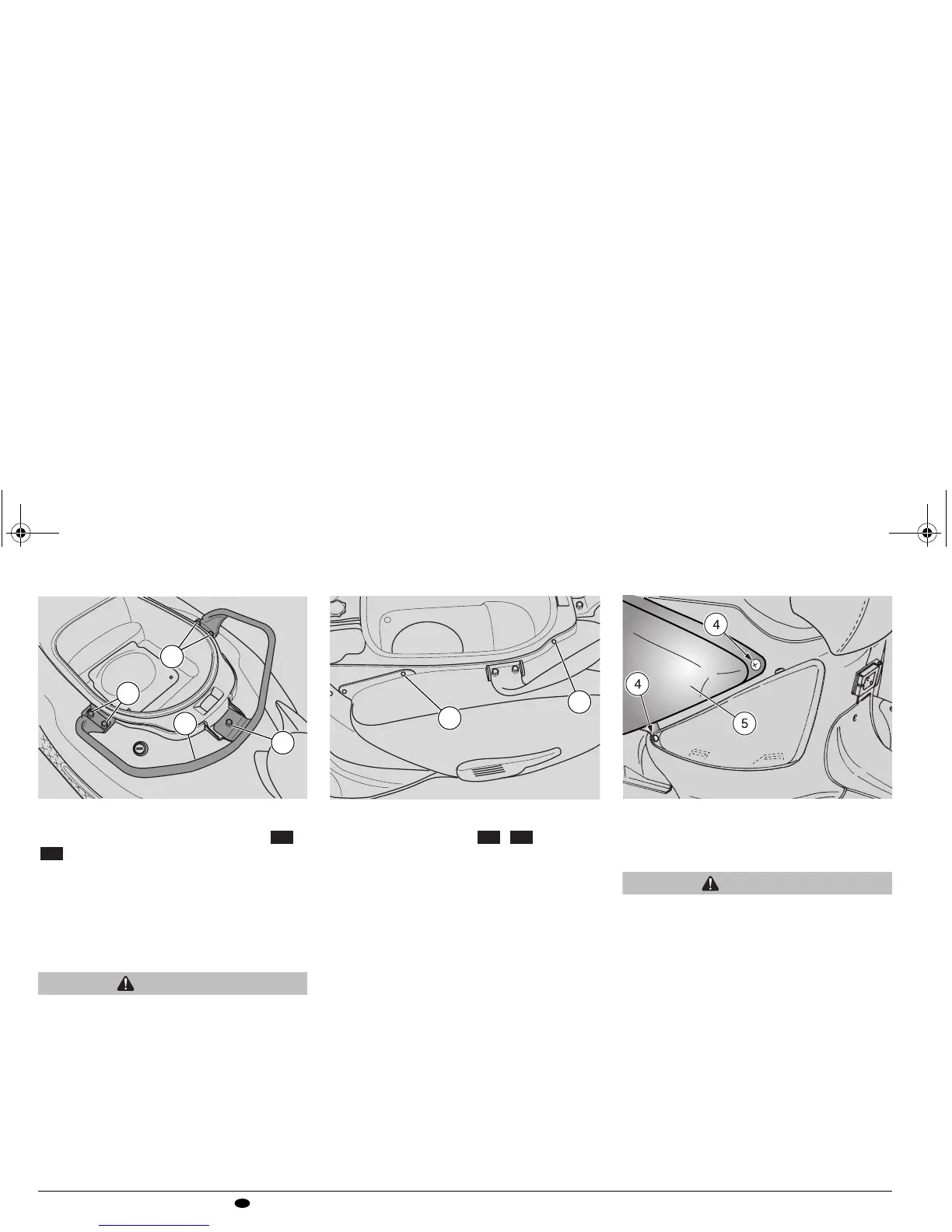

REMOVING
THE PASSENGER GRAB RAIL
" Lift the saddle, see page 43
(UNLOCKING / LOCKING THE
SADDLE).
" Unscrew and remove the five screws (1)
" Remove the passenger grab rail (2) from
the rear engine cover.
CAUTION
Handle the chrome-plated parts with
care to avoid scratching or damaging
them.
REMOVING
THE REAR COVER
" Remove the passenger grab rail see
beside (REMOVING THE PASSENGER
GRAB RAIL).
" $ Unscrew and remove the two screws
(3) securing the upper rear cover (5).
" $ Unscrew and remove the two screws
(4) securing the rear cover (5) at the
front.
NOTE Before completely removing the
rear cover (5) disconnect the rear light
cabling connector.
CAUTION
Handle the painted parts with care to
avoid scratching or damaging them.
NOTE Before refitting the rear cover (5),
reconnect the rear light cabling connector.
1
01
2
01
MC50
MC150
3
3
MC50 MC150
APRum_MOJ50_150#02_####.book Page 80 Tuesday, August 3, 2004 9:25 AM
