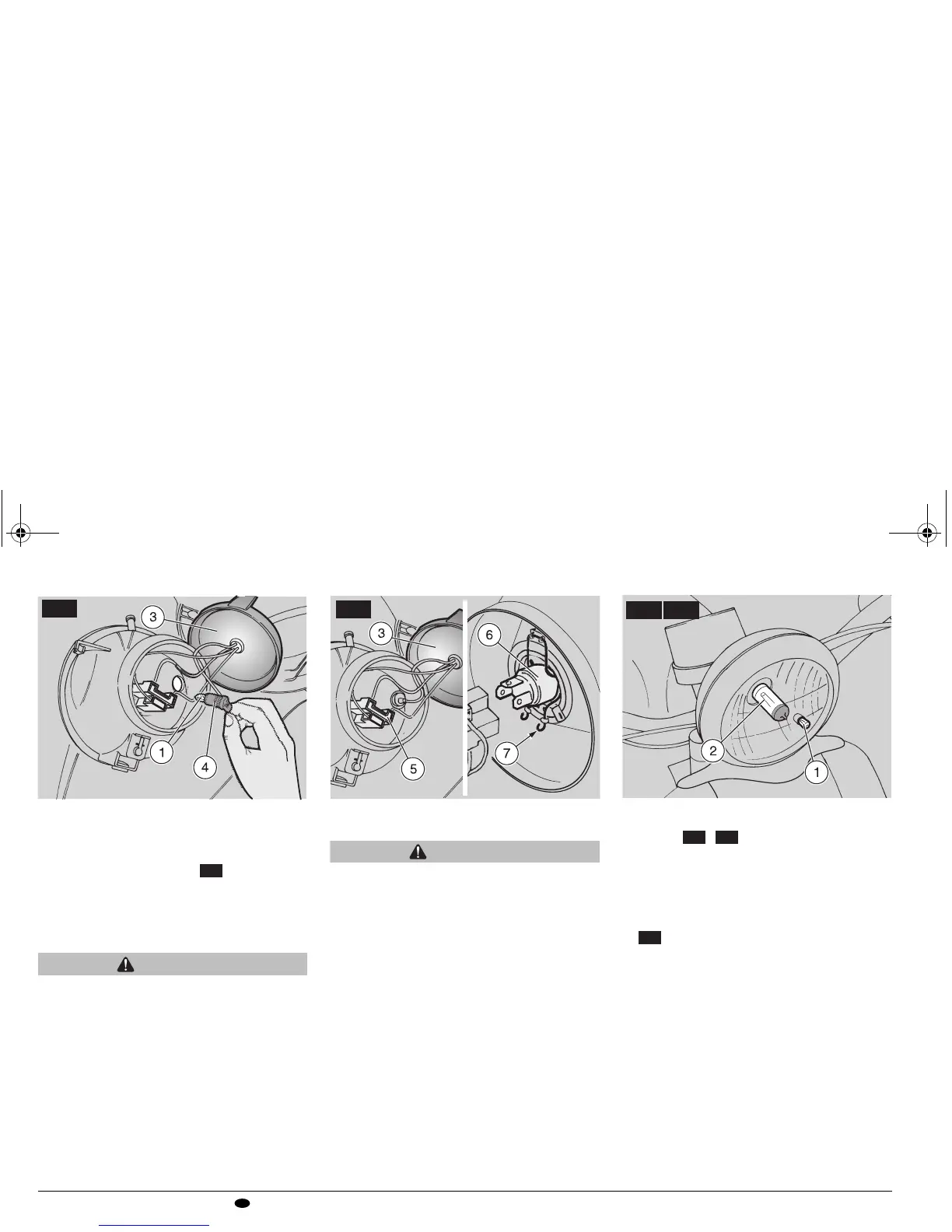

To access the bulbs:
" Remove the lower handlebar cover, see
page 76 (REMOVING THE LOWER
HANDLEBAR COVER ).
" Move aside the dust cover by hand (3).
To replace:
PARKING LIGHT BULB
CAUTION
To extract the bulb socket, do not pull
the electric wires.
" Grip the bulb socket (4), and pull it out of
its seat.
" Extract the parking light bulb (1) and
replace it with one of the same type.
LOW/HIGH BEAM BULB (HALOGEN)
CAUTION
To extract the bulb electric connector,
do not pull its wires.
" Grasp the bulb connector (5), pull it and
disconnect it from the bulb (6).
" Release the clip (7) securing the bulb
(6).
" Extract the bulb from its seat.
To refit:
NOTE Fit the bulb into its socket,
making sure the locators coincide.
" Fit a bulb of the same type.
" Refit the clip (7).
" Connect the bulb connector (5).
CHANGING THE HEADLIGHT
BULBS
Carefully read page 93 (BULBS).
The headlight contains:
√ a parking light bulb (1);
√ a low/high beam bulb / (2) (halogen
).
M50
M50
M50
MC50 MC150
MC50 MC150
MC150
