75
use and maintenance Mojito 50 - 150
USA

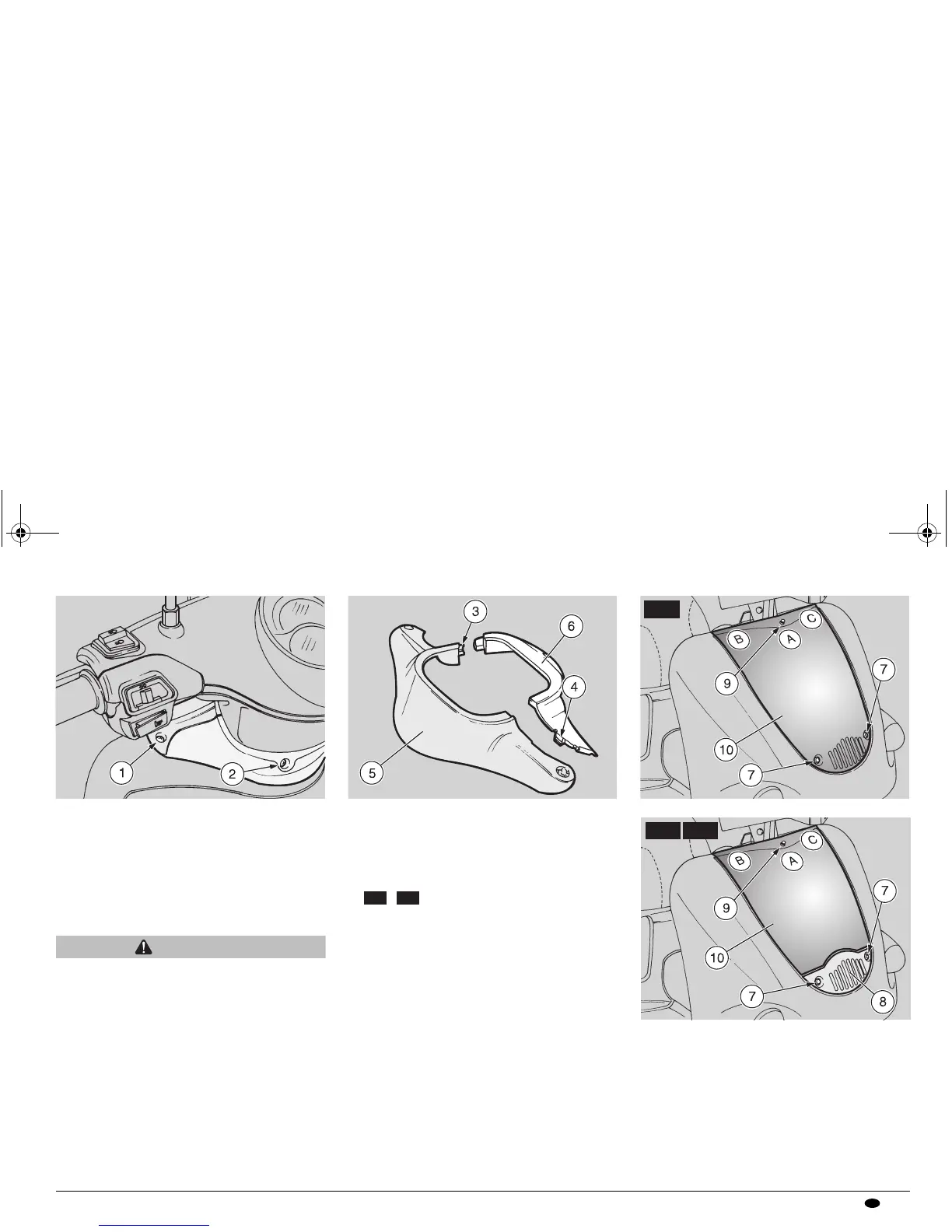

REMOVING THE FRONT COVER
Carefully read page 63
(MAINTENANCE).
" Place the vehicle on its centre stand.
" !Unscrew and remove the screw (1).
" Unscrew and remove the screw (2)
CAUTION
Work carefully.
Do not damage the tangs or their
matching recesses.
Handle the plastic and painted parts
with care, to avoid scratching or
damaging them.
" Free the couplings (3) and (4) from their
recesses and remove the two collars (5)
and (6).
" Unscrew and remove the two lower
screws (7).
" Remove the spoiler (8).
" Unscrew and remove the upper screw
(9), taking care to retain the washer.
NOTE To free the front cover (10) from
its side couplings, proceed as follows at
the same time.
" Press in ≈A∆ and pull out ≈B∆.
" Press in ≈A∆ and pull out ≈C∆.
MC50 MC150
M50
MC50 MC150
APRum_MOJ50_150#02_####.book Page 75 Tuesday, August 3, 2004 9:25 AM
