Chapter 2: Installation
20 2X-A Series Installation Manual

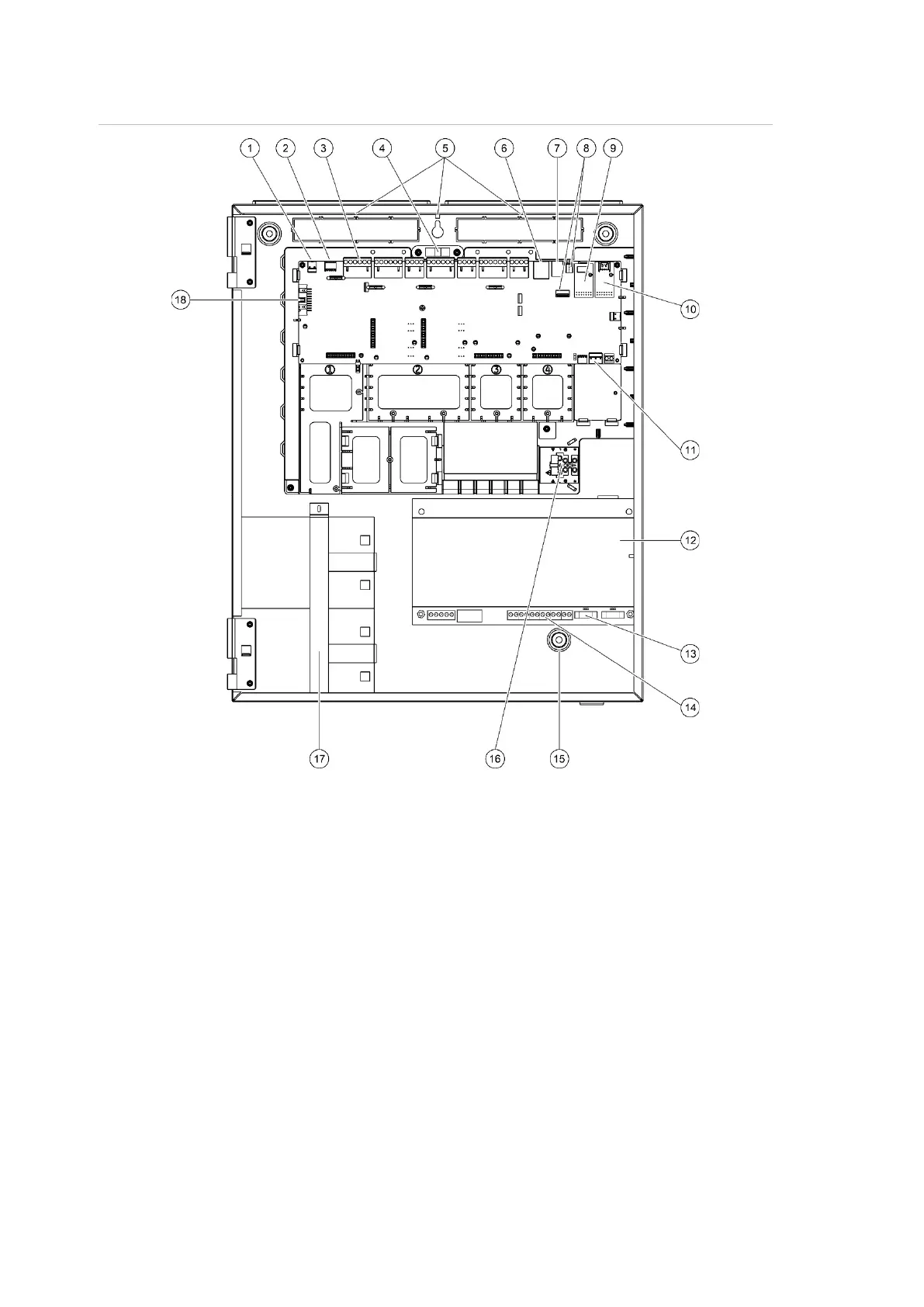

Figure 5: Large cabinet and PCB layout (with 10 A power supply)
. 24V connector
. COM2 serial port
. Loop and fire system connectors
. Spirit level
. Earth studs
. Ethernet connector
. USB type B connector
. USB type A connectors
. COM0 serial port and interface connector
10. COM1 serial port and interface connector
11. Power supply connector
12. Power supply
13. Battery fuse and battery selection jumper
14. Battery connector
15. Mounting holes
16. Mains terminal block and fuse
17. Battery area (with battery bracket)
18. User interface connector
