R5906112 /15 UDX108

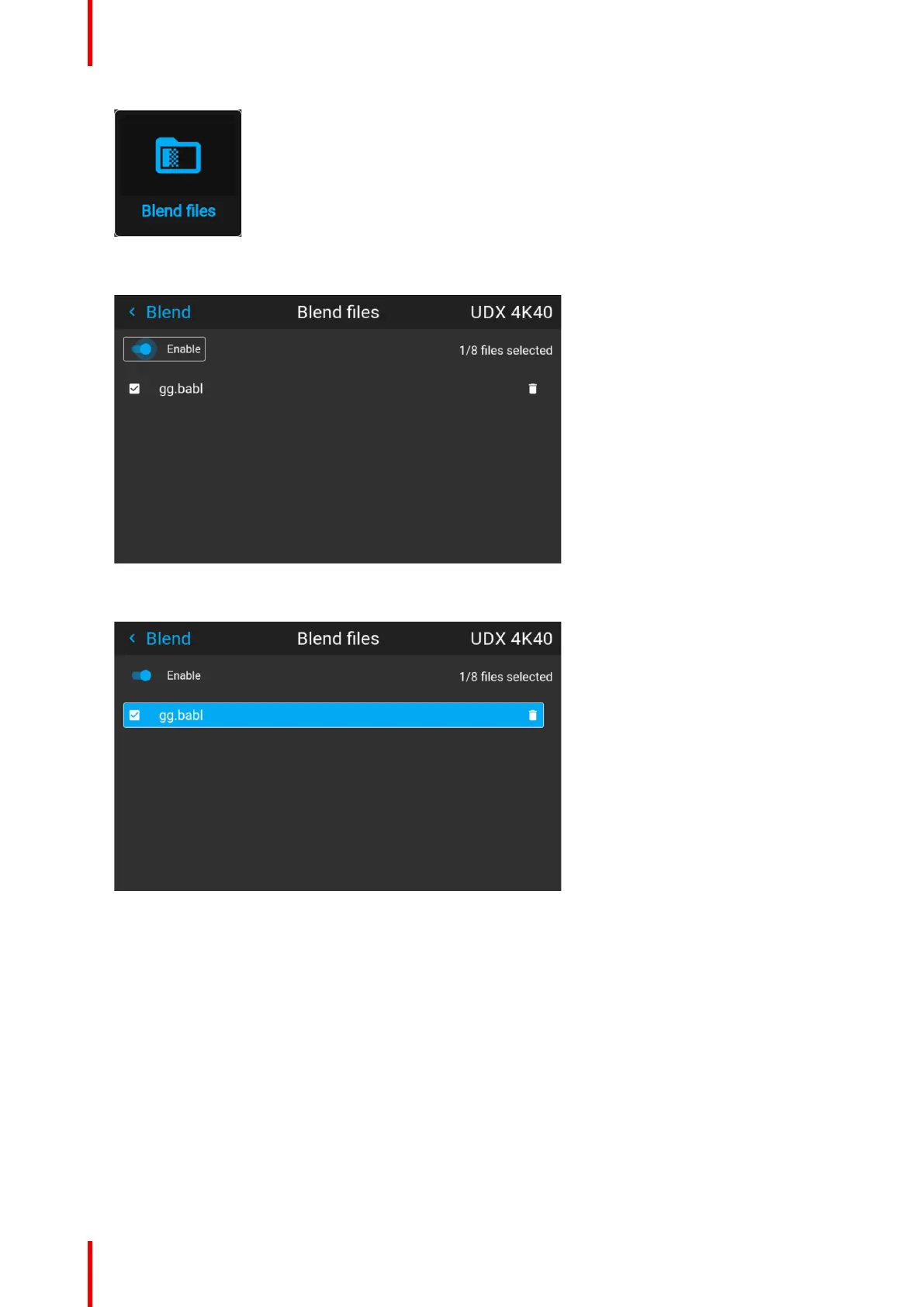

Image 8–70 Blend and mask menu, Blend files
The Blend Files menu is displayed.
Image 8–71 Example of the blend files menu
2. If any custom Blend files are available, select the desired file.
Image 8–72
3. To enable the selected blend file, make sure the Enable slider is set to the right. The color of the slider
becomes blue when enabled.
8.12.4 Basic black level adjustment
About adjusting the black level
The purpose of the black level adjustment is to align the black levels in the overlapped regions with the black
levels in the other regions.
This is needed because the black levels will be brighter in the blend zones, since multiple projectors will
project on the same screen area.
The size of the black level area is calculated automatically from the blend zones. This is done by using the
start position and size of each edge of the blend and adding an additional size of 8 pixels to reduce the effect
known as "sea of mirrors".
GUI – Installation
