2.1 Getting to know the projector
Orientation convention
This manual refers to the left side of the projector as the side at your left hand when standing behind the
projector and looking at the projection screen in front of the projector.
Image 2–1
T Top
L Left
F Front
R Right
B Back

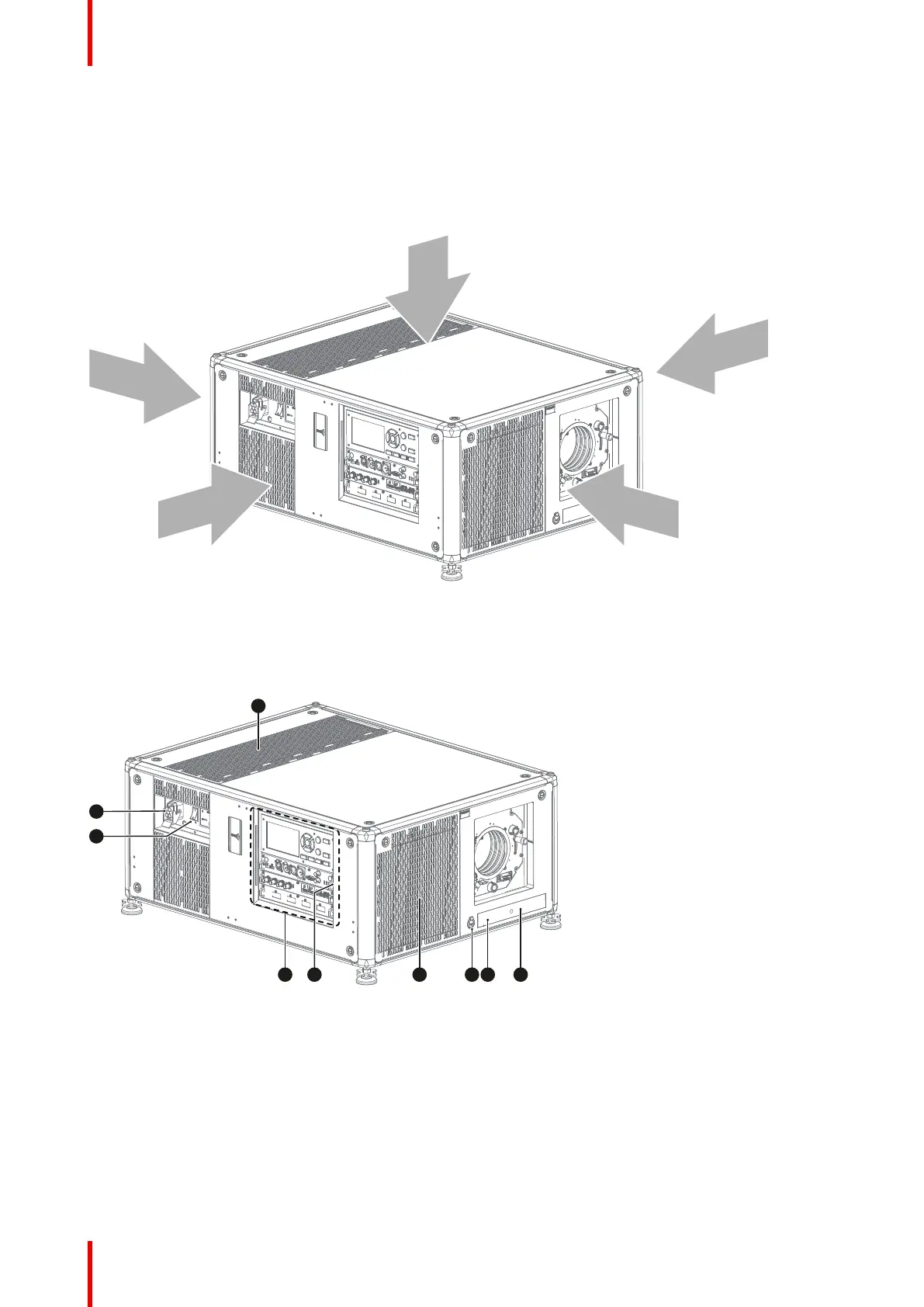

Projector component location
Image 2–2
1 Power input socket
2 Power On/Off switch
3 Input & Communication module
4 IR receiver projector right side
5 Dust filter front air inlet
6 Auxiliary connector (for external shutter, DMX, ...)
7 IR receiver projector front side
8 Distance meter (optional)
9 Dust filter top air inlet
For detailed info about the Input & Communication module see chapter “Input & Communication”, page 39.
Projector airflow
The projector has 4 air inlet channels and 2 air outlets. The air outlets are located at the rear of the projector.
The air inlets are located at the top, bottom and right side of the projector.
