4.4 Communication connections
Communication Panel
12V 1A
321 4 5 6 7 8 9 10 11 12 13

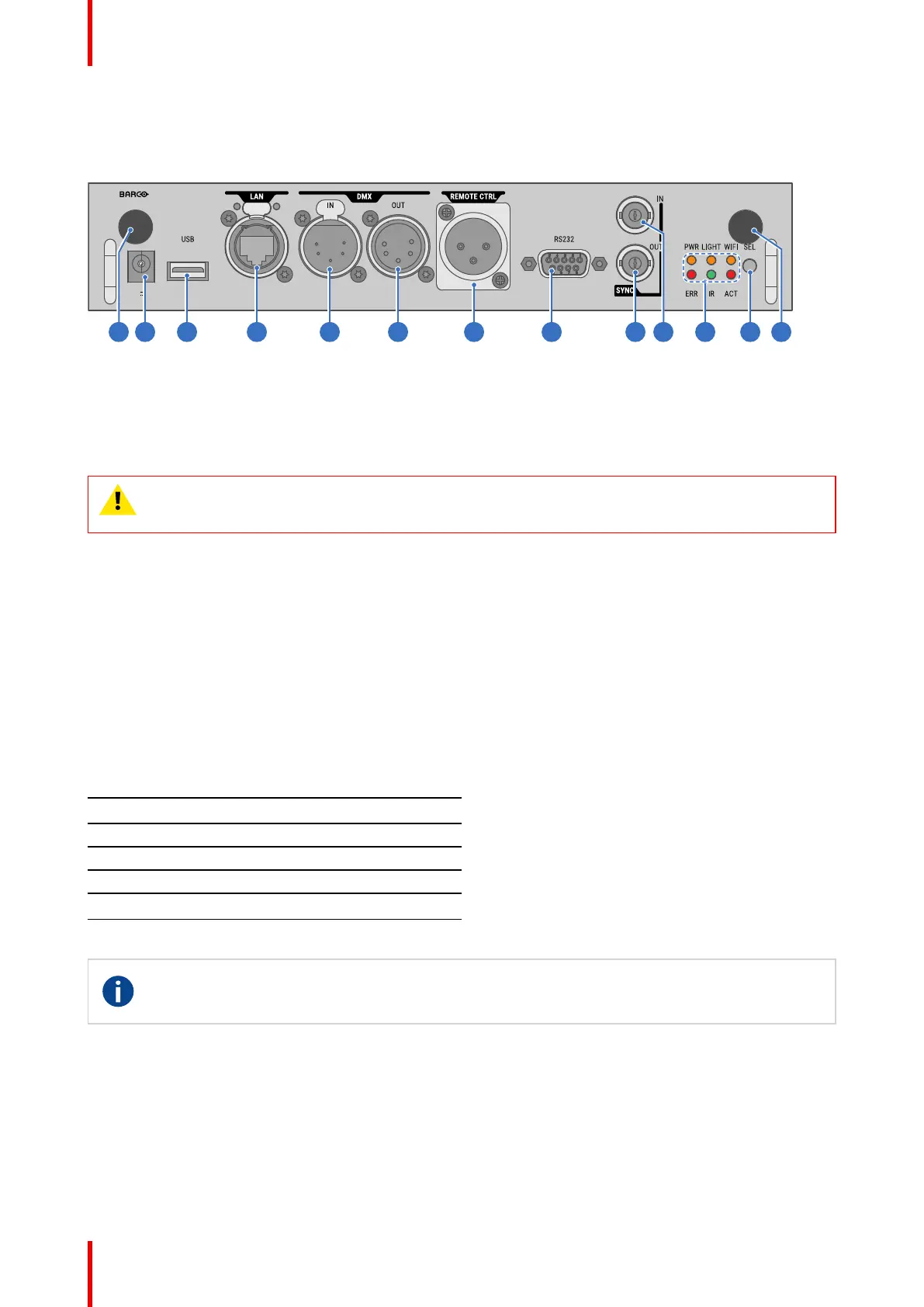

Image 4–3
1 WIFI antenna for wireless IP (optional)
2 12V 1A output
3 Firmware update / USB download log files
4 10/100 base-T for external control over IP and Art-Net
5 DMX interface input
6 DMX interface output
7 XLR input for wired projector control
8 RS232 for serial communication
9 Sync Out 3D
10 Sync In 3D
11 Status lights
12 IR receive sensor
13 GSM antenna input (optional)
CAUTION: Ethernet should only be connected to either the 10/100 base-T port (on the
communication panel) or the HDBaseT input (on the Quad Combo Input Mk II). Using both at the
same time will lead to undefined behavior.
12 V output
12 V output, maximum 1 A, available when projector is not in stand by.
DMX interface
DMX is used as communication bus between different devices in the light technic. Each device has an input
and an output, so that the bus can be looped between the different devices. According the standard a five wire
cable with XLR connector is used.
You can use the DMX input port to connect a DMX device (DMX console) to the projector. This way you can
control the projector from that DMX device (console). The DMX output port can be connected with the next
device in the loop.
DMX
Pin
Description
1 Earth
2 Cold
3 Hot
4 Return - (or not used)
5 Return + (or not used)
DMX
DMX-512 Lighting protocol over RS-485 interface. Carries information of 512 channels from a
lighting controller to lighting devices. Standardized by USITT.
RS232/RS422 input
The communication interface of the UDX series projector supports RS232 and RS422 serial communication
on two different types of input connectors, a Sub-D connector and an USB connector acting as RS input when
connected to an USB input of a PC.
You can use the RS232/RS422 input to connect a local PC to your UDX series projector. By this way you can
configure and control your projector from your local PC.
