How to use the XLR connector
1. Remove the XLR cover by pulling it backwards.

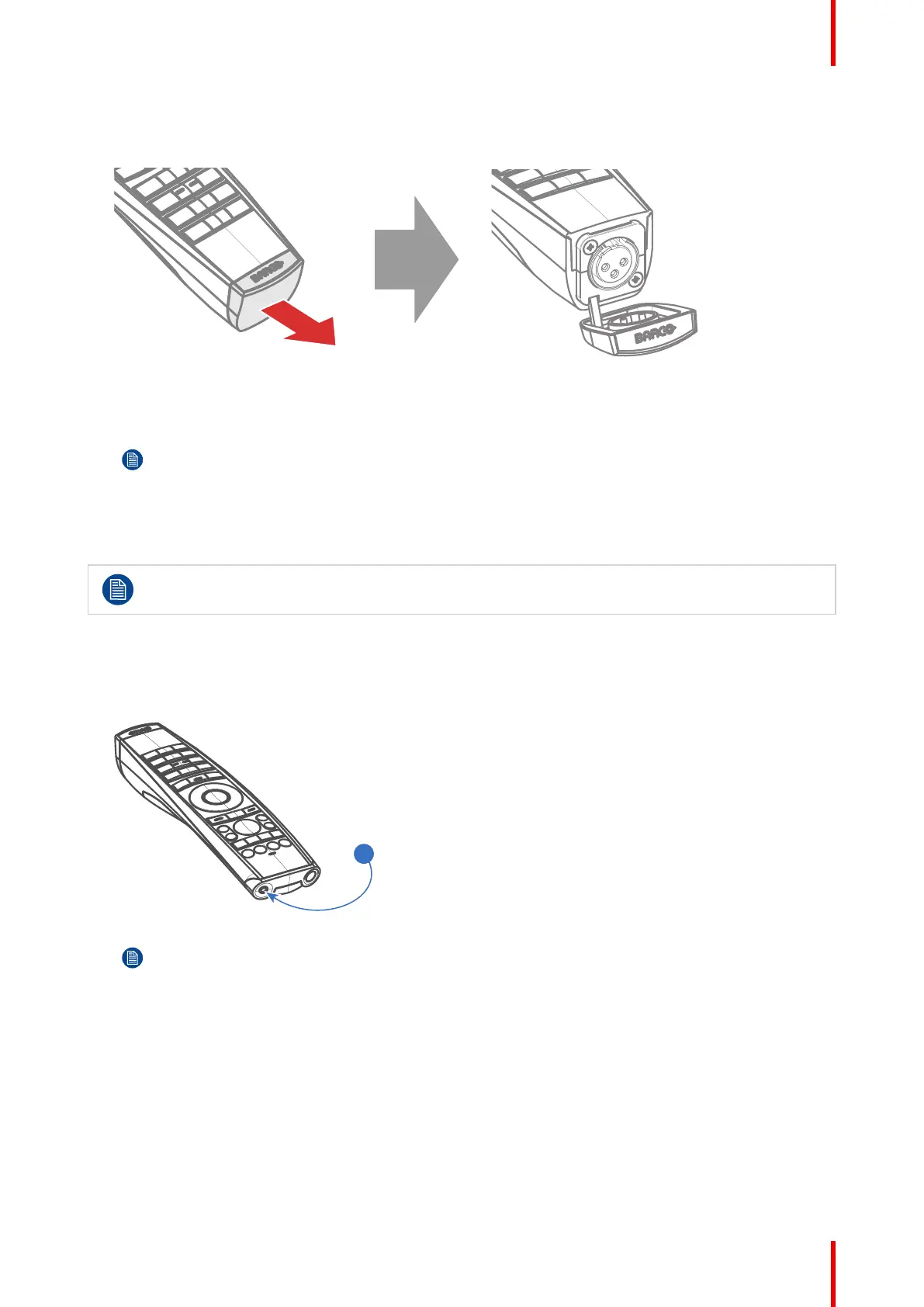

Image 3–8
2. Connect a cable with XLR plug into the XLR connector of the RCU.
3. Connect the other end of the cable with the XLR input of the projector.
Note: While the XLR cable is connected, the IR beam of the RCU is switched off.
3.10 Using the mini-jack connector of the RCU
Connecting a cable with the mini-jack connector will reset the broadcast address of the RCU to its
default value '0'.
How to use the mini-jack connector
1. Connect a cable with the mini-jack connector (reference 2 Image 3–9) of the RCU.
2. Connect the other end of the cable with the mini-jack input of the projector.
Image 3–9
Note: While the mini-jack cable is connected, the IR beam of the RCU is switched off.
3.11 Pulse RCU, silicone protection sleeve
(optional)
Introduction
Barco offers a silicone form fitting protection sleeve for the Pulse RCU. The silicone material keeps it
comfortably, non slip and soft touch. All buttons and holes remain accessible. The sleeve is quick and easy
installed. For ordering information see Barco website.
Pulse Remote Control Unit
