R5906112 /15 UDX130
10.3.3 Wireless IP address set up
When can the wireless IP address be used?
When the optional WiFi module has been installed on the projector, you can configure the projector in such a
way it can access the network via WiFi instead of a LAN cable.
For more information on how to install the WiFi module, please refer to the installation manual.
How to connect to a wireless network?
1. In the main menu, select Settings → Communication → WiFi.

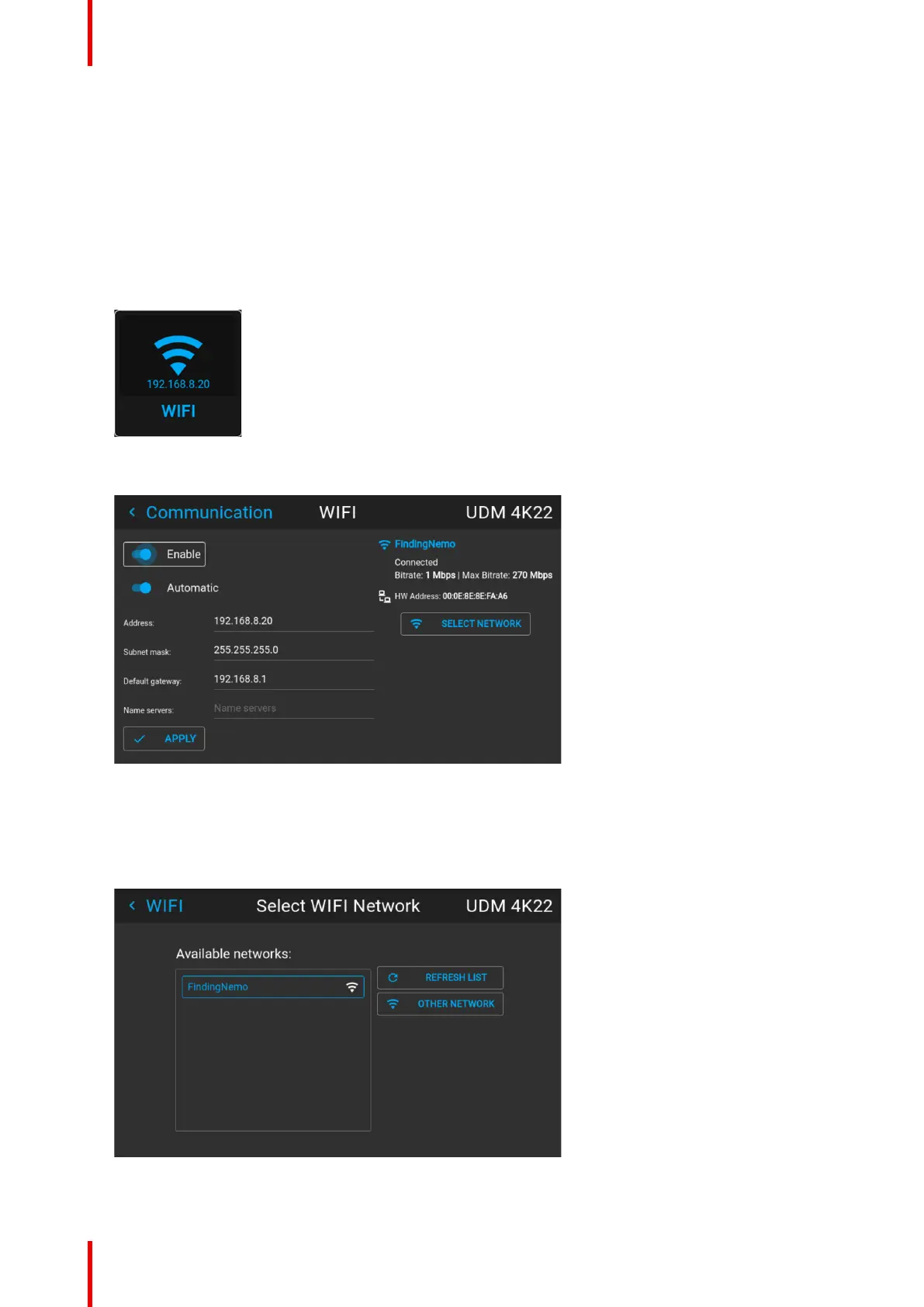

Image 10–14 Communication menu, WiFi
The WiFi menu is displayed.
Image 10–15 Example of the WiFi menu
2. Make sure the Enable slider is set to the right to enable the WiFi module. The color of the slider becomes
blue.
3. Make sure the Automatic slider is set to the right to automatically assign an IP address.
4. Use the Select Network button to select the desired network from the available list.
Image 10–16 Example of the available networks list.
