Remark concerning the Mk I and Mk II inputs boards
The Mk I input board miss functionality that has been implemented on the Mk II input board. These missing
features include:
• Loop-through functionality
• 12G SDI support
• Network connectivity on HDBaseT inputs
The projector is now standard equipped with the Mk II input board. For details and specifications see chapter
“Pulse Quad Combo input Mk II”, page 45.
Visual difference between the Mk I and Mk II input boards
There is one real visual aid to tell the two variants apart. There are visual markings added on the Mk II input
board, marking which connector supports 12G and which only supports 3G.
SEL
SEL
SEL
SEL
SDI IN SDI IN/OUT
SYNC
A
SYNC
B
SYNC
C
SYNC
D
1

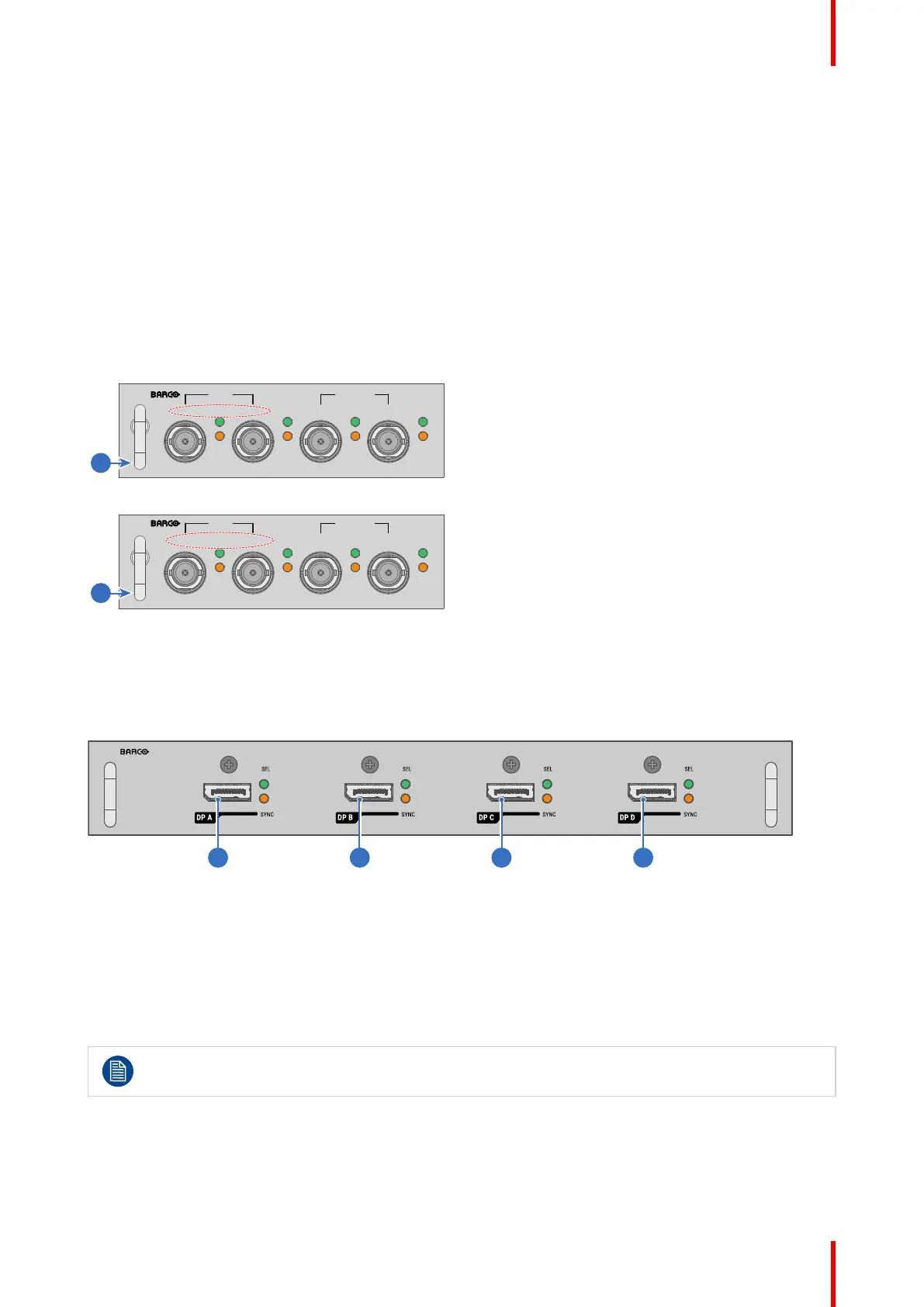

Image 4–7 Quad Combo Input Mk I board, without markings above the SDI inputs
C D
SEL
SEL
SEL
SEL
SDI IN SDI IN/OUT
A B
SYNC SYNC SYNC SYNC
3G/12G
3G
3G
3G
2
Image 4–8 Quad Combo Input Mk II board, with 3G/12G markings above the SDI inputs/outputs.
4.8 Pulse Quad DP 1.2 input
Quad DP 1.2 input
Image 4–9
1 Quad DisplayPort channel A input
2 Quad DisplayPort channel B input
3 Quad DisplayPort channel C input
4 Quad DisplayPort channel D input
LED behavior
• The SYNC LED lit up ORANGE when valid input sync is detected.
• The SEL LED lit up GREEN when the input is selected.
For specifications about the supported inputs for DisplayPort 1.2 see chapter “Specifications”, page
175.
