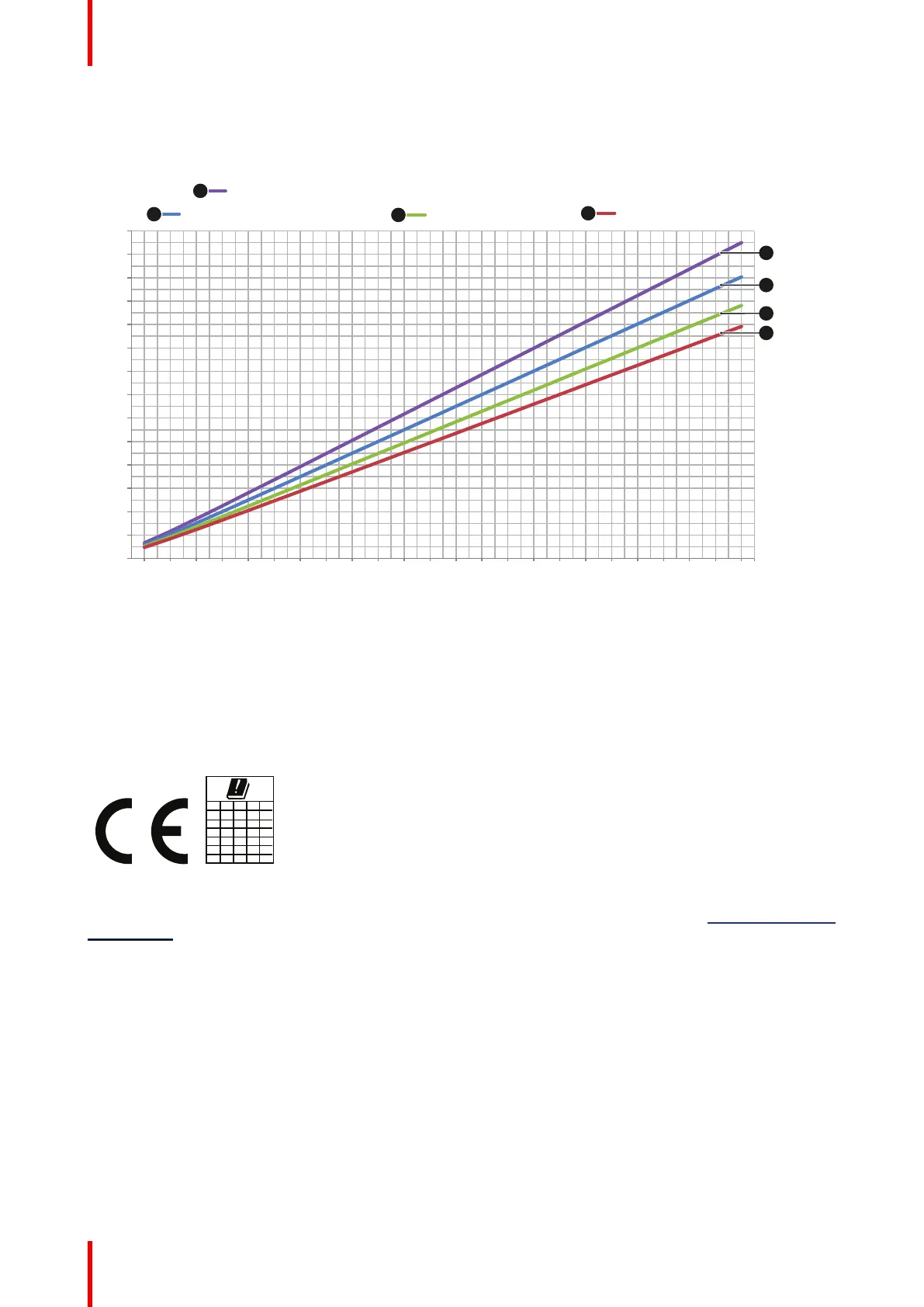

1.7 HD in function of modifying optics
Hazard Distance
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
0,5
1
1,5
2
2,5
3
3,5
4
4,5
5
5,5
6
6,5
7
7,5
8
8,5
9
9,5
10
10,5
11
11,5
12
Hazard Distance (HD) [m]
Throw Ra!o (TR)
UDX 4K40, UDX W40, UDX U40, UDX U45 LC
UDX 4K32, UDX W32, UDX U32
UDX 4K26, UDX W26
UDX 4K22, UDX W22
1
2
4
3
4
2
1
1
2
3
4
Image 1–5
HD Hazard Distance
TR Throw Ratio
1.8 Radio equipment (optional)
CE Conformity
UKNITR
ROPT SI SKSE
LULT NO PLNL
ISHU LI LVIT
ESEL FR HRFI
DKCZ EE IEDE
BEAT CH CYBG
This device may be equipped with WiFi & GSM modules for Pulse Input &
Communication unit, which are fit for use in the European Union countries,
EFTA and Turkey.
This device is restricted to indoor use only when operating in the 5150 to
5250 MHz frequency range.
Hereby, Barco declares that the radio equipment type UDX is in compliance with Directive 2014/53/EU. The
full text of the EU declaration of conformity is available at the following internet address: https://www. barco.
com/support
Safety information

Barco UDX Specifications

General

Brand	Barco
Model	UDX
Category	Projector
Language	English
