4.9 Pulse SFP input
The Barco SFP Input Board has been designed and tested to work alongside the Barco SFP Output
Board.
However, it is possible that the SFP Input board can also work with other third-party devices that
support 12G over fiber. Due to the many third-party options available on the market, the input board
could not be tested for every option available.
Overview SFP input
The SFP Input board is used to connect 12G SDI over fiber. The SFP input is delivered without any connector.
It is up to the customer to buy the necessary connectors, transceivers and cables. These parts can be
mounted on the indicated places on the front panel of the board.
SEL
SYNC
Opt A
Opt B SFP A SFP B
SEL
SYNC
1 2
3

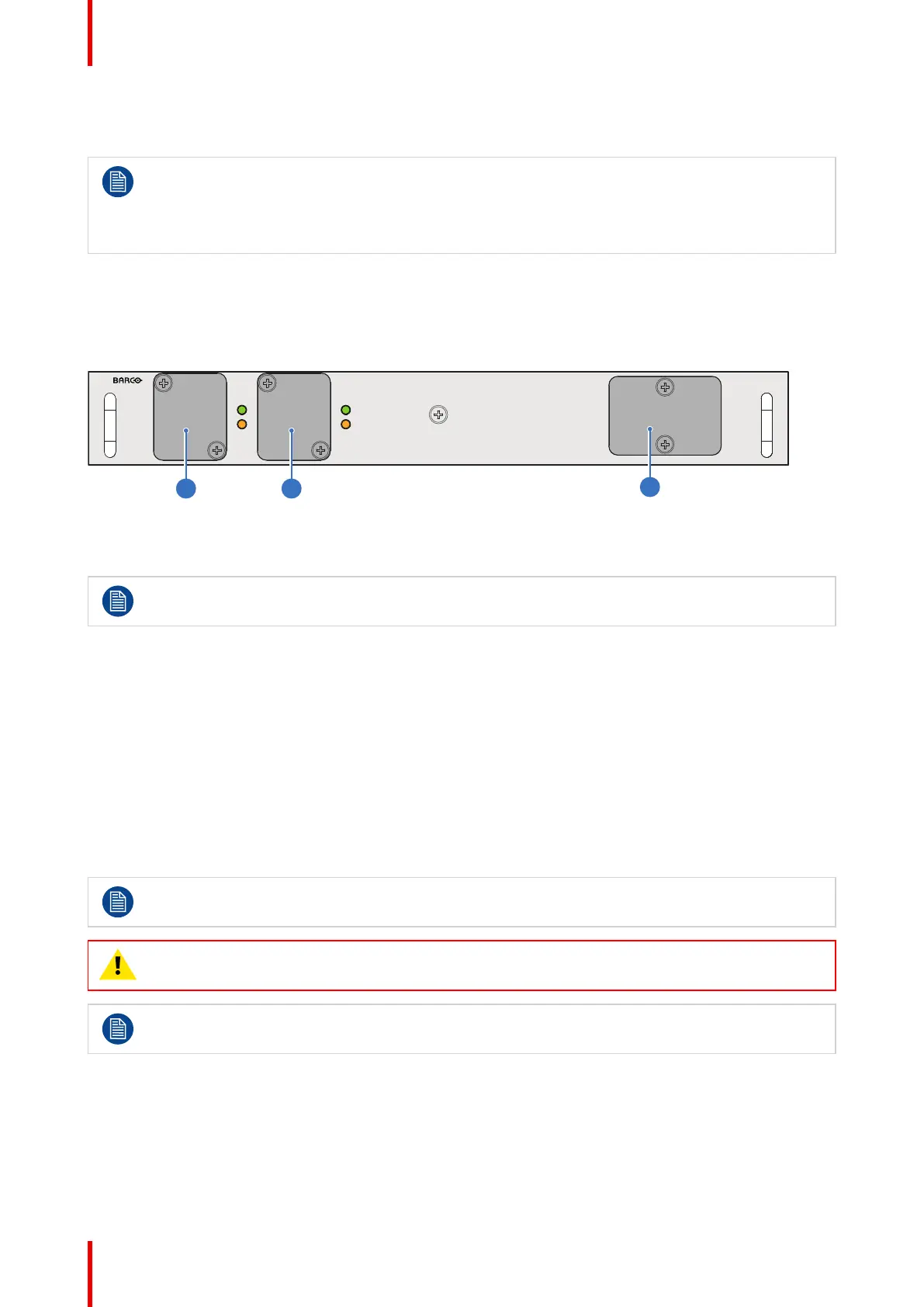

Image 4–10
1 Neutrik Duo optical connector or Neutrik Quad optical connector
2 Neutrik Duo optical connector or Neutrik Quad optical connector
3 2x12G SDI/10GE transceiver
For specifications about the supported inputs for SFP see chapter “Specifications”, page 175.
LED behavior
• The SYNC LED lit up ORANGE when valid input sync is detected.
• The SEL LED lit up GREEN when the input is selected.
Use cases
The SFP can be configured as follows:
1. SFP+ transceiver + Fiber connection (integrated or separated)
2. Neutrik OpticalCon Duo + SFP+ transceiver + internal fiber
3. Neutrik OpticalCon Quad + SFP+ transceiver + internal fiber
4. Loop-through mode
See projector installation manual for detailed instructions on how to install/configure the SFP input.
WARNING: Only by Barco trained and qualified technicians are allowed to install the SFP input.
Optical Tranceiver to comply with Laser Class 1, IEC60825–1: 2014
