3.3.2 Peculiarities of clutch installation, dismantling and adjustment
3.3.2.1 Clutch arrangement

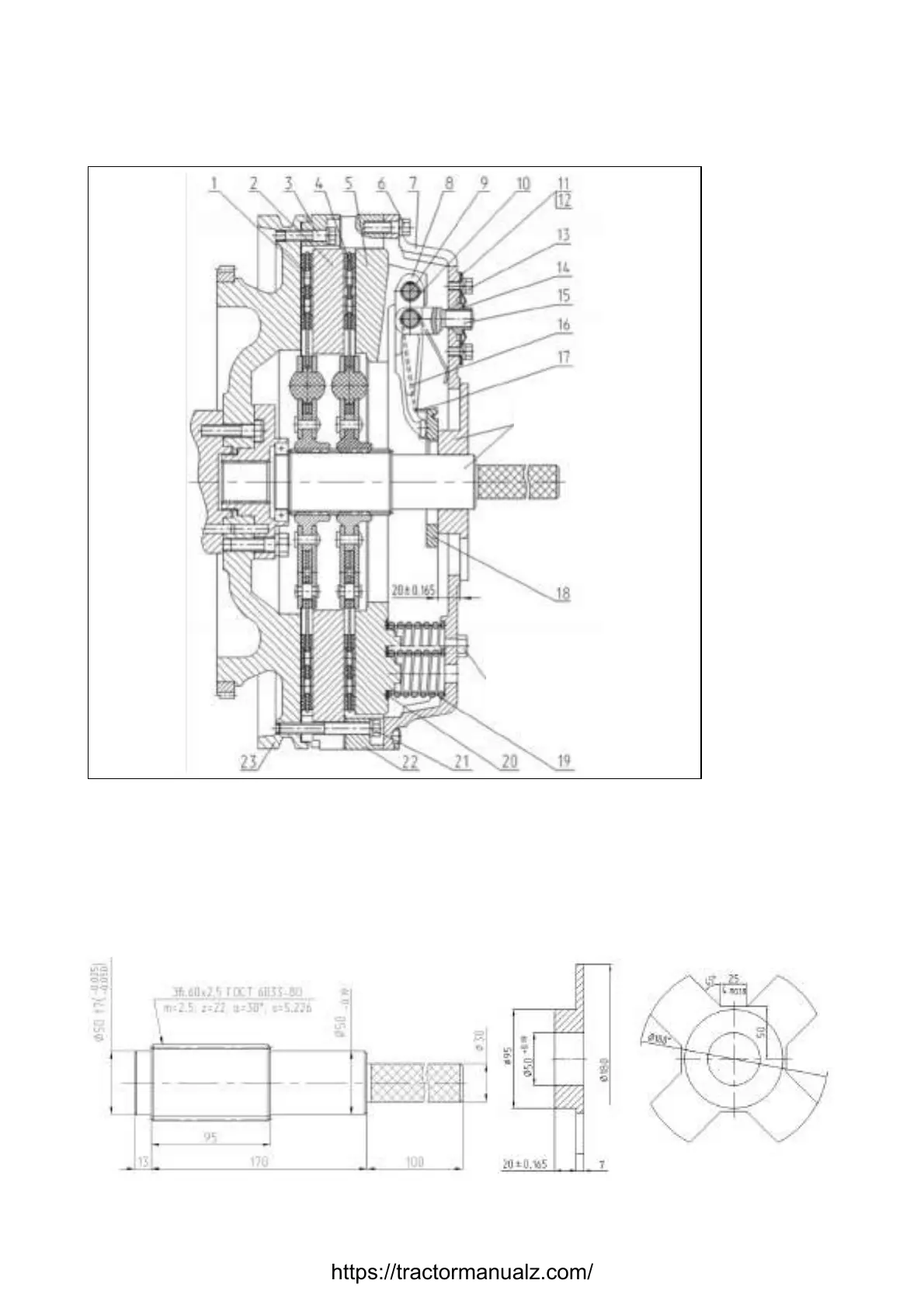

1 – driven disk; 2 – center plate; 3 – bolt; 4 – driven disk; 5 – pressure plate; 6 – bolt;
7 – back plate; 8 – release lever; 9 – release lever axis; 10 – rollers; 11 – lock plate; 12 –
lock plate; 13 – bolt; 14 – adjusting nut; 15 – fork; 16 – supporting spring; 17 – hinge; 18 –
rest of release levers; 19 – pressure spring; 20 – heat-insulating washers; 21 – bolt; 22 –
spacer; 23 – flywheel.
Figure 3.3.2 – Installation, dismantling and adjustment of clutch release levers
Figure 3.3.3 – Workholder
Workholder
4 manufacturing
bolts M12x65
