3522.5-0000010 РЭ
60
To turn off the “dampening” mode press the button 10. The annunciator of “dampen-
ing” deactivation will go out, and the RLL will return to its top position. Move the retainer 8
to its initial position.
ATTENTION: THE “DAMPENING” MODE IS ACTIVE ONLY THE HANDLE 7 IS IN
THE “UPLIFT” POSITION!
ATTENTION: DURING FIELD WORKS (TILLAGE, CULTIVATION) THE “DAMPEN-
ING” MODE SHALL BE TURNED OFF!
2.14.3 Remote buttons of RLL control system
Remote buttons of RLL control are used as a rule for coupling agricultural imple-
ments and machines to the rear lift linkage.
Uplift and lowering of the rear lift linkage with the remote buttons on rear wheel
fenders can be carried out at different control modes – the handles 1, 2, 3, 4, 7 (figure
2.14.1) can be left in any position, as the system of control from inside the cab is hereby
blocked.
To lift the RLL up, press any of the buttons 4 (figure 2.14.2) and hold it depressed.
To lower the RLL, press any of the buttons 3 and hold it depressed.
For safety's sake the control with the remote buttons is performed under interruption
of work. Pressing the uplift button 4 (lowering button 3) and holding it depressed lifts up
(lowers) the RLL during 5 sec., then it stops. For further uplifting (lowering) it is necessary
to press the corresponding button and hold it depressed once again!
Then after the implement has been detached, activation and work on HLL is per-
formed in accordance with clause 2.14.2.
WARNING: WHEN USING THE REMOTE BUTTONS OF RLL CONTROL DO NOT
STAND BETWEEN THE TRACTROR AND ATTACHED IMPLEMENT! TO PREVENT
ACCIDENTS IT IS FORBIDDEN TO USE BUTTONS OF MECHANICAL SHIFTING OF
ELECTRIC VALVES OF REGULATOR EHR23-LS 7 (FIGURE 2.14.2)!

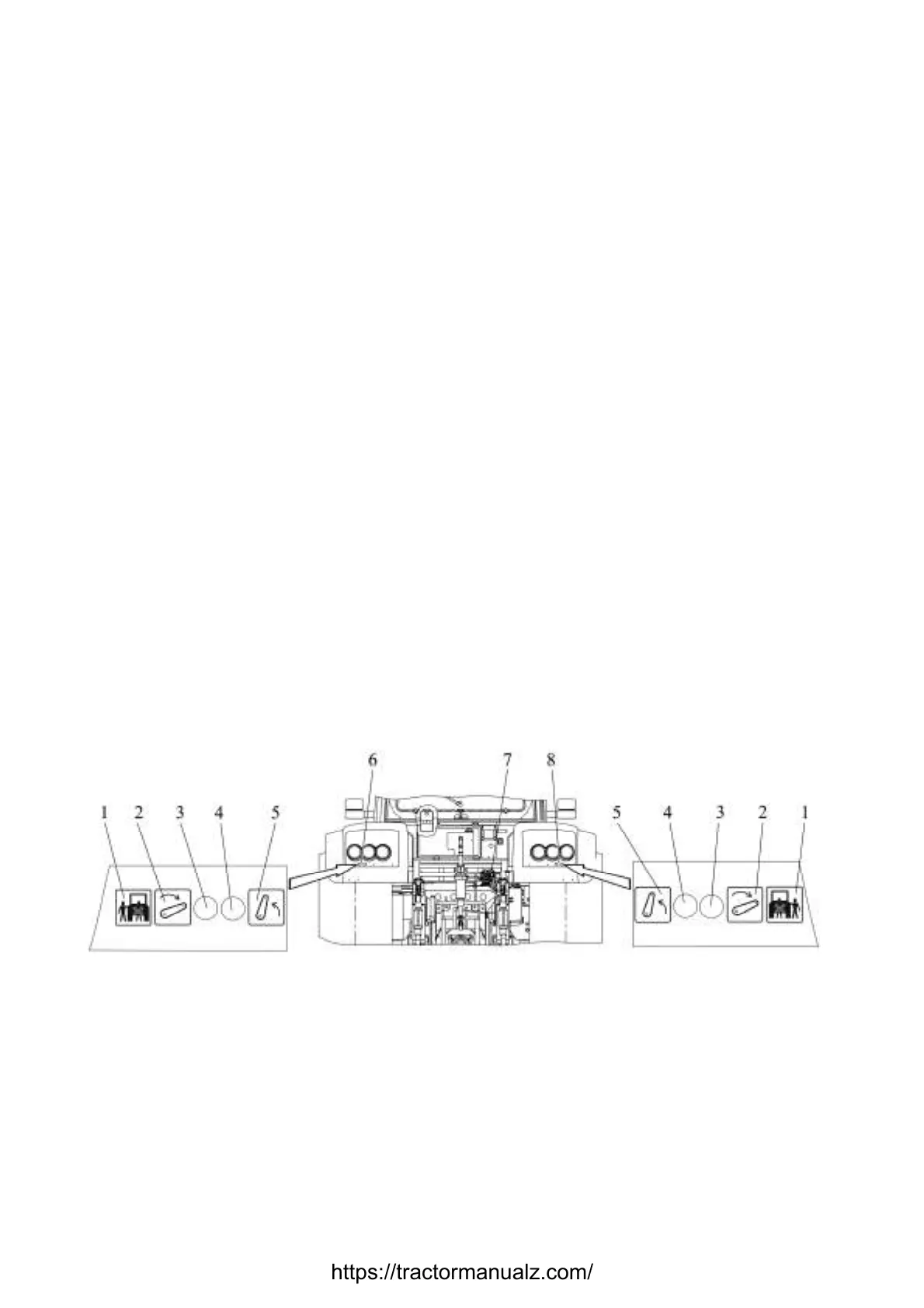

1 – instruction shield on safety rules; 2, 5 – instruction shield of RLL control dia-
gram; 3 – RLL lowering button; 4 – RLL uplift button; 6 – left remote RLL control panel; 7 –
regulator EHR23-LS; 8– right remote RLL control panel.
Figure 2.14.2 – RLL control with remote buttons
