3.22 All-purpose drawbar hitch
Drawbar hitch of lift type consist of bracket 6 with guides (figure 3.22.1) and of actu-
ating devices: drawbar and towing yoke with coupling automation.
The drawbar is intended for operation with heavy mounted and semi-mounted machines. It
consists of rod 3 and pivot 2 with splint pin. The front end of the rod is fixed in bracket 6
and its middle part leans against crossbeam 4, the rod 3 is fixed by clip 5 against axial
movement on crossbeam.
The towing yoke 1 is intended for operation with heavy mounted and semi-mounted ma-
chines, trailers and semi-trailers. The yoke is mounted by means of own pins in guides of
bracket 6, taking place useful for mounting of implements and corresponding to the height
of trailer or semitrailer eye.

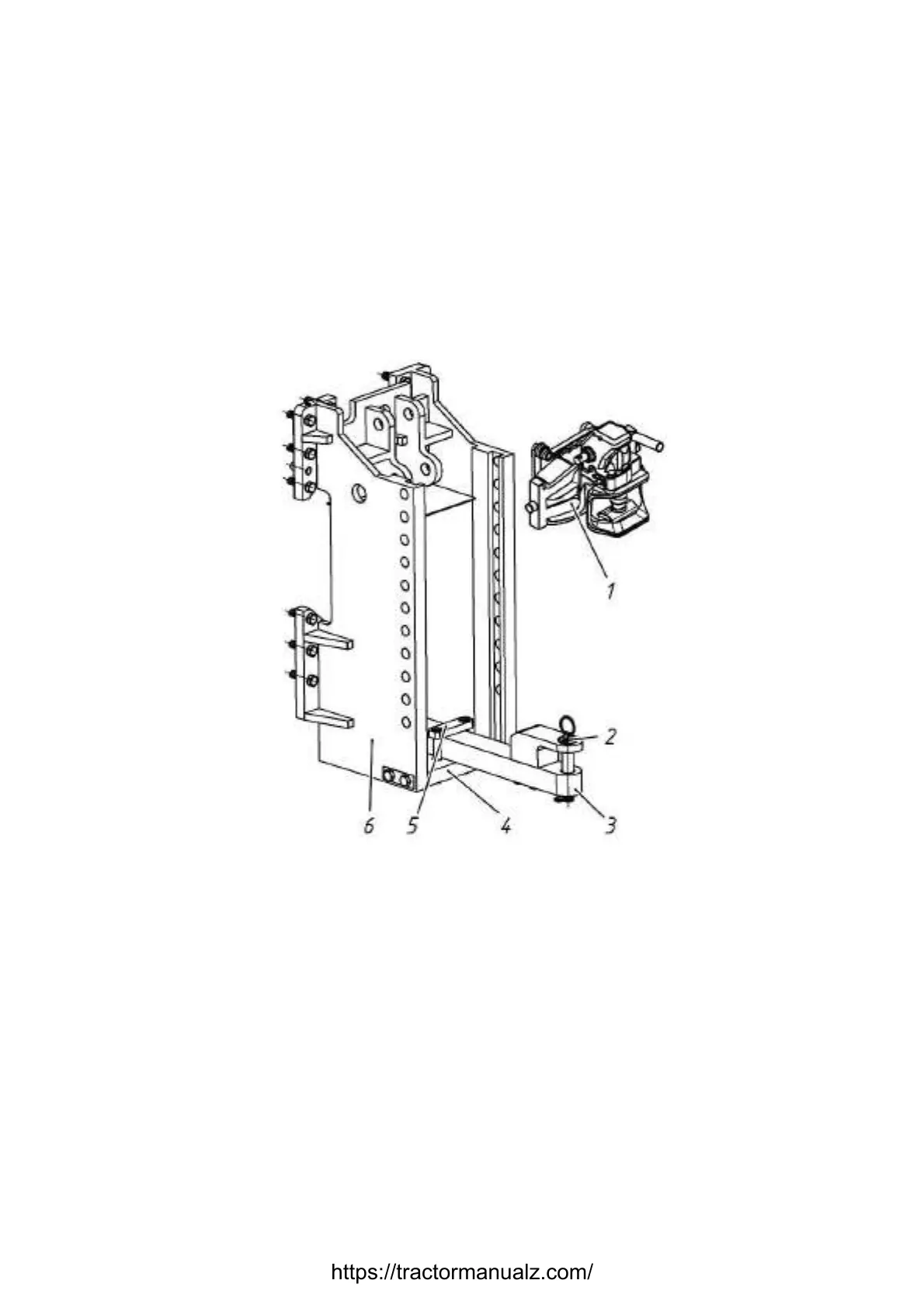

1 – towing yoke; 2 – pivot; 3 – rod; 4 – crossbeam; 5 – clip; 6 –
bracket.
Figure 3.22.1 – All-purpose drawbar hitch
