Belarus 3522.5 User Manual

3522.5-0000010 РЭ
196
3.23.4 Installation and adjustment of speed sensors and
rear PTO RPM sensor
3.23.4.1 Speed sensor installation
For installation of speed sensor (either right or left) the following shall be done:
- put toothed disc 8 (figure 3.23.4) with tooth against the hole in semi axle tube 7;
- it is necessary to put necessary quantity of shim washers 6 according to the table
3.6 to ensure free play S;
- put “mass” wire 3 of the sensor 2 under any of screws 4;
- seal the screws 4 with sealing paste and tighten with the moment 10…15Nm.

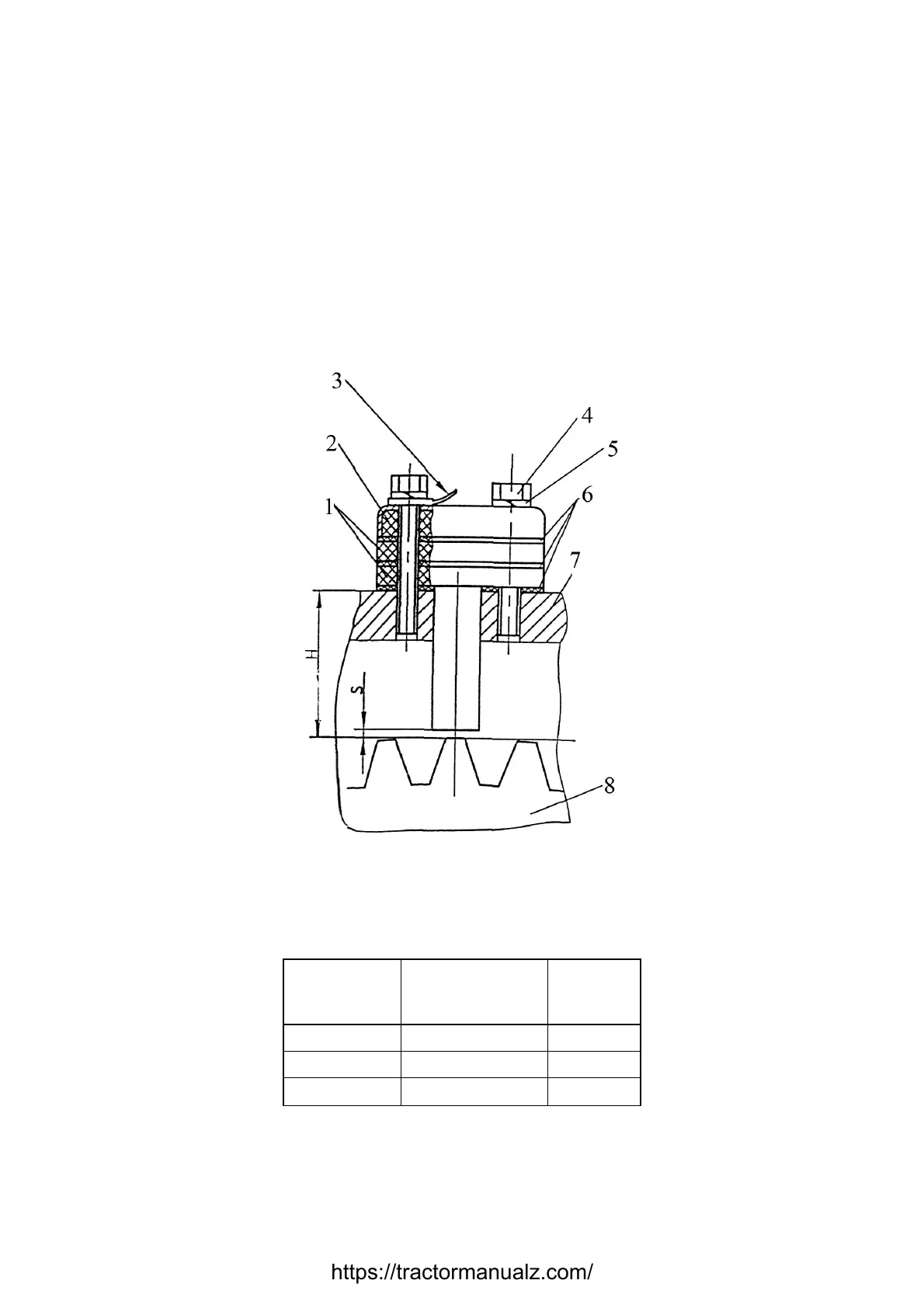

1 – gasket; 2 – speed sensor; 3 –“mass” wire; 4 – screw М8; 5 – washer; 6 – shim
washer in thickness of 1 mm; 7 – semi axle tube; 8 – toothed disc.
Figure 3.23.4 – Installation of speed sensor
Table 3.6 – Speed sensor installation
H, mm
Q-ty of
gaskets 6
(figure 3.23.4)
S, mm
53,5 – 54,8 3 1,5 – 2,8
54,9 – 55,8 2 1,9 – 2,8
55,9 – 56,5 1 1,9 – 2,8
