ATTENTION: CAST IRON RINGS 5 (FIGURE 3.6.5) SHALL BE MOUNTED (IN
ORDER TO PREVENT RING DAMAGE DURING ADJUSTMENTS) AFTER ALL AD-
JUSTMENTS HAVE BEEN CARRIED OUT WITH THE FINAL MOUNTING OF THE
COVER 4!

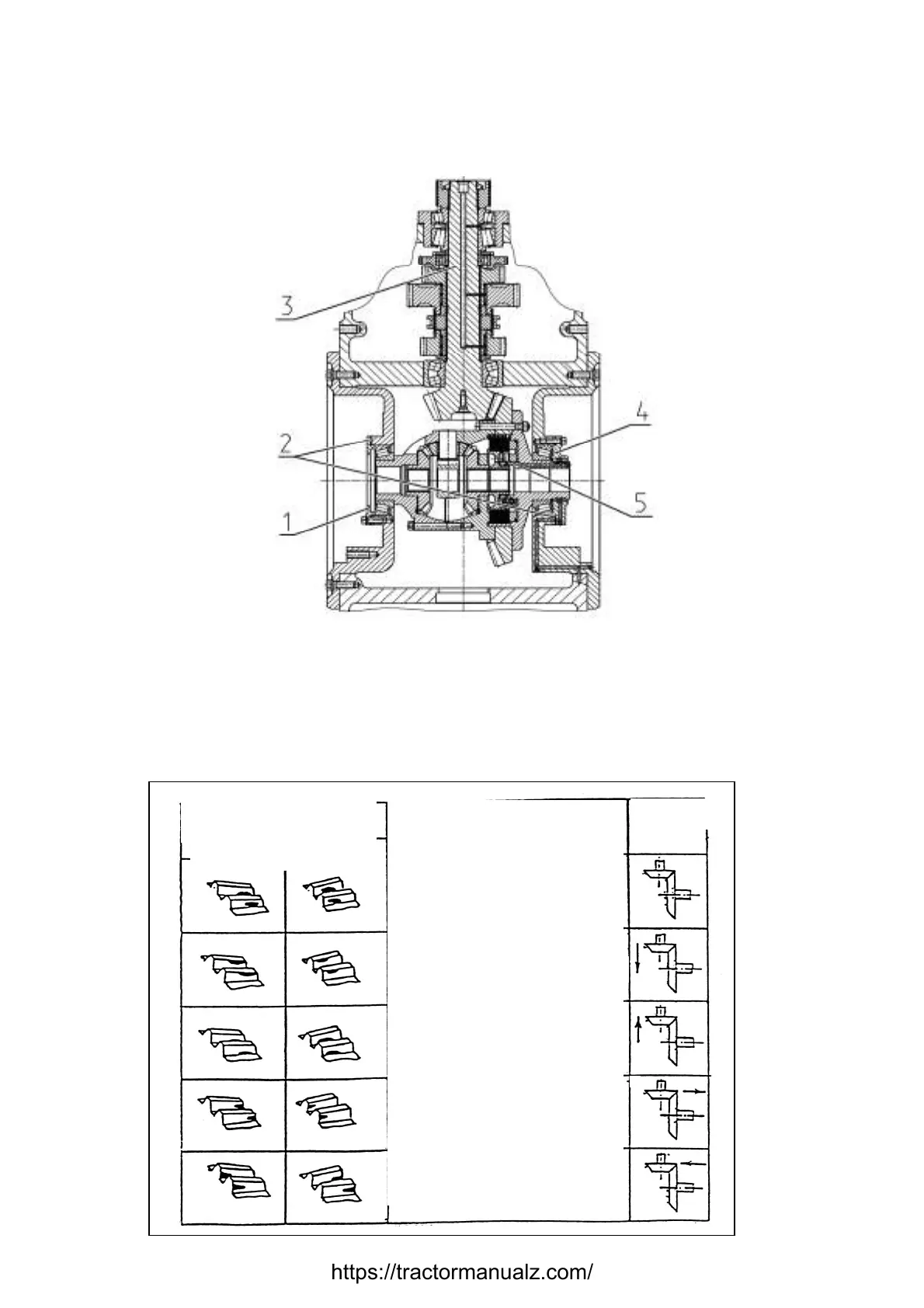

1 – left cover; 2 – shims; 3 – plate ready-assembled with drive master pair; 4 – right
cover; 5 – cast iron rings.
Figure 3.6.5 – Differential and plate ready-assembled with drive gear of master pair
in rear axle body
3.6.8 Check of main drive gears for accuracy of engagement according to
contact pattern
POSITION OF CONTACT
PATTERN ON DRIVEN GEAR
Front motion Rear motion
WAY TO REACH CORRECT
GEAR ENGAGEMENT
__________________________
CORRECT GEAR ENGAGEMENT
WHEN CHECKED UNDER
SMALL LOAD
______________________________
MOVE THE DRIVE GEAR TO-
WARDS THE DRIVEN GEAR
_____________________________
MOVE THE DRIVE GEAR OFF
THE DRIVEN GEAR
_____________________________
MOVE THE DRIVEN GEAR OFF
THE DRIVE GEAR
_____________________________
MOVE THE DRIVEN GEAR TO-
WARDS THE DRIVE GEAR
SCHEME
